The original SMA cable was only 150 mm. The production version needed 500 mm because the antenna had to be moved outside the enclosure. The connector was still SMA, the impedance was still 50 ohms, and the cable looked identical from the outside.
The RF result was different.
Longer cable routing introduced more attenuation. The bending position changed. The final assembly also added mechanical stress near the connector termination.
This type of problem is common when an SMA extension cable is selected only by connector type and cable length.
An RF extension cable is part of the signal path. The connector interface, coaxial cable construction, frequency range, and assembly process all affect the final result.
How Does an SMA Extension Cable Expand RF Connection Distance?

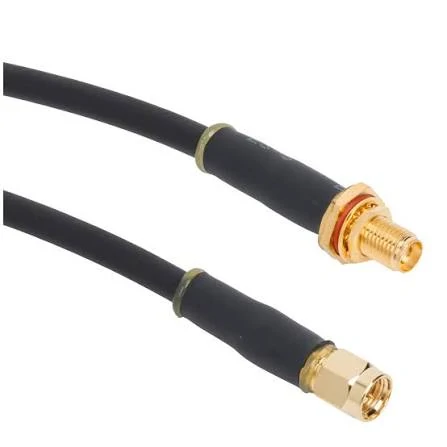

This image shows an SMA extension cable assembly featuring SMA connectors on both ends. The cable is commonly used for extending RF connections between antennas, wireless modules, and communication equipment while maintaining 50 ohm impedance matching.
An SMA extension cable is normally used when two RF interfaces are electrically compatible but physically separated.
The reason for adding an extension cable is often mechanical rather than electrical.
A wireless module may be mounted deep inside an enclosure while the antenna needs to be placed near the housing surface. A test fixture may require additional distance between the device and measurement instrument. A communication product may need the antenna moved away from noise sources or metal structures.
In these cases, replacing the PCB layout is usually unnecessary. The cable assembly provides a practical connection method.
Typical installation areas include:
| Application | Connection Example | Main Consideration |
| Wireless equipment | RF module to external antenna | Cable size and routing space |
| WiFi devices | Antenna port extension | Connector matching |
| GPS equipment | Module to antenna | Low loss requirement |
| RF test systems | Equipment port extension | Repeatable measurement |
| IoT products | Internal module to enclosure port | Compact installation |
However, adding cable length also changes the RF path.
A 100 mm cable and a 1000 mm cable may use the same SMA connector, but they do not introduce the same loss. At higher frequencies, the coaxial cable becomes a major factor in the complete assembly.
For example, RG316 cable is commonly selected for flexible RF wiring, while smaller diameter cables may be preferred where internal space is limited. When the cable becomes longer, low-loss coaxial options may become more suitable.
The connector does not determine the complete cable performance by itself.
Check where SMA extension cables are commonly installed
The actual installation environment often decides the cable specification.
A cable used inside a laboratory test setup may prioritize measurement stability. A cable installed inside a wireless product may prioritize bending flexibility and mechanical reliability.
Some common examples:
Antenna relocation
External antennas are often connected through an SMA antenna cable. The cable allows the antenna position to change without redesigning the RF module.
Embedded wireless devices
Compact products may use a U.FL to SMA cable to connect a PCB antenna interface with an external SMA connector.
RF test connections
Engineers often use SMA cable assemblies between instruments, fixtures, and devices under test. In these applications, connector quality and cable consistency become important because repeated mating is common.
Compare SMA Extension Cable With Other RF Cable Solutions
During sourcing, “SMA cable” can describe several different products. The application requirement determines which type is suitable.
| Cable Solution | Typical Use | Selection Focus |
| SMA Cable | Short RF connection | Interface compatibility |
| SMA Extension Cable | Increase connection distance | Length and attenuation |
| SMA Cable Assembly | Production integration | Connector and cable combination |
| Custom RF Cable | Special OEM requirements | Complete specification control |
A standard SMA cable may be enough for a short connection between two nearby RF ports.
An SMA extension cable is usually selected when equipment layout requires additional distance. The cable length becomes part of the RF design.
A custom SMA cable assembly is often specified when production quantity, connector orientation, cable routing, or testing requirements need to be controlled.
For procurement teams, a better RF cable inquiry includes the complete cable structure instead of only the connector name.
The second description gives the supplier enough information to evaluate the actual ap
How Do You Select the Correct SMA Extension Cable Connector Combination?

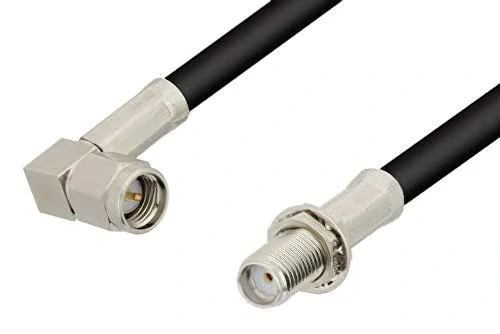

The image highlights the connector interface of an SMA extension cable. SMA male and female configurations are commonly selected according to equipment ports, antenna interfaces, and RF system requirements.
A customer drawing may show only two SMA interfaces and a cable length.
For a mechanical engineer, that information may look complete.
For an RF cable supplier, it is usually not enough.
The two connectors may have different genders, different mounting requirements, or different installation directions. The cable may need to pass through a narrow enclosure, connect to a bulkhead port, or work with an antenna installed at a fixed angle.
A small connector detail can affect the whole assembly.
Before producing an SMA extension cable, the supplier normally needs to confirm:
- Connector interface on both ends
- SMA male or SMA female
- Standard SMA or RP-SMA
- Straight or right-angle structure
- Cable diameter requirement
- Installation environment
A cable assembly is not selected only by the connector name printed on the drawing.
Confirm the SMA Male and SMA Female Interface Before Ordering
The most common mistake in RF cable purchasing is assuming that all SMA connectors follow the same connection method.
The SMA family uses male and female interfaces, but the actual application depends on the equipment port.
For example:
A wireless device may have an SMA female bulkhead connector on the enclosure.
The antenna may also use an SMA female connector.
A normal SMA male-to-female cable will not solve the connection problem directly. The cable configuration must be checked according to the actual mating interface.
This is why a supplier may ask for:
- Equipment connector photo
- Antenna model
- Mechanical drawing
- Existing cable sample
These details often save more time than adjusting the order after production starts.
Another point that should be confirmed is polarity.
Standard SMA and RP-SMA connectors can look almost identical. They are often used in WiFi and wireless networking equipment, but their center contact structure is different.
A cable that physically screws together may still be electrically incorrect.
Choose the Connector Configuration Based on the Installation
Connector combination is only one part of the selection process.
The direction of the connector often becomes important after the first prototype assembly.
A straight SMA connector is usually preferred when the cable exits directly from the port with enough clearance.
A right-angle SMA connector is often used when:
- The enclosure height is limited
- The cable needs immediate direction change
- The connector area is close to a mechanical wall
- The cable cannot make a large bending radius
A common production issue happens when a prototype uses a straight connector because it is easy to test on the bench.
During final assembly, the same cable may need to be folded inside a smaller housing. The bending force transfers to the connector termination area.
The cable still works electrically at first.
After repeated movement or vibration, problems may appear.
For this reason, connector orientation should be considered during the design stage rather than after the cable has already been produced.
Which SMA Cable Combination Fits Different RF Applications?
This RF cable assembly combines BNC and SMA connectors for signal conversion between different equipment interfaces. It is commonly used in RF testing, communication devices, and laboratory measurement systems.
Different applications require different SMA configurations.
The following table can be used when preparing a cable specification.
| Cable End Combination | Common Application | Notes |
| SMA Male to SMA Female | Equipment port extension | Common laboratory and antenna connection |
| SMA Male to SMA Male | Connecting two female ports | Often used with modules and adapters |
| SMA Female to SMA Female | Port conversion applications | Usually requires additional interface planning |
| Custom SMA Combination | OEM equipment | Confirm drawing or sample |
For a laboratory cable, the priority may be repeated mating reliability.
For an antenna cable inside a wireless product, the priority may be size, flexibility, and routing.
For production purchasing, the same connector combination can have different requirements depending on where it is installed.
Why Cable Length Should Be Considered Together With RF Loss
A longer cable solves a mechanical problem.
It may create an RF problem.
This is one of the most common changes between prototype and production.
During early testing, engineers often use a short cable because the equipment is placed on a bench.
After the product moves into an enclosure, the antenna position changes and the cable length increases.
The connection still works, but the RF margin may become smaller.
Cable length affects:
- Insertion loss
- Signal level at the antenna
- Test measurement accuracy
- System margin
The longer the cable, the more attention should be paid to cable attenuation.
Calculate the Additional Loss Before Increasing Cable Length
This is especially useful when the system contains several connection points.
For example, an antenna path may include:
- One SMA connector at the module
- One SMA extension cable
- One adapter
- One external antenna
The cable itself may not be the only source of loss.
Use a Cable Specification Instead of Only a Product Name
does not define enough information for production.
A clearer RF request could include:
| Item | Example Requirement |
| Connector A | SMA Male |
| Connector B | SMA Female |
| Cable Type | RG316 |
| Length | 500 mm |
| Impedance | 50Ω |
| Frequency | DC–6 GHz |
| Application | Antenna connection |
| Inspection | Continuity / VSWR if required |
This type of specification helps avoid substitutions.
A supplier may have several SMA cables that look similar externally, but the internal construction can be different.
The cable diameter, dielectric material, shielding structure, and termination process all influence the final assembly.
Do Not Select the Connector Separately From the Cable
An SMA connector and coaxial cable work as a complete assembly.
A connector designed for a larger cable diameter may not terminate correctly on a thin flexible cable.
Likewise, a small flexible cable may not be suitable for a long-distance RF path.
Common combinations include:
- RG316 with flexible SMA assemblies
- RG178 where smaller diameter is required
- Low-loss coaxial cable for longer transmission paths
The correct selection depends on the complete requirement:
Connector interface + Cable type + Length + Frequency + Installation condition
That information is more useful than the connector model alone.
How Do RG316 and RG178 Cables Affect SMA Extension Cable Selection?

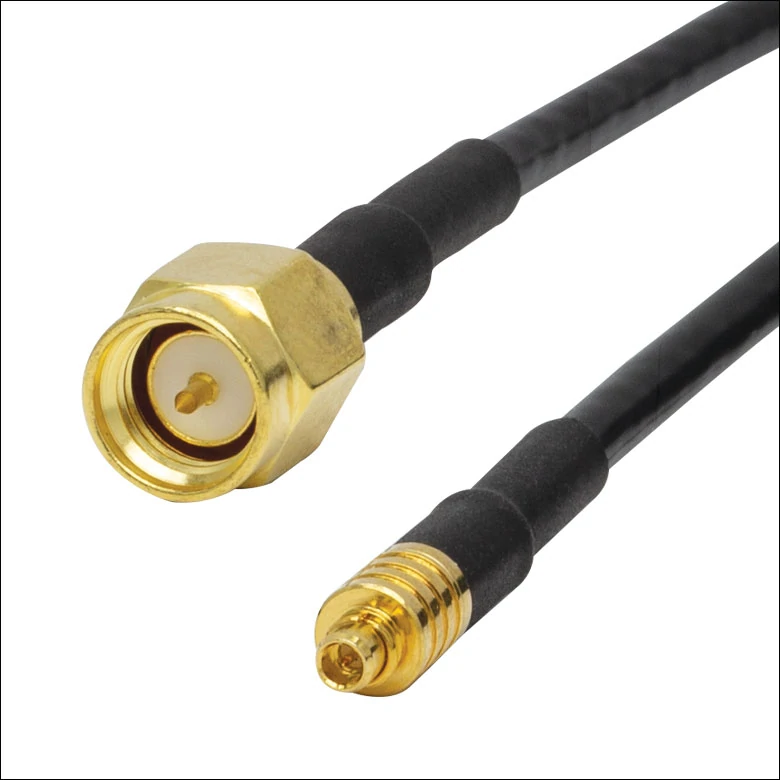

This image shows a flexible SMA cable assembly designed for space-limited RF applications. Cable flexibility helps simplify routing inside wireless equipment, IoT devices, and antenna systems.
A cable sample can look correct and still create problems after it enters production.
This situation appears frequently in RF cable replacement projects.
The customer sends an existing assembly. The connector type is confirmed, the overall length is measured, and the replacement appears to match the original cable.
During assembly, the difference usually comes from the coaxial cable itself.
The cable diameter may change the routing method. The shielding structure may affect the RF path. The attenuation value may become noticeable when the cable gets longer.
For an SMA extension cable, the connector is only one part of the assembly.
The cable selection affects:
- installation space
- bending condition
- signal loss
- production consistency
Where RG316 Fits in Real RF Cable Assembly Work
RG316 is one of the commonly used cables for flexible SMA assemblies.
A typical reason for selecting RG316 is not simply frequency capability. In many projects, the deciding factor is how the cable needs to be installed.
Inside a device, the cable may need to pass around:
- PCB edges
- mounting screws
- shielding covers
- battery compartments
A flexible cable can make assembly easier and reduce stress around the SMA termination point.
For example, an antenna cable inside a wireless device may need several routing changes before reaching the enclosure opening. A rigid cable could push against the connector after installation.
RG316 is often used in these situations.
However, flexibility does not solve every RF requirement.
When the cable length increases, the attenuation value becomes part of the design consideration. A cable that works well for a short jumper may not provide enough margin for a longer antenna connection.
Why Some Compact Devices Choose RG178 Instead
Space limitations often decide the cable type before electrical specifications do.
In compact wireless equipment, the available routing space may be only a few millimeters.
RG178 provides a smaller cable diameter compared with many standard coaxial options.
Typical applications include:
- miniature wireless modules
- compact GPS equipment
- embedded communication products
- internal antenna connections
The advantage is mechanical.
The engineer can place the cable in areas where a larger coaxial cable cannot fit.
The trade-off appears when the cable length increases.
A smaller cable construction may introduce higher attenuation. If the cable runs several hundred millimeters or more, the engineer normally needs to check whether the RF margin is still acceptable.
The smallest cable is not always the best cable.
When Should a Low Loss RF Cable Replace a Flexible Cable?
The right-angle SMA cable assembly is suitable for compact RF devices where straight connectors may require additional clearance. It helps reduce cable bending stress and improves installation flexibility.
A prototype often uses a short cable.
The final product usually does not.
During early testing, the antenna may sit close to the RF module. After mechanical design is completed, the antenna position may move because of enclosure structure, heat sources, or user interface requirements.
The cable becomes longer.
This is where cable loss needs to be reviewed.
A longer SMA cable assembly can introduce additional attenuation. The impact depends on:
- frequency range
- cable construction
- total length
- system signal margin
For a short internal connection, RG316 may be practical.
For a longer RF path, a low loss coaxial cable may provide better results.
The decision is normally made after looking at the complete RF path rather than the connector specification alone.
Cable Comparison for SMA Extension Applications
| Cable Option | Common Reason for Use | Typical Situation |
| RG316 | Flexible installation | Internal equipment wiring |
| RG178 | Small diameter | Space-limited devices |
| Mini coax | Compact routing | Wireless modules |
| Low loss coax | Lower attenuation | Longer cable distance |
A purchasing team may see several cables that use the same SMA connector.
The difference is inside the cable.
The supplier needs to know where the assembly will be installed before recommending a replacement.
Why 50Ω Matching Matters in SMA Cable Assemblies
An RF cable is not only a physical connection.
The electrical characteristics of the complete path affect signal transmission.
Most SMA RF applications use 50Ω impedance systems.
If the impedance relationship changes, the system may experience:
- higher reflection
- increased VSWR
- reduced signal efficiency
This is why replacing only one cable in an RF path requires checking the original application.
A cable that works in one system may not produce the same result in another system.
What Should Be Confirmed Before Ordering an SMA Extension Cable?
Many ordering problems come from incomplete descriptions.
does not define the assembly.
A production supplier usually needs:
| Item | Example |
| Connector A | SMA Male |
| Connector B | SMA Female |
| Cable Type | RG316 |
| Length | 500 mm |
| Impedance | 50Ω |
| Frequency | DC–6 GHz |
| Application | Antenna connection |
| Testing | VSWR check if required |
This information avoids unnecessary sample changes.
A connector drawing alone cannot describe the complete RF cable assembly.
How Are SMA Extension Cables Used With WiFi and RF Modules?
Wireless products frequently use cable assemblies because the antenna location is part of the mechanical design.
A PCB layout may remain unchanged while the antenna position needs adjustment.
The cable provides that flexibility.
Common examples include:
- WiFi routers
- industrial gateways
- GPS devices
- IoT terminals
U.FL to SMA Cable Applications
Compact RF modules often use miniature board connectors.
A U.FL to SMA cable connects the internal module interface with an external SMA antenna port.
Before production, confirm:
- U.FL orientation
- SMA gender
- cable length
- operating frequency
- installation route
A small connector mismatch can stop the entire assembly process.
SMA Extension Cable Shipment Inspection Points
Before shipment, the assembly should be checked according to the application requirement.
Typical inspection items:
| Item | Check Point |
| Connector | Interface and appearance |
| Cable | Type and length |
| Termination | Crimp or solder quality |
| Mechanical | Strain relief and pull condition |
| RF Test | VSWR or insertion loss when required |
Different customers may require different inspection levels.
A short internal jumper and a laboratory measurement cable should not use the same acceptance standard.
FAQ
Can RG316 and RG178 be replaced with each other?
Not directly. The replacement depends on cable diameter, installation space, frequency, and acceptable attenuation.
Does a longer SMA extension cable always create problems?
Not always. The result depends on cable type, operating frequency, and system margin.
Why can two SMA cables have different RF results?
Because the cable structure, termination process, and connector assembly can be different even when the connector interface is identical.
What information should be provided when ordering a custom SMA extension cable?
A supplier normally needs more than the connector name. A complete request should include connector combination, cable type, length, impedance, frequency range, application, and required inspection items. These details help prevent receiving a cable that fits mechanically but does not match the RF requirement.
