Omnidirectional Wi-Fi Antenna Selection and Coverage Optimization
Dec 16,2025
![{"type":"elementor","siteurl":"https://tejte.com/wp-json/","elements":[{"id":"a3119f1","elType":"widget","isInner":false,"isLocked":false,"settings":{"image":{"url":"https://tejte.com/wp-content/uploads/2025/12/outdoor-omni-antenna-field-deployment-overview.webp","id":40790,"size":"","alt":"Overview of outdoor omnidirectional antennas deployed long-term on rooftops, masts, and gateways.","source":"library"},"image_size":"full","caption_source":"custom","scroll_y":-80,"image_custom_dimension":{"width":"600","height":"600"},"caption":"Outdoor Omni Antenna Application Overview","link_to":"none","link":{"url":"","is_external":"","nofollow":"","custom_attributes":""},"open_lightbox":"default","align":"","align_tablet":"","align_mobile":"","width":{"unit":"%","size":"","sizes":[]},"width_tablet":{"unit":"%","size":"","sizes":[]},"width_mobile":{"unit":"%","size":"","sizes":[]},"space":{"unit":"%","size":"","sizes":[]},"space_tablet":{"unit":"%","size":"","sizes":[]},"space_mobile":{"unit":"%","size":"","sizes":[]},"height":{"unit":"px","size":"","sizes":[]},"height_tablet":{"unit":"px","size":"","sizes":[]},"height_mobile":{"unit":"px","size":"","sizes":[]},"object-fit":"","object-fit_tablet":"","object-fit_mobile":"","object-position":"center center","object-position_tablet":"","object-position_mobile":"","opacity":{"unit":"px","size":"","sizes":[]},"css_filters_css_filter":"","css_filters_blur":{"unit":"px","size":0,"sizes":[]},"css_filters_brightness":{"unit":"px","size":100,"sizes":[]},"css_filters_contrast":{"unit":"px","size":100,"sizes":[]},"css_filters_saturate":{"unit":"px","size":100,"sizes":[]},"css_filters_hue":{"unit":"px","size":0,"sizes":[]},"opacity_hover":{"unit":"px","size":"","sizes":[]},"css_filters_hover_css_filter":"","css_filters_hover_blur":{"unit":"px","size":0,"sizes":[]},"css_filters_hover_brightness":{"unit":"px","size":100,"sizes":[]},"css_filters_hover_contrast":{"unit":"px","size":100,"sizes":[]},"css_filters_hover_saturate":{"unit":"px","size":100,"sizes":[]},"css_filters_hover_hue":{"unit":"px","size":0,"sizes":[]},"background_hover_transition":{"unit":"px","size":"","sizes":[]},"hover_animation":"","image_border_border":"","image_border_width":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"image_border_width_tablet":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"image_border_width_mobile":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"image_border_color":"","image_border_radius":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"image_border_radius_tablet":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"image_border_radius_mobile":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"image_box_shadow_box_shadow_type":"","image_box_shadow_box_shadow":{"horizontal":0,"vertical":0,"blur":10,"spread":0,"color":"rgba(0,0,0,0.5)"},"caption_align":"","caption_align_tablet":"","caption_align_mobile":"","text_color":"","caption_background_color":"","caption_typography_typography":"","caption_typography_font_family":"","caption_typography_font_size":{"unit":"px","size":"","sizes":[]},"caption_typography_font_size_tablet":{"unit":"px","size":"","sizes":[]},"caption_typography_font_size_mobile":{"unit":"px","size":"","sizes":[]},"caption_typography_font_weight":"","caption_typography_text_transform":"","caption_typography_font_style":"","caption_typography_text_decoration":"","caption_typography_line_height":{"unit":"px","size":"","sizes":[]},"caption_typography_line_height_tablet":{"unit":"em","size":"","sizes":[]},"caption_typography_line_height_mobile":{"unit":"em","size":"","sizes":[]},"caption_typography_letter_spacing":{"unit":"px","size":"","sizes":[]},"caption_typography_letter_spacing_tablet":{"unit":"px","size":"","sizes":[]},"caption_typography_letter_spacing_mobile":{"unit":"px","size":"","sizes":[]},"caption_typography_word_spacing":{"unit":"px","size":"","sizes":[]},"caption_typography_word_spacing_tablet":{"unit":"em","size":"","sizes":[]},"caption_typography_word_spacing_mobile":{"unit":"em","size":"","sizes":[]},"caption_text_shadow_text_shadow_type":"","caption_text_shadow_text_shadow":{"horizontal":0,"vertical":0,"blur":10,"color":"rgba(0,0,0,0.3)"},"caption_space":{"unit":"px","size":"","sizes":[]},"caption_space_tablet":{"unit":"px","size":"","sizes":[]},"caption_space_mobile":{"unit":"px","size":"","sizes":[]},"_title":"","_margin":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_margin_tablet":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_margin_mobile":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_padding":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_padding_tablet":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_padding_mobile":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_element_width":"","_element_width_tablet":"","_element_width_mobile":"","_element_custom_width":{"unit":"%","size":"","sizes":[]},"_element_custom_width_tablet":{"unit":"px","size":"","sizes":[]},"_element_custom_width_mobile":{"unit":"px","size":"","sizes":[]},"_grid_column":"","_grid_column_tablet":"","_grid_column_mobile":"","_grid_column_custom":"","_grid_column_custom_tablet":"","_grid_column_custom_mobile":"","_grid_row":"","_grid_row_tablet":"","_grid_row_mobile":"","_grid_row_custom":"","_grid_row_custom_tablet":"","_grid_row_custom_mobile":"","_flex_align_self":"","_flex_align_self_tablet":"","_flex_align_self_mobile":"","_flex_order":"","_flex_order_tablet":"","_flex_order_mobile":"","_flex_order_custom":"","_flex_order_custom_tablet":"","_flex_order_custom_mobile":"","_flex_size":"","_flex_size_tablet":"","_flex_size_mobile":"","_flex_grow":1,"_flex_grow_tablet":"","_flex_grow_mobile":"","_flex_shrink":1,"_flex_shrink_tablet":"","_flex_shrink_mobile":"","_element_vertical_align":"","_element_vertical_align_tablet":"","_element_vertical_align_mobile":"","_position":"","_offset_orientation_h":"start","_offset_x":{"unit":"px","size":0,"sizes":[]},"_offset_x_tablet":{"unit":"px","size":"","sizes":[]},"_offset_x_mobile":{"unit":"px","size":"","sizes":[]},"_offset_x_end":{"unit":"px","size":0,"sizes":[]},"_offset_x_end_tablet":{"unit":"px","size":"","sizes":[]},"_offset_x_end_mobile":{"unit":"px","size":"","sizes":[]},"_offset_orientation_v":"start","_offset_y":{"unit":"px","size":0,"sizes":[]},"_offset_y_tablet":{"unit":"px","size":"","sizes":[]},"_offset_y_mobile":{"unit":"px","size":"","sizes":[]},"_offset_y_end":{"unit":"px","size":0,"sizes":[]},"_offset_y_end_tablet":{"unit":"px","size":"","sizes":[]},"_offset_y_end_mobile":{"unit":"px","size":"","sizes":[]},"_z_index":"","_z_index_tablet":"","_z_index_mobile":"","_element_id":"","_css_classes":"","e_display_conditions":"","_element_cache":"","element_parallax":"","scroll_x":0,"scroll_z":0,"scroll_smoothness":"30","wd_animation":"","wd_animation_duration":"normal","wd_animation_delay":100,"motion_fx_motion_fx_scrolling":"","motion_fx_translateY_effect":"","motion_fx_translateY_direction":"","motion_fx_translateY_speed":{"unit":"px","size":4,"sizes":[]},"motion_fx_translateY_affectedRange":{"unit":"%","size":"","sizes":{"start":0,"end":100}},"motion_fx_translateX_effect":"","motion_fx_translateX_direction":"","motion_fx_translateX_speed":{"unit":"px","size":4,"sizes":[]},"motion_fx_translateX_affectedRange":{"unit":"%","size":"","sizes":{"start":0,"end":100}},"motion_fx_opacity_effect":"","motion_fx_opacity_direction":"out-in","motion_fx_opacity_level":{"unit":"px","size":10,"sizes":[]},"motion_fx_opacity_range":{"unit":"%","size":"","sizes":{"start":20,"end":80}},"motion_fx_blur_effect":"","motion_fx_blur_direction":"out-in","motion_fx_blur_level":{"unit":"px","size":7,"sizes":[]},"motion_fx_blur_range":{"unit":"%","size":"","sizes":{"start":20,"end":80}},"motion_fx_rotateZ_effect":"","motion_fx_rotateZ_direction":"","motion_fx_rotateZ_speed":{"unit":"px","size":1,"sizes":[]},"motion_fx_rotateZ_affectedRange":{"unit":"%","size":"","sizes":{"start":0,"end":100}},"motion_fx_scale_effect":"","motion_fx_scale_direction":"out-in","motion_fx_scale_speed":{"unit":"px","size":4,"sizes":[]},"motion_fx_scale_range":{"unit":"%","size":"","sizes":{"start":20,"end":80}},"motion_fx_transform_origin_x":"center","motion_fx_transform_origin_y":"center","motion_fx_devices":["desktop","tablet","mobile"],"motion_fx_range":"","motion_fx_motion_fx_mouse":"","motion_fx_mouseTrack_effect":"","motion_fx_mouseTrack_direction":"","motion_fx_mouseTrack_speed":{"unit":"px","size":1,"sizes":[]},"motion_fx_tilt_effect":"","motion_fx_tilt_direction":"","motion_fx_tilt_speed":{"unit":"px","size":4,"sizes":[]},"handle_motion_fx_asset_loading":"","sticky":"","sticky_on":["desktop","tablet","mobile"],"sticky_offset":0,"sticky_offset_tablet":"","sticky_offset_mobile":"","sticky_effects_offset":0,"sticky_effects_offset_tablet":"","sticky_effects_offset_mobile":"","sticky_anchor_link_offset":0,"sticky_anchor_link_offset_tablet":"","sticky_anchor_link_offset_mobile":"","sticky_parent":"","_animation":"","_animation_tablet":"","_animation_mobile":"","animation_duration":"","_animation_delay":"","_transform_rotate_popover":"","_transform_rotateZ_effect":{"unit":"px","size":"","sizes":[]},"_transform_rotateZ_effect_tablet":{"unit":"deg","size":"","sizes":[]},"_transform_rotateZ_effect_mobile":{"unit":"deg","size":"","sizes":[]},"_transform_rotate_3d":"","_transform_rotateX_effect":{"unit":"px","size":"","sizes":[]},"_transform_rotateX_effect_tablet":{"unit":"deg","size":"","sizes":[]},"_transform_rotateX_effect_mobile":{"unit":"deg","size":"","sizes":[]},"_transform_rotateY_effect":{"unit":"px","size":"","sizes":[]},"_transform_rotateY_effect_tablet":{"unit":"deg","size":"","sizes":[]},"_transform_rotateY_effect_mobile":{"unit":"deg","size":"","sizes":[]},"_transform_perspective_effect":{"unit":"px","size":"","sizes":[]},"_transform_perspective_effect_tablet":{"unit":"px","size":"","sizes":[]},"_transform_perspective_effect_mobile":{"unit":"px","size":"","sizes":[]},"_transform_translate_popover":"","_transform_translateX_effect":{"unit":"px","size":"","sizes":[]},"_transform_translateX_effect_tablet":{"unit":"px","size":"","sizes":[]},"_transform_translateX_effect_mobile":{"unit":"px","size":"","sizes":[]},"_transform_translateY_effect":{"unit":"px","size":"","sizes":[]},"_transform_translateY_effect_tablet":{"unit":"px","size":"","sizes":[]},"_transform_translateY_effect_mobile":{"unit":"px","size":"","sizes":[]},"_transform_scale_popover":"","_transform_keep_proportions":"yes","_transform_scale_effect":{"unit":"px","size":"","sizes":[]},"_transform_scale_effect_tablet":{"unit":"px","size":"","sizes":[]},"_transform_scale_effect_mobile":{"unit":"px","size":"","sizes":[]},"_transform_scaleX_effect":{"unit":"px","size":"","sizes":[]},"_transform_scaleX_effect_tablet":{"unit":"px","size":"","sizes":[]},"_transform_scaleX_effect_mobile":{"unit":"px","size":"","sizes":[]},"_transform_scaleY_effect":{"unit":"px","size":"","sizes":[]},"_transform_scaleY_effect_tablet":{"unit":"px","size":"","sizes":[]},"_transform_scaleY_effect_mobile":{"unit":"px","size":"","sizes":[]},"_transform_skew_popover":"","_transform_skewX_effect":{"unit":"px","size":"","sizes":[]},"_transform_skewX_effect_tablet":{"unit":"deg","size":"","sizes":[]},"_transform_skewX_effect_mobile":{"unit":"deg","size":"","sizes":[]},"_transform_skewY_effect":{"unit":"px","size":"","sizes":[]},"_transform_skewY_effect_tablet":{"unit":"deg","size":"","sizes":[]},"_transform_skewY_effect_mobile":{"unit":"deg","size":"","sizes":[]},"_transform_flipX_effect":"","_transform_flipY_effect":"","_transform_rotate_popover_hover":"","_transform_rotateZ_effect_hover":{"unit":"px","size":"","sizes":[]},"_transform_rotateZ_effect_hover_tablet":{"unit":"deg","size":"","sizes":[]},"_transform_rotateZ_effect_hover_mobile":{"unit":"deg","size":"","sizes":[]},"_transform_rotate_3d_hover":"","_transform_rotateX_effect_hover":{"unit":"px","size":"","sizes":[]},"_transform_rotateX_effect_hover_tablet":{"unit":"deg","size":"","sizes":[]},"_transform_rotateX_effect_hover_mobile":{"unit":"deg","size":"","sizes":[]},"_transform_rotateY_effect_hover":{"unit":"px","size":"","sizes":[]},"_transform_rotateY_effect_hover_tablet":{"unit":"deg","size":"","sizes":[]},"_transform_rotateY_effect_hover_mobile":{"unit":"deg","size":"","sizes":[]},"_transform_perspective_effect_hover":{"unit":"px","size":"","sizes":[]},"_transform_perspective_effect_hover_tablet":{"unit":"px","size":"","sizes":[]},"_transform_perspective_effect_hover_mobile":{"unit":"px","size":"","sizes":[]},"_transform_translate_popover_hover":"","_transform_translateX_effect_hover":{"unit":"px","size":"","sizes":[]},"_transform_translateX_effect_hover_tablet":{"unit":"px","size":"","sizes":[]},"_transform_translateX_effect_hover_mobile":{"unit":"px","size":"","sizes":[]},"_transform_translateY_effect_hover":{"unit":"px","size":"","sizes":[]},"_transform_translateY_effect_hover_tablet":{"unit":"px","size":"","sizes":[]},"_transform_translateY_effect_hover_mobile":{"unit":"px","size":"","sizes":[]},"_transform_scale_popover_hover":"","_transform_keep_proportions_hover":"yes","_transform_scale_effect_hover":{"unit":"px","size":"","sizes":[]},"_transform_scale_effect_hover_tablet":{"unit":"px","size":"","sizes":[]},"_transform_scale_effect_hover_mobile":{"unit":"px","size":"","sizes":[]},"_transform_scaleX_effect_hover":{"unit":"px","size":"","sizes":[]},"_transform_scaleX_effect_hover_tablet":{"unit":"px","size":"","sizes":[]},"_transform_scaleX_effect_hover_mobile":{"unit":"px","size":"","sizes":[]},"_transform_scaleY_effect_hover":{"unit":"px","size":"","sizes":[]},"_transform_scaleY_effect_hover_tablet":{"unit":"px","size":"","sizes":[]},"_transform_scaleY_effect_hover_mobile":{"unit":"px","size":"","sizes":[]},"_transform_skew_popover_hover":"","_transform_skewX_effect_hover":{"unit":"px","size":"","sizes":[]},"_transform_skewX_effect_hover_tablet":{"unit":"deg","size":"","sizes":[]},"_transform_skewX_effect_hover_mobile":{"unit":"deg","size":"","sizes":[]},"_transform_skewY_effect_hover":{"unit":"px","size":"","sizes":[]},"_transform_skewY_effect_hover_tablet":{"unit":"deg","size":"","sizes":[]},"_transform_skewY_effect_hover_mobile":{"unit":"deg","size":"","sizes":[]},"_transform_flipX_effect_hover":"","_transform_flipY_effect_hover":"","_transform_transition_hover":{"unit":"px","size":"","sizes":[]},"motion_fx_transform_x_anchor_point":"","motion_fx_transform_x_anchor_point_tablet":"","motion_fx_transform_x_anchor_point_mobile":"","motion_fx_transform_y_anchor_point":"","motion_fx_transform_y_anchor_point_tablet":"","motion_fx_transform_y_anchor_point_mobile":"","_background_background":"","_background_color":"","_background_color_stop":{"unit":"%","size":0,"sizes":[]},"_background_color_stop_tablet":{"unit":"%"},"_background_color_stop_mobile":{"unit":"%"},"_background_color_b":"#f2295b","_background_color_b_stop":{"unit":"%","size":100,"sizes":[]},"_background_color_b_stop_tablet":{"unit":"%"},"_background_color_b_stop_mobile":{"unit":"%"},"_background_gradient_type":"linear","_background_gradient_angle":{"unit":"deg","size":180,"sizes":[]},"_background_gradient_angle_tablet":{"unit":"deg"},"_background_gradient_angle_mobile":{"unit":"deg"},"_background_gradient_position":"center center","_background_gradient_position_tablet":"","_background_gradient_position_mobile":"","_background_image":{"url":"","id":"","size":""},"_background_image_tablet":{"url":"","id":"","size":""},"_background_image_mobile":{"url":"","id":"","size":""},"_background_position":"","_background_position_tablet":"","_background_position_mobile":"","_background_xpos":{"unit":"px","size":0,"sizes":[]},"_background_xpos_tablet":{"unit":"px","size":0,"sizes":[]},"_background_xpos_mobile":{"unit":"px","size":0,"sizes":[]},"_background_ypos":{"unit":"px","size":0,"sizes":[]},"_background_ypos_tablet":{"unit":"px","size":0,"sizes":[]},"_background_ypos_mobile":{"unit":"px","size":0,"sizes":[]},"_background_attachment":"","_background_repeat":"","_background_repeat_tablet":"","_background_repeat_mobile":"","_background_size":"","_background_size_tablet":"","_background_size_mobile":"","_background_bg_width":{"unit":"%","size":100,"sizes":[]},"_background_bg_width_tablet":{"unit":"px","size":"","sizes":[]},"_background_bg_width_mobile":{"unit":"px","size":"","sizes":[]},"_background_video_link":"","_background_video_start":"","_background_video_end":"","_background_play_once":"","_background_play_on_mobile":"","_background_privacy_mode":"","_background_video_fallback":{"url":"","id":"","size":""},"_background_slideshow_gallery":[],"_background_slideshow_loop":"yes","_background_slideshow_slide_duration":5000,"_background_slideshow_slide_transition":"fade","_background_slideshow_transition_duration":500,"_background_slideshow_background_size":"","_background_slideshow_background_size_tablet":"","_background_slideshow_background_size_mobile":"","_background_slideshow_background_position":"","_background_slideshow_background_position_tablet":"","_background_slideshow_background_position_mobile":"","_background_slideshow_lazyload":"","_background_slideshow_ken_burns":"","_background_slideshow_ken_burns_zoom_direction":"in","_background_hover_background":"","_background_hover_color":"","_background_hover_color_stop":{"unit":"%","size":0,"sizes":[]},"_background_hover_color_stop_tablet":{"unit":"%"},"_background_hover_color_stop_mobile":{"unit":"%"},"_background_hover_color_b":"#f2295b","_background_hover_color_b_stop":{"unit":"%","size":100,"sizes":[]},"_background_hover_color_b_stop_tablet":{"unit":"%"},"_background_hover_color_b_stop_mobile":{"unit":"%"},"_background_hover_gradient_type":"linear","_background_hover_gradient_angle":{"unit":"deg","size":180,"sizes":[]},"_background_hover_gradient_angle_tablet":{"unit":"deg"},"_background_hover_gradient_angle_mobile":{"unit":"deg"},"_background_hover_gradient_position":"center center","_background_hover_gradient_position_tablet":"","_background_hover_gradient_position_mobile":"","_background_hover_image":{"url":"","id":"","size":""},"_background_hover_image_tablet":{"url":"","id":"","size":""},"_background_hover_image_mobile":{"url":"","id":"","size":""},"_background_hover_position":"","_background_hover_position_tablet":"","_background_hover_position_mobile":"","_background_hover_xpos":{"unit":"px","size":0,"sizes":[]},"_background_hover_xpos_tablet":{"unit":"px","size":0,"sizes":[]},"_background_hover_xpos_mobile":{"unit":"px","size":0,"sizes":[]},"_background_hover_ypos":{"unit":"px","size":0,"sizes":[]},"_background_hover_ypos_tablet":{"unit":"px","size":0,"sizes":[]},"_background_hover_ypos_mobile":{"unit":"px","size":0,"sizes":[]},"_background_hover_attachment":"","_background_hover_repeat":"","_background_hover_repeat_tablet":"","_background_hover_repeat_mobile":"","_background_hover_size":"","_background_hover_size_tablet":"","_background_hover_size_mobile":"","_background_hover_bg_width":{"unit":"%","size":100,"sizes":[]},"_background_hover_bg_width_tablet":{"unit":"px","size":"","sizes":[]},"_background_hover_bg_width_mobile":{"unit":"px","size":"","sizes":[]},"_background_hover_video_link":"","_background_hover_video_start":"","_background_hover_video_end":"","_background_hover_play_once":"","_background_hover_play_on_mobile":"","_background_hover_privacy_mode":"","_background_hover_video_fallback":{"url":"","id":"","size":""},"_background_hover_slideshow_gallery":[],"_background_hover_slideshow_loop":"yes","_background_hover_slideshow_slide_duration":5000,"_background_hover_slideshow_slide_transition":"fade","_background_hover_slideshow_transition_duration":500,"_background_hover_slideshow_background_size":"","_background_hover_slideshow_background_size_tablet":"","_background_hover_slideshow_background_size_mobile":"","_background_hover_slideshow_background_position":"","_background_hover_slideshow_background_position_tablet":"","_background_hover_slideshow_background_position_mobile":"","_background_hover_slideshow_lazyload":"","_background_hover_slideshow_ken_burns":"","_background_hover_slideshow_ken_burns_zoom_direction":"in","_background_hover_transition":{"unit":"px","size":"","sizes":[]},"_border_border":"","_border_width":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_border_width_tablet":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_border_width_mobile":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_border_color":"","_border_radius":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_border_radius_tablet":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_border_radius_mobile":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_box_shadow_box_shadow_type":"","_box_shadow_box_shadow":{"horizontal":0,"vertical":0,"blur":10,"spread":0,"color":"rgba(0,0,0,0.5)"},"_box_shadow_box_shadow_position":" ","_border_hover_border":"","_border_hover_width":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_border_hover_width_tablet":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_border_hover_width_mobile":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_border_hover_color":"","_border_radius_hover":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_border_radius_hover_tablet":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_border_radius_hover_mobile":{"unit":"px","top":"","right":"","bottom":"","left":"","isLinked":true},"_box_shadow_hover_box_shadow_type":"","_box_shadow_hover_box_shadow":{"horizontal":0,"vertical":0,"blur":10,"spread":0,"color":"rgba(0,0,0,0.5)"},"_box_shadow_hover_box_shadow_position":" ","_border_hover_transition":{"unit":"px","size":"","sizes":[]},"_mask_switch":"","_mask_shape":"circle","_mask_image":{"url":"","id":"","size":""},"_mask_image_tablet":{"url":"","id":"","size":""},"_mask_image_mobile":{"url":"","id":"","size":""},"_mask_size":"contain","_mask_size_tablet":"","_mask_size_mobile":"","_mask_size_scale":{"unit":"%","size":100,"sizes":[]},"_mask_size_scale_tablet":{"unit":"px","size":"","sizes":[]},"_mask_size_scale_mobile":{"unit":"px","size":"","sizes":[]},"_mask_position":"center center","_mask_position_tablet":"","_mask_position_mobile":"","_mask_position_x":{"unit":"%","size":0,"sizes":[]},"_mask_position_x_tablet":{"unit":"px","size":"","sizes":[]},"_mask_position_x_mobile":{"unit":"px","size":"","sizes":[]},"_mask_position_y":{"unit":"%","size":0,"sizes":[]},"_mask_position_y_tablet":{"unit":"px","size":"","sizes":[]},"_mask_position_y_mobile":{"unit":"px","size":"","sizes":[]},"_mask_repeat":"no-repeat","_mask_repeat_tablet":"","_mask_repeat_mobile":"","hide_desktop":"","hide_tablet":"","hide_mobile":"","_attributes":"","custom_css":""},"defaultEditSettings":{"defaultEditRoute":"content"},"elements":[],"widgetType":"image","htmlCache":"\t\t\n\t\t\t\t\t\t\t\t\t\t\t\t\n\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\tOutdoor Omni Antenna Application Overview\n\t\t\t\t\t\t\t\t\t\t\n\t\t\t\t\t\t\t\t\t\n\t\t","editSettings":{"defaultEditRoute":"content","panel":{"activeTab":"content","activeSection":"section_image"}}}]}](https://tejte.com/wp-content/uploads/2025/12/wi-fi-antenna-practical-coverage-challenge.webp "{\"type\":\"elementor\",\"siteurl\":\"https://tejte.com/wp-json/\",\"elements\":[{\"id\":\"a3119f1\",\"elType\":\"widget\",\"isInner\":false,\"isLocked\":false,\"settings\":{\"image\":{\"url\":\"https://tejte.com/wp-content/uploads/2025/12/outdoor-omni-antenna-field-deployment-overview.webp\",\"id\":40790,\"size\":\"\",\"alt\":\"Overview of outdoor omnidirectional antennas deployed long-term on rooftops, masts, and gateways.\",\"source\":\"library\"},\"image_size\":\"full\",\"caption_source\":\"custom\",\"scroll_y\":-80,\"image_custom_dimension\":{\"width\":\"600\",\"height\":\"600\"},\"caption\":\"Outdoor Omni Antenna Application Overview\",\"link_to\":\"none\",\"link\":{\"url\":\"\",\"is_external\":\"\",\"nofollow\":\"\",\"custom_attributes\":\"\"},\"open_lightbox\":\"default\",\"align\":\"\",\"align_tablet\":\"\",\"align_mobile\":\"\",\"width\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":[]},\"width_tablet\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":[]},\"width_mobile\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":[]},\"space\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":[]},\"space_tablet\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":[]},\"space_mobile\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":[]},\"height\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"height_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"height_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"object-fit\":\"\",\"object-fit_tablet\":\"\",\"object-fit_mobile\":\"\",\"object-position\":\"center center\",\"object-position_tablet\":\"\",\"object-position_mobile\":\"\",\"opacity\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"css_filters_css_filter\":\"\",\"css_filters_blur\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"css_filters_brightness\":{\"unit\":\"px\",\"size\":100,\"sizes\":[]},\"css_filters_contrast\":{\"unit\":\"px\",\"size\":100,\"sizes\":[]},\"css_filters_saturate\":{\"unit\":\"px\",\"size\":100,\"sizes\":[]},\"css_filters_hue\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"opacity_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"css_filters_hover_css_filter\":\"\",\"css_filters_hover_blur\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"css_filters_hover_brightness\":{\"unit\":\"px\",\"size\":100,\"sizes\":[]},\"css_filters_hover_contrast\":{\"unit\":\"px\",\"size\":100,\"sizes\":[]},\"css_filters_hover_saturate\":{\"unit\":\"px\",\"size\":100,\"sizes\":[]},\"css_filters_hover_hue\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"background_hover_transition\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"hover_animation\":\"\",\"image_border_border\":\"\",\"image_border_width\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"image_border_width_tablet\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"image_border_width_mobile\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"image_border_color\":\"\",\"image_border_radius\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"image_border_radius_tablet\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"image_border_radius_mobile\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"image_box_shadow_box_shadow_type\":\"\",\"image_box_shadow_box_shadow\":{\"horizontal\":0,\"vertical\":0,\"blur\":10,\"spread\":0,\"color\":\"rgba(0,0,0,0.5)\"},\"caption_align\":\"\",\"caption_align_tablet\":\"\",\"caption_align_mobile\":\"\",\"text_color\":\"\",\"caption_background_color\":\"\",\"caption_typography_typography\":\"\",\"caption_typography_font_family\":\"\",\"caption_typography_font_size\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"caption_typography_font_size_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"caption_typography_font_size_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"caption_typography_font_weight\":\"\",\"caption_typography_text_transform\":\"\",\"caption_typography_font_style\":\"\",\"caption_typography_text_decoration\":\"\",\"caption_typography_line_height\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"caption_typography_line_height_tablet\":{\"unit\":\"em\",\"size\":\"\",\"sizes\":[]},\"caption_typography_line_height_mobile\":{\"unit\":\"em\",\"size\":\"\",\"sizes\":[]},\"caption_typography_letter_spacing\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"caption_typography_letter_spacing_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"caption_typography_letter_spacing_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"caption_typography_word_spacing\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"caption_typography_word_spacing_tablet\":{\"unit\":\"em\",\"size\":\"\",\"sizes\":[]},\"caption_typography_word_spacing_mobile\":{\"unit\":\"em\",\"size\":\"\",\"sizes\":[]},\"caption_text_shadow_text_shadow_type\":\"\",\"caption_text_shadow_text_shadow\":{\"horizontal\":0,\"vertical\":0,\"blur\":10,\"color\":\"rgba(0,0,0,0.3)\"},\"caption_space\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"caption_space_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"caption_space_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_title\":\"\",\"_margin\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_margin_tablet\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_margin_mobile\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_padding\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_padding_tablet\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_padding_mobile\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_element_width\":\"\",\"_element_width_tablet\":\"\",\"_element_width_mobile\":\"\",\"_element_custom_width\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":[]},\"_element_custom_width_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_element_custom_width_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_grid_column\":\"\",\"_grid_column_tablet\":\"\",\"_grid_column_mobile\":\"\",\"_grid_column_custom\":\"\",\"_grid_column_custom_tablet\":\"\",\"_grid_column_custom_mobile\":\"\",\"_grid_row\":\"\",\"_grid_row_tablet\":\"\",\"_grid_row_mobile\":\"\",\"_grid_row_custom\":\"\",\"_grid_row_custom_tablet\":\"\",\"_grid_row_custom_mobile\":\"\",\"_flex_align_self\":\"\",\"_flex_align_self_tablet\":\"\",\"_flex_align_self_mobile\":\"\",\"_flex_order\":\"\",\"_flex_order_tablet\":\"\",\"_flex_order_mobile\":\"\",\"_flex_order_custom\":\"\",\"_flex_order_custom_tablet\":\"\",\"_flex_order_custom_mobile\":\"\",\"_flex_size\":\"\",\"_flex_size_tablet\":\"\",\"_flex_size_mobile\":\"\",\"_flex_grow\":1,\"_flex_grow_tablet\":\"\",\"_flex_grow_mobile\":\"\",\"_flex_shrink\":1,\"_flex_shrink_tablet\":\"\",\"_flex_shrink_mobile\":\"\",\"_element_vertical_align\":\"\",\"_element_vertical_align_tablet\":\"\",\"_element_vertical_align_mobile\":\"\",\"_position\":\"\",\"_offset_orientation_h\":\"start\",\"_offset_x\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_offset_x_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_offset_x_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_offset_x_end\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_offset_x_end_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_offset_x_end_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_offset_orientation_v\":\"start\",\"_offset_y\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_offset_y_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_offset_y_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_offset_y_end\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_offset_y_end_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_offset_y_end_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_z_index\":\"\",\"_z_index_tablet\":\"\",\"_z_index_mobile\":\"\",\"_element_id\":\"\",\"_css_classes\":\"\",\"e_display_conditions\":\"\",\"_element_cache\":\"\",\"element_parallax\":\"\",\"scroll_x\":0,\"scroll_z\":0,\"scroll_smoothness\":\"30\",\"wd_animation\":\"\",\"wd_animation_duration\":\"normal\",\"wd_animation_delay\":100,\"motion_fx_motion_fx_scrolling\":\"\",\"motion_fx_translateY_effect\":\"\",\"motion_fx_translateY_direction\":\"\",\"motion_fx_translateY_speed\":{\"unit\":\"px\",\"size\":4,\"sizes\":[]},\"motion_fx_translateY_affectedRange\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":{\"start\":0,\"end\":100}},\"motion_fx_translateX_effect\":\"\",\"motion_fx_translateX_direction\":\"\",\"motion_fx_translateX_speed\":{\"unit\":\"px\",\"size\":4,\"sizes\":[]},\"motion_fx_translateX_affectedRange\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":{\"start\":0,\"end\":100}},\"motion_fx_opacity_effect\":\"\",\"motion_fx_opacity_direction\":\"out-in\",\"motion_fx_opacity_level\":{\"unit\":\"px\",\"size\":10,\"sizes\":[]},\"motion_fx_opacity_range\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":{\"start\":20,\"end\":80}},\"motion_fx_blur_effect\":\"\",\"motion_fx_blur_direction\":\"out-in\",\"motion_fx_blur_level\":{\"unit\":\"px\",\"size\":7,\"sizes\":[]},\"motion_fx_blur_range\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":{\"start\":20,\"end\":80}},\"motion_fx_rotateZ_effect\":\"\",\"motion_fx_rotateZ_direction\":\"\",\"motion_fx_rotateZ_speed\":{\"unit\":\"px\",\"size\":1,\"sizes\":[]},\"motion_fx_rotateZ_affectedRange\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":{\"start\":0,\"end\":100}},\"motion_fx_scale_effect\":\"\",\"motion_fx_scale_direction\":\"out-in\",\"motion_fx_scale_speed\":{\"unit\":\"px\",\"size\":4,\"sizes\":[]},\"motion_fx_scale_range\":{\"unit\":\"%\",\"size\":\"\",\"sizes\":{\"start\":20,\"end\":80}},\"motion_fx_transform_origin_x\":\"center\",\"motion_fx_transform_origin_y\":\"center\",\"motion_fx_devices\":[\"desktop\",\"tablet\",\"mobile\"],\"motion_fx_range\":\"\",\"motion_fx_motion_fx_mouse\":\"\",\"motion_fx_mouseTrack_effect\":\"\",\"motion_fx_mouseTrack_direction\":\"\",\"motion_fx_mouseTrack_speed\":{\"unit\":\"px\",\"size\":1,\"sizes\":[]},\"motion_fx_tilt_effect\":\"\",\"motion_fx_tilt_direction\":\"\",\"motion_fx_tilt_speed\":{\"unit\":\"px\",\"size\":4,\"sizes\":[]},\"handle_motion_fx_asset_loading\":\"\",\"sticky\":\"\",\"sticky_on\":[\"desktop\",\"tablet\",\"mobile\"],\"sticky_offset\":0,\"sticky_offset_tablet\":\"\",\"sticky_offset_mobile\":\"\",\"sticky_effects_offset\":0,\"sticky_effects_offset_tablet\":\"\",\"sticky_effects_offset_mobile\":\"\",\"sticky_anchor_link_offset\":0,\"sticky_anchor_link_offset_tablet\":\"\",\"sticky_anchor_link_offset_mobile\":\"\",\"sticky_parent\":\"\",\"_animation\":\"\",\"_animation_tablet\":\"\",\"_animation_mobile\":\"\",\"animation_duration\":\"\",\"_animation_delay\":\"\",\"_transform_rotate_popover\":\"\",\"_transform_rotateZ_effect\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateZ_effect_tablet\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateZ_effect_mobile\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_rotate_3d\":\"\",\"_transform_rotateX_effect\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateX_effect_tablet\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateX_effect_mobile\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateY_effect\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateY_effect_tablet\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateY_effect_mobile\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_perspective_effect\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_perspective_effect_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_perspective_effect_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translate_popover\":\"\",\"_transform_translateX_effect\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translateX_effect_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translateX_effect_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translateY_effect\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translateY_effect_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translateY_effect_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scale_popover\":\"\",\"_transform_keep_proportions\":\"yes\",\"_transform_scale_effect\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scale_effect_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scale_effect_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleX_effect\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleX_effect_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleX_effect_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleY_effect\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleY_effect_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleY_effect_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_skew_popover\":\"\",\"_transform_skewX_effect\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_skewX_effect_tablet\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_skewX_effect_mobile\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_skewY_effect\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_skewY_effect_tablet\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_skewY_effect_mobile\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_flipX_effect\":\"\",\"_transform_flipY_effect\":\"\",\"_transform_rotate_popover_hover\":\"\",\"_transform_rotateZ_effect_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateZ_effect_hover_tablet\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateZ_effect_hover_mobile\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_rotate_3d_hover\":\"\",\"_transform_rotateX_effect_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateX_effect_hover_tablet\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateX_effect_hover_mobile\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateY_effect_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateY_effect_hover_tablet\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_rotateY_effect_hover_mobile\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_perspective_effect_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_perspective_effect_hover_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_perspective_effect_hover_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translate_popover_hover\":\"\",\"_transform_translateX_effect_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translateX_effect_hover_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translateX_effect_hover_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translateY_effect_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translateY_effect_hover_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_translateY_effect_hover_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scale_popover_hover\":\"\",\"_transform_keep_proportions_hover\":\"yes\",\"_transform_scale_effect_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scale_effect_hover_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scale_effect_hover_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleX_effect_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleX_effect_hover_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleX_effect_hover_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleY_effect_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleY_effect_hover_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_scaleY_effect_hover_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_skew_popover_hover\":\"\",\"_transform_skewX_effect_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_skewX_effect_hover_tablet\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_skewX_effect_hover_mobile\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_skewY_effect_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_transform_skewY_effect_hover_tablet\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_skewY_effect_hover_mobile\":{\"unit\":\"deg\",\"size\":\"\",\"sizes\":[]},\"_transform_flipX_effect_hover\":\"\",\"_transform_flipY_effect_hover\":\"\",\"_transform_transition_hover\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"motion_fx_transform_x_anchor_point\":\"\",\"motion_fx_transform_x_anchor_point_tablet\":\"\",\"motion_fx_transform_x_anchor_point_mobile\":\"\",\"motion_fx_transform_y_anchor_point\":\"\",\"motion_fx_transform_y_anchor_point_tablet\":\"\",\"motion_fx_transform_y_anchor_point_mobile\":\"\",\"_background_background\":\"\",\"_background_color\":\"\",\"_background_color_stop\":{\"unit\":\"%\",\"size\":0,\"sizes\":[]},\"_background_color_stop_tablet\":{\"unit\":\"%\"},\"_background_color_stop_mobile\":{\"unit\":\"%\"},\"_background_color_b\":\"#f2295b\",\"_background_color_b_stop\":{\"unit\":\"%\",\"size\":100,\"sizes\":[]},\"_background_color_b_stop_tablet\":{\"unit\":\"%\"},\"_background_color_b_stop_mobile\":{\"unit\":\"%\"},\"_background_gradient_type\":\"linear\",\"_background_gradient_angle\":{\"unit\":\"deg\",\"size\":180,\"sizes\":[]},\"_background_gradient_angle_tablet\":{\"unit\":\"deg\"},\"_background_gradient_angle_mobile\":{\"unit\":\"deg\"},\"_background_gradient_position\":\"center center\",\"_background_gradient_position_tablet\":\"\",\"_background_gradient_position_mobile\":\"\",\"_background_image\":{\"url\":\"\",\"id\":\"\",\"size\":\"\"},\"_background_image_tablet\":{\"url\":\"\",\"id\":\"\",\"size\":\"\"},\"_background_image_mobile\":{\"url\":\"\",\"id\":\"\",\"size\":\"\"},\"_background_position\":\"\",\"_background_position_tablet\":\"\",\"_background_position_mobile\":\"\",\"_background_xpos\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_xpos_tablet\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_xpos_mobile\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_ypos\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_ypos_tablet\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_ypos_mobile\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_attachment\":\"\",\"_background_repeat\":\"\",\"_background_repeat_tablet\":\"\",\"_background_repeat_mobile\":\"\",\"_background_size\":\"\",\"_background_size_tablet\":\"\",\"_background_size_mobile\":\"\",\"_background_bg_width\":{\"unit\":\"%\",\"size\":100,\"sizes\":[]},\"_background_bg_width_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_background_bg_width_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_background_video_link\":\"\",\"_background_video_start\":\"\",\"_background_video_end\":\"\",\"_background_play_once\":\"\",\"_background_play_on_mobile\":\"\",\"_background_privacy_mode\":\"\",\"_background_video_fallback\":{\"url\":\"\",\"id\":\"\",\"size\":\"\"},\"_background_slideshow_gallery\":[],\"_background_slideshow_loop\":\"yes\",\"_background_slideshow_slide_duration\":5000,\"_background_slideshow_slide_transition\":\"fade\",\"_background_slideshow_transition_duration\":500,\"_background_slideshow_background_size\":\"\",\"_background_slideshow_background_size_tablet\":\"\",\"_background_slideshow_background_size_mobile\":\"\",\"_background_slideshow_background_position\":\"\",\"_background_slideshow_background_position_tablet\":\"\",\"_background_slideshow_background_position_mobile\":\"\",\"_background_slideshow_lazyload\":\"\",\"_background_slideshow_ken_burns\":\"\",\"_background_slideshow_ken_burns_zoom_direction\":\"in\",\"_background_hover_background\":\"\",\"_background_hover_color\":\"\",\"_background_hover_color_stop\":{\"unit\":\"%\",\"size\":0,\"sizes\":[]},\"_background_hover_color_stop_tablet\":{\"unit\":\"%\"},\"_background_hover_color_stop_mobile\":{\"unit\":\"%\"},\"_background_hover_color_b\":\"#f2295b\",\"_background_hover_color_b_stop\":{\"unit\":\"%\",\"size\":100,\"sizes\":[]},\"_background_hover_color_b_stop_tablet\":{\"unit\":\"%\"},\"_background_hover_color_b_stop_mobile\":{\"unit\":\"%\"},\"_background_hover_gradient_type\":\"linear\",\"_background_hover_gradient_angle\":{\"unit\":\"deg\",\"size\":180,\"sizes\":[]},\"_background_hover_gradient_angle_tablet\":{\"unit\":\"deg\"},\"_background_hover_gradient_angle_mobile\":{\"unit\":\"deg\"},\"_background_hover_gradient_position\":\"center center\",\"_background_hover_gradient_position_tablet\":\"\",\"_background_hover_gradient_position_mobile\":\"\",\"_background_hover_image\":{\"url\":\"\",\"id\":\"\",\"size\":\"\"},\"_background_hover_image_tablet\":{\"url\":\"\",\"id\":\"\",\"size\":\"\"},\"_background_hover_image_mobile\":{\"url\":\"\",\"id\":\"\",\"size\":\"\"},\"_background_hover_position\":\"\",\"_background_hover_position_tablet\":\"\",\"_background_hover_position_mobile\":\"\",\"_background_hover_xpos\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_hover_xpos_tablet\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_hover_xpos_mobile\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_hover_ypos\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_hover_ypos_tablet\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_hover_ypos_mobile\":{\"unit\":\"px\",\"size\":0,\"sizes\":[]},\"_background_hover_attachment\":\"\",\"_background_hover_repeat\":\"\",\"_background_hover_repeat_tablet\":\"\",\"_background_hover_repeat_mobile\":\"\",\"_background_hover_size\":\"\",\"_background_hover_size_tablet\":\"\",\"_background_hover_size_mobile\":\"\",\"_background_hover_bg_width\":{\"unit\":\"%\",\"size\":100,\"sizes\":[]},\"_background_hover_bg_width_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_background_hover_bg_width_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_background_hover_video_link\":\"\",\"_background_hover_video_start\":\"\",\"_background_hover_video_end\":\"\",\"_background_hover_play_once\":\"\",\"_background_hover_play_on_mobile\":\"\",\"_background_hover_privacy_mode\":\"\",\"_background_hover_video_fallback\":{\"url\":\"\",\"id\":\"\",\"size\":\"\"},\"_background_hover_slideshow_gallery\":[],\"_background_hover_slideshow_loop\":\"yes\",\"_background_hover_slideshow_slide_duration\":5000,\"_background_hover_slideshow_slide_transition\":\"fade\",\"_background_hover_slideshow_transition_duration\":500,\"_background_hover_slideshow_background_size\":\"\",\"_background_hover_slideshow_background_size_tablet\":\"\",\"_background_hover_slideshow_background_size_mobile\":\"\",\"_background_hover_slideshow_background_position\":\"\",\"_background_hover_slideshow_background_position_tablet\":\"\",\"_background_hover_slideshow_background_position_mobile\":\"\",\"_background_hover_slideshow_lazyload\":\"\",\"_background_hover_slideshow_ken_burns\":\"\",\"_background_hover_slideshow_ken_burns_zoom_direction\":\"in\",\"_background_hover_transition\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_border_border\":\"\",\"_border_width\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_border_width_tablet\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_border_width_mobile\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_border_color\":\"\",\"_border_radius\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_border_radius_tablet\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_border_radius_mobile\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_box_shadow_box_shadow_type\":\"\",\"_box_shadow_box_shadow\":{\"horizontal\":0,\"vertical\":0,\"blur\":10,\"spread\":0,\"color\":\"rgba(0,0,0,0.5)\"},\"_box_shadow_box_shadow_position\":\" \",\"_border_hover_border\":\"\",\"_border_hover_width\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_border_hover_width_tablet\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_border_hover_width_mobile\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_border_hover_color\":\"\",\"_border_radius_hover\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_border_radius_hover_tablet\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_border_radius_hover_mobile\":{\"unit\":\"px\",\"top\":\"\",\"right\":\"\",\"bottom\":\"\",\"left\":\"\",\"isLinked\":true},\"_box_shadow_hover_box_shadow_type\":\"\",\"_box_shadow_hover_box_shadow\":{\"horizontal\":0,\"vertical\":0,\"blur\":10,\"spread\":0,\"color\":\"rgba(0,0,0,0.5)\"},\"_box_shadow_hover_box_shadow_position\":\" \",\"_border_hover_transition\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_mask_switch\":\"\",\"_mask_shape\":\"circle\",\"_mask_image\":{\"url\":\"\",\"id\":\"\",\"size\":\"\"},\"_mask_image_tablet\":{\"url\":\"\",\"id\":\"\",\"size\":\"\"},\"_mask_image_mobile\":{\"url\":\"\",\"id\":\"\",\"size\":\"\"},\"_mask_size\":\"contain\",\"_mask_size_tablet\":\"\",\"_mask_size_mobile\":\"\",\"_mask_size_scale\":{\"unit\":\"%\",\"size\":100,\"sizes\":[]},\"_mask_size_scale_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_mask_size_scale_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_mask_position\":\"center center\",\"_mask_position_tablet\":\"\",\"_mask_position_mobile\":\"\",\"_mask_position_x\":{\"unit\":\"%\",\"size\":0,\"sizes\":[]},\"_mask_position_x_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_mask_position_x_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_mask_position_y\":{\"unit\":\"%\",\"size\":0,\"sizes\":[]},\"_mask_position_y_tablet\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_mask_position_y_mobile\":{\"unit\":\"px\",\"size\":\"\",\"sizes\":[]},\"_mask_repeat\":\"no-repeat\",\"_mask_repeat_tablet\":\"\",\"_mask_repeat_mobile\":\"\",\"hide_desktop\":\"\",\"hide_tablet\":\"\",\"hide_mobile\":\"\",\"_attributes\":\"\",\"custom_css\":\"\"},\"defaultEditSettings\":{\"defaultEditRoute\":\"content\"},\"elements\":[],\"widgetType\":\"image\",\"htmlCache\":\"\t\t\n\t\t\t\t\t\t\t\t\t\t\t\t\n\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\tOutdoor Omni Antenna Application Overview\n\t\t\t\t\t\t\t\t\t\t\n\t\t\t\t\t\t\t\t\t\n\t\t\",\"editSettings\":{\"defaultEditRoute\":\"content\",\"panel\":{\"activeTab\":\"content\",\"activeSection\":\"section_image\"}}}]}")

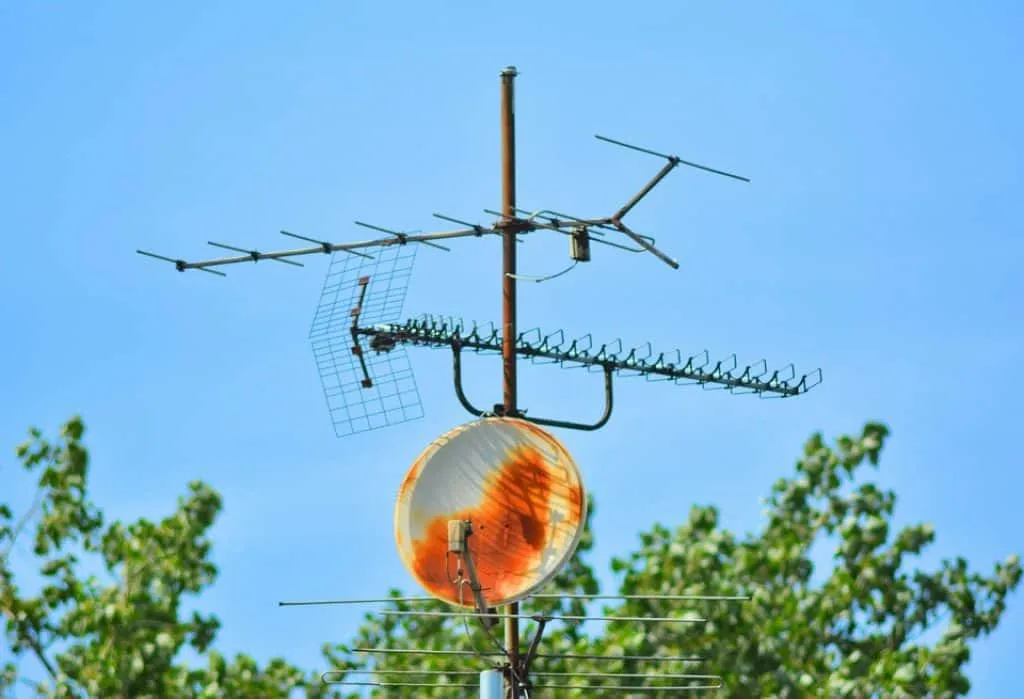

This image is positioned at the beginning of the article, following the paragraph describing real-world Wi-Fi coverage challenges. It aims to translate abstract descriptions like “walls absorb, metal reflects, and long cables steal away precious dBs” into a concrete engineering scenario. The image likely depicts the practical dilemmas engineers face, such as making decisions among multiple antenna options, complex installation environments, or test validation, thereby visually introducing the article's core objective: guiding readers to find the balance between antenna gain, connector choice, and mounting geometry to ensure device stability under “messy” conditions.
When engineers talk about Wi-Fi coverage, most picture a perfect sphere of signal radiating evenly from the router. In the real world, that ideal bubble rarely exists. Walls absorb, metal reflects, and long cables steal away precious dBs. Picking the right omnidirectional Wi-Fi antenna isn’t about chasing gain; it’s about finding the balance between form, connector, and placement so your network holds steady when conditions get messy.
If you design routers, IoT gateways, or industrial access points, a mismatched antenna can quietly destroy link margin and invite costly returns. This guide from TEJTE walks through how to balance antenna gain, connector choice, and mounting geometry so your device performs as tested—not just on paper.
For a quick refresher on how Wi-Fi bands behave and how gain interacts with pattern, TEJTE’s Wi-Fi Antenna Guide provides a solid background.
Which omnidirectional Wi-Fi antenna form best fits your device or site?

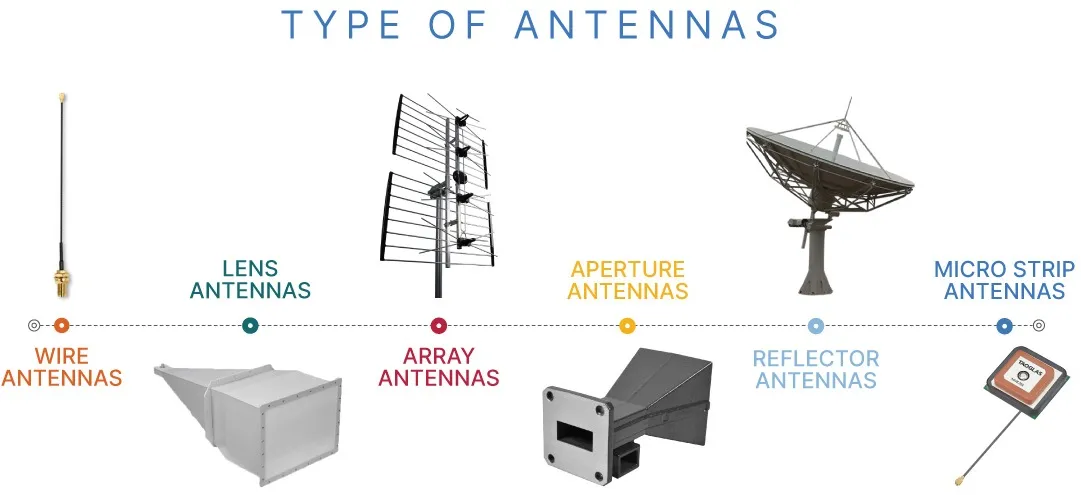

Located at the beginning of the chapter “Which omnidirectional Wi-Fi antenna form best fits your device or site?”, this image serves as background knowledge. It displays the broad field of antenna technology, implying that “omnidirectional” is just one of many types, providing a broader technical context for the subsequent focused discussion on specific Wi-Fi antenna forms like rubber duck, outdoor omni, and internal PCB antennas.
Omni doesn’t mean identical. Every form targets a different job:
- Rubber duck antennas are the workhorses of indoor routers and IoT hubs. Built from ABS or PC plastic, they mount easily, cost little, and cover both 2.4 GHz and 5 GHz with solid consistency.
- Outdoor omni antennas, sealed to IP65 – IP67, rely on N-type or SMA bulkheads and mast brackets to survive weather and UV exposure.
- Internal FPC / PCB antennas hide within the housing—excellent for compact electronics but sensitive to ground clearance and nearby metal.
When designing, think about how enclosure materials shape the radiation window. Plastics let RF energy through; aluminum and steel bounce it back. For metal housings, engineers often reserve a small RF-transparent section or run an external pigtail through a gasketed feed-through.
More layout numbers—clearance distances, detuning effects, and impedance drift—are detailed in TEJTE’s Ground Clearance Antenna Layout & 2.4 GHz Rules, a must-read if your design involves mixed materials.
How do you choose gain for Wi-Fi bands: 2–3 dBi vs 5–6 dBi vs high-gain?

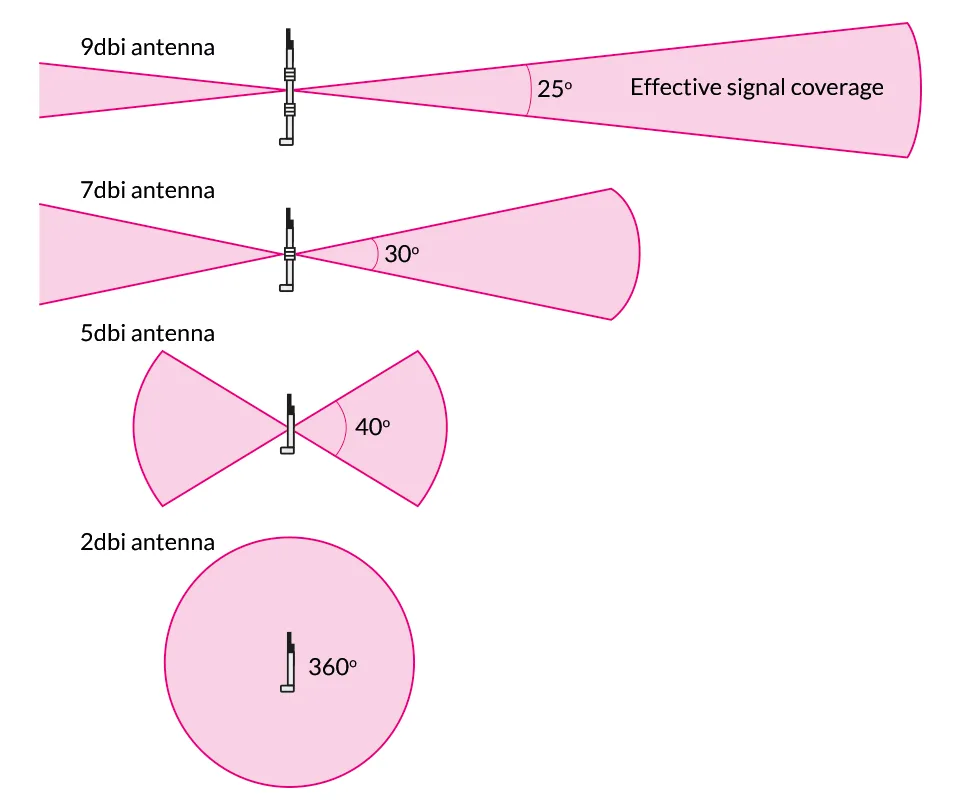

This image is the core instructional graphic for the chapter “How do you choose gain for Wi-Fi bands?”. It visually demonstrates the key trade-off: “higher gain equals narrower coverage.” From the broad “dome” of 2dBi to the narrow “sheet” of 9dBi, the diagram clearly explains why high gain can be counterproductive in indoor multipath environments and directly supports the subsequent discussion and table on suitable scenarios for different gains (apartments, corridors, outdoors).
One of the easiest traps in RF design is believing that more gain automatically means better coverage. It doesn’t.
A 2–3 dBi antenna spreads energy evenly—perfect for rooms, hallways, or clustered sensors.
5–6 dBi units push more energy toward the horizon, great for large open floors but leaving “nulls” above and below.
Once you cross 8 dBi, the beam flattens into a razor-thin sheet—ideal outdoors, but dangerous indoors where reflections usually help.
| Gain Range | Typical Pattern | Real-World Use |
|---|---|---|
| 2-3 dBi | Full dome, rich vertical reach | apartments, offices |
| 5-6 dBi | Flat doughnut, extended horizontal | corridors, factory floors |
| ≥ 8 dBi | Narrow beam, longest reach | outdoor or LOS sites |
Tri-band Wi-Fi 6 / 7 complicates this further. A rubber duck tuned for 2.4 GHz might only yield 3 dBi at 6 GHz. Always check VSWR curves instead of relying on a single gain number. If you’re comparing field results, the Omni Antenna Coverage, Gain & Installation Explained article demonstrates how slight mounting height or tilt changes can swing performance by over 1 dB.
Rule of thumb:
- Stick with low gain (2–3 dBi) for multi-floor or ceiling coverage.
- Use mid gain (5–6 dBi) when users are spread horizontally.
- Reserve high gain for outdoor or long-corridor sites with verified line of sight.
What connector standard prevents order mistakes (SMA vs RP-SMA)?

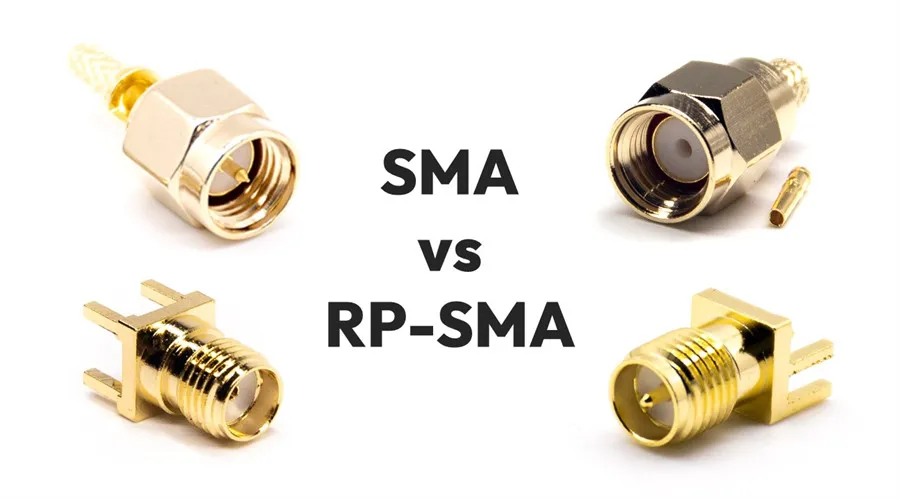

Located in the highly practical section “What connector standard prevents order mistakes?”, this image aims to solve the most common connector confusion encountered by engineers and purchasers. The chart reveals the core difference between SMA and RP-SMA—the reversed polarity of the center conductor—in the most intuitive way, transforming textual descriptions into a visually recognizable rule. It serves as a direct tool to prevent wrong purchases and project delays.
Sooner or later, everyone orders the wrong connector. It’s almost a rite of passage.
The key difference: an SMA male carries a center pin, while an RP-SMA male hides a center hole—the “reverse polarity” that causes most mix-ups.
Most consumer routers feature RP-SMA female jacks, meaning your antennas need RP-SMA male plugs. Test instruments and LTE modules usually keep standard SMA.
When you finalize your BOM, spell it out completely—write “RP-SMA male straight bulkhead” instead of just “SMA.” That small habit saves warehouses from sorting chaos.
Mechanical choices matter as much as electrical ones. A right-angle version eases cable routing and reduces strain, while bulkhead styles improve panel sealing. Typical torque runs around 0.6 N·m for SMA and 5–8 N·m for N-type outdoor joints.
In the lab, labeling helps as much as specs. Color rings or heat-shrink bands prevent cross-gender confusion when technicians swap antennas mid-test. TEJTE’s SMA Male-to-Female 50 Ω Guide shows close-up photos and quick identification tricks that make connector direction instantly clear.
Will cable type and length quietly erase your Wi-Fi link budget?

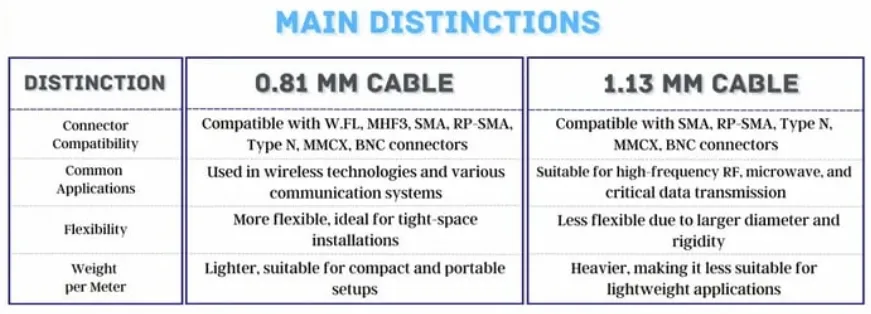

In the chapter discussing cable loss, this image serves as a detailed decision-making reference when selecting internal jumpers or connection cables for IoT devices. It goes beyond a simple loss datasheet, offering a more comprehensive engineering selection perspective, including mechanical properties (flexibility, weight) and connection compatibility. This chart helps designers make informed choices between the two commonly used micro-coax cables in compact devices where space is constrained, specific connectors are required, or portability is a consideration.
| Cable Type | Diameter (mm) | Typical Loss @ 2.4 GHz (dB/m) | Typical Loss @ 5 GHz (dB/m) | Common Use |
|---|---|---|---|---|
| Micro-coax 0.81 | 0.81 | ≈ 0.80 | ≈ 1.25 | Short internal jumpers |
| Micro-coax 1.13 | 1.13 | ≈ 0.60 | ≈ 0.95 | Modules / IoT patches |
| LMR-240 | 6.1 | ≈ 0.26 | ≈ 0.42 | Outdoor runs ≤ 5 m |
| LMR-400 | 10.3 | ≈ 0.14 | ≈ 0.23 | Long feeders / rooftops |
Every pair of connectors adds about 0.15 dB, so two pairs plus five meters of LMR-240 can cost you ≈ 1.5 dB in one direction. At 6 GHz that penalty is even worse. Always measure total path loss instead of just feeder specs.
When configuring APs or gateways, use TEJTE’s Omni Link-Budget Mini-Calculator to estimate EIRP and verify margin before you lock the BOM. If link margin drops below 6 dB, shorten the feeder or switch to a lower-loss LMR-type instead of increasing gain—it’s cheaper and more reliable.
Where should you mount an omni to minimize metal detuning and coupling?

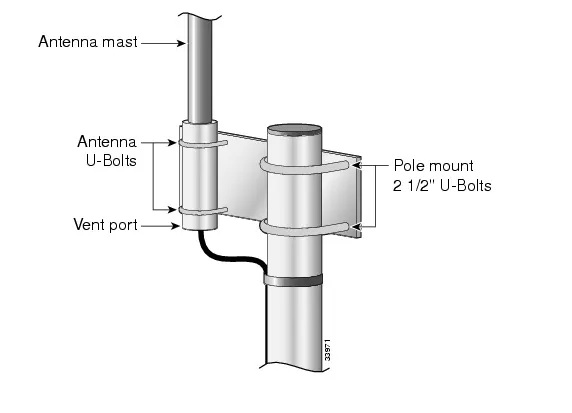

Located in the chapter “Where should you mount an omni to minimize metal detuning and coupling?”, this image concretizes the mechanical details of installation. It shows the hardware components used in professional outdoor installations, emphasizing how proper mounting methods (e.g., using U-bolts, ensuring ventilation) are crucial for maintaining antenna performance stability and preventing moisture buildup. The image connects the principle that “placement decides performance” with actual physical components.
Placement decides performance. Mount too close to metal and the pattern collapses; mount too high without clearance and reflections distort the lobe. A good rule: keep at least ½ wavelength (≈ 6 cm at 2.4 GHz) of air gap from any grounded surface. More is better.
Avoid installing near rails, parapets, or HVAC ducts. Those act as partial reflectors and can shift resonance by tens of MHz. If you must mount on a metal pole, use a short dielectric standoff or plastic adapter. For multi-antenna sites, maintain co-site spacing of at least one wavelength to control CCI/ACI and avoid pattern coupling.
TEJTE’s Ground Clearance Antenna Layout & 2.4 GHz Rules covers exact clearance distances and simulation data for plastic vs metal bases—use it as your layout reference before cutting tooling.
Do you actually need an outdoor omni instead of a rubber duck?
This image corresponds to the key question “Do you actually need an outdoor omni instead of a rubber duck?”. Through an intuitive comparison of form and structure, it powerfully illustrates the different design goals of the two antennas: convenience and low cost for indoor use vs. durability and sealing required for long-term outdoor exposure. The image helps readers quickly understand why an outdoor antenna designed for harsh conditions is mandatory in environments with continuous sunlight, moisture, or vibration.
An indoor rubber duck works beautifully until humidity, UV, and wind start testing its limits. If the antenna will see direct sunlight or rain, you need an outdoor omni with proper sealing and torque spec.
Look for IP65 or IP67 ratings, UV-stabilized ABS or fiberglass shells, and anti-rotation designs that lock under 8 N·m of tightening torque. Salt-fog protection matters too if you’re anywhere near the coast. These ruggedized features may cost a few dollars more but save entire field trips in repairs.
When you compare form factors, don’t forget that a directional panel sometimes outperforms an omni if your coverage area is one-sided. As TEJTE’s Outdoor Omni Antenna Guide: IP67 Rating & Mounting Tips notes, field conditions and terrain often decide which pattern wins—not search volume or spec sheet numbers.
Can you validate coverage fast before freezing the BOM?
Before committing to a mass order, verify coverage with quick field tests. A simple walk-test using RSSI heatmaps or throughput logging apps can reveal gaps within minutes. Vary tilt and azimuth slightly and watch signal stability—sometimes a few degrees of rotation recover an entire corner.
If performance still drops, apply a cable-first isolation check: swap only the feeder, then the connector, and finally the antenna. That sequence isolates faults without guesswork. The same method appears in TEJTE’s Mast Mount Antenna Reinforcement Guide, which details how improper torque or drainage can fake “antenna failure.”
Field validation may feel old-school, but it remains the fastest way to protect link budget and customer trust.
How should you order like a pro so the PO is manufacturable?
This diagram introduces a fundamental model in antenna engineering. It shows the principle of artificially creating “clearance” through a physical structure (insulating mast), echoing the concept of “ground cut” in PCB design. It helps readers understand that ground clearance is not merely a two-dimensional planar distance issue but can also be achieved through three-dimensional structures, offering ideas for solving antenna layout problems in compact spaces.
Many Wi-Fi antenna projects fail not in RF design, but in paperwork. Incomplete part descriptions lead to shipment delays, mismatched connectors, or missing seals. A precise purchase order should tell the factory exactly what to build — no guesswork, no emails.
Below is a concise ordering checklist. You can paste it directly into your RF component spreadsheet or ERP form:
| Specification Field | Key Details / Example Options |
|---|---|
| Gain (dBi) | 2 / 3 / 5 / 6 / 8 — specify per band if tri-band |
| Connector Type | SMA / RP-SMA / N-Type; include gender (male / female) |
| Cable Type & Length | 0.81 mm / 1.13 mm / LMR-240 / LMR-400; add exact length (m) |
| Antenna Form | straight / right-angle / bendable; color black / white |
| Mounting Style | panel / bulkhead / mast / magnetic base |
| Torque & IP/UV Rating | SMA ~ 0.6 N-m / N-Type ~ 8 N-m / IP65-IP67 |
| Environmental Range | -40 °C to +80 °C (outdoor) / 0 – 60 °C (indoor) |
| Compliance Marks | RoHS / REACH / CE / FCC |
| Lead Time / MOQ | define per model |
| Label & Packaging | printed SKU / RMA code / orientation arrow |
Omni Wi-Fi Link-Budget Mini-Calculator
Even a perfect order can fail if link margin collapses.
Use this calculator to estimate real radiated power and check your signal headroom.
Input Variables
| Parameter | Example / Range |
|---|---|
| Transmit Power (dBm) | 18 – 23 |
| Antenna Gain (dBi) | 2 / 3 / 6 / “high” |
| Feeder Type | 0.81 / 1.13 / LMR-240 / LMR-400 |
| Feeder Length (m) | 0.1 – 10 |
| Connector Pairs | 1 – 3 |
| Frequency (GHz) | 2.4 / 5 / 6 |
| Receiver Sensitivity (dBm) | -85 to -95 |
| Path Loss (dB) | measured or FSPL estimate |
| Feeder Type | Loss (dB/m) |
|---|---|
| 0.81 | 0.80 |
| 1.13 | 0.60 |
| LMR-240 | 0.26 |
| LMR-400 | 0.14 |
| Connector pair | 0.15 (each) |
Formula
feeder_loss = loss_per_m × feeder_length_m
connector_loss = 0.15 × connector_pairs
EIRP_dBm = tx_power_dBm − feeder_loss − connector_loss + antenna_gain_dBi
link_margin = EIRP_dBm − path_loss_dB − rx_sensitivity_dBm
Decision Rule:
If link margin < 6 dB, shorten the feeder, switch to a lower-loss cable, or reduce connector count before trying higher gain. That single fix often recovers more throughput than replacing hardware.
Omni Selection & Ordering Matrix
| Antenna Type | Gain (dBi) | Connector | Form Factor | Mounting Method | Cable Type / Length | IP / UV Rating | Temperature Range (°C) | Compliance | Torque Spec | Typical Use Case |
|---|---|---|---|---|---|---|---|---|---|---|
| Rubber-duck (indoor) | 2 – 3 | SMA / RP-SMA | straight | panel / router | 0.81 / 1.13 ≤ 0.5 m | N/A | 0 – 60 | RoHS | 0.6 N·m | Wi-Fi routers / IoT nodes |
| Outdoor omni | 2 – 6 | N-type / SMA | right-angle | mast / pole | LMR-240 ≤ 5 m | IP67 UV-proof | -40 – +80 | RoHS / REACH | 8 N·m | Gateways / APs / Base stations |
| Internal FPC / PCB | 0 – 3 | U.FL / MMCX | bendable | PCB mount | N/A | N/A | depends on enclosure | RoHS | N/A | Wearables / Compact modules |
What changed in 2024 – 2025 for omnidirectional Wi-Fi?
Two industry shifts now drive antenna decisions:
- Wi-Fi 7 Tri-Band Adoption — Access points routinely combine 2.4 + 5 + 6 GHz, tripling the need for low-loss feeders and well-matched connectors.
- EIRP Efficiency Pressure — Regulations hold firm on power limits, so engineers now chase efficiency per dB, not brute gain.
- Standardized Mounting Hardware — New clamp systems fit both SMA and N-type stems, cutting torque-related field failures by 20 %.
Despite new bands, 2.4 GHz remains essential for IoT because of its superior wall penetration. TEJTE’s product engineers still treat it as the reliability anchor while optimizing higher bands for data speed.
FAQ — Omnidirectional Wi-Fi Antenna
Does higher gain always improve corridor coverage?
Not always. More gain flattens the vertical beam, which can leave gaps above and below hallway users.
How can I distinguish SMA from RP-SMA quickly?
Look at the center: a pin = SMA male, a hole = RP-SMA male.
What’s a safe pigtail length for U.FL → SMA?
Stay below 25 cm; beyond that, loss outweighs convenience.
How much clearance from metal structures should I keep?
At least ½ wavelength (~6 cm @ 2.4 GHz). Doubling that is safer near steel rails.
When do I need an outdoor omni instead of a rubber duck?
Whenever sunlight, moisture, or vibration are continuous—outdoor housings prevent oxidation and UV drift.
What’s the quickest field validation method?
Perform a walk-test, rotating the antenna 15° increments; if RSSI variance stays under 3 dB, the installation passes.
Final Takeaway

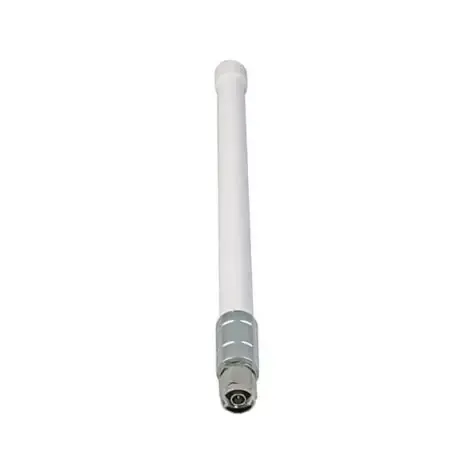

Serving as the article's closing image in the “Final Takeaway” section, it summarizes the goal of the entire text through a positive visual symbol: by meticulously planning every dB (gain, loss, cable, clearance) and verifying/ordering with a clear spec list, the ultimate reward is a stable network and zero surprise RMAs. It elevates the technical discussion to the level of user experience and project success, providing a perfect conclusion to the article.
