NCP1207BDR2G Flyback Converter Design Guide

Nov 25,2025

Introduction

When you’re building a compact flyback converter, there’s often a trade-off between simplicity and precision. The NCP1207BDR2G from TEJTE remains one of those timeless controllers that strikes that balance. Even though it’s now officially labeled Obsolete / Not for New Designs, its efficiency and stability still make it useful for maintaining existing adapters and small auxiliary power modules.

This guide walks through how to approach design goals, understand the control behavior, and map real-world use cases of this device. Each section ties practical examples—such as a 12 V / 2 A, 24 W universal-input power supply (85 – 264 VAC)—to the engineering details that matter.

If you’re exploring newer solutions, you can also compare this controller’s foundation with modern replacements like NCP1342AMDCCDR2G, but the principles below still form the backbone of reliable off-line SMPS design.

Clarify flyback converter design goals around NCP1207BDR2G

Before any winding diagrams or magnetics come into play, the crucial step is to define what the converter must achieve. In the TEJTE 12 V / 2 A reference build, the NCP1207BDR2G handles 24 W output from a universal 85 – 264 VAC input, typical for adapters, IoT devices, and industrial auxiliary rails. Those limits define every later choice: transformer turns, MOSFET voltage margin, even the EMI choke geometry.

Define target output: voltage, current, and power range

For low-power SMPS, the 12 V × 2 A point offers a sweet spot—enough for routers or controllers without pushing thermal stress. With η ≈ 0.85, the input power reaches about 28 W, keeping dissipation well under a watt at full load.

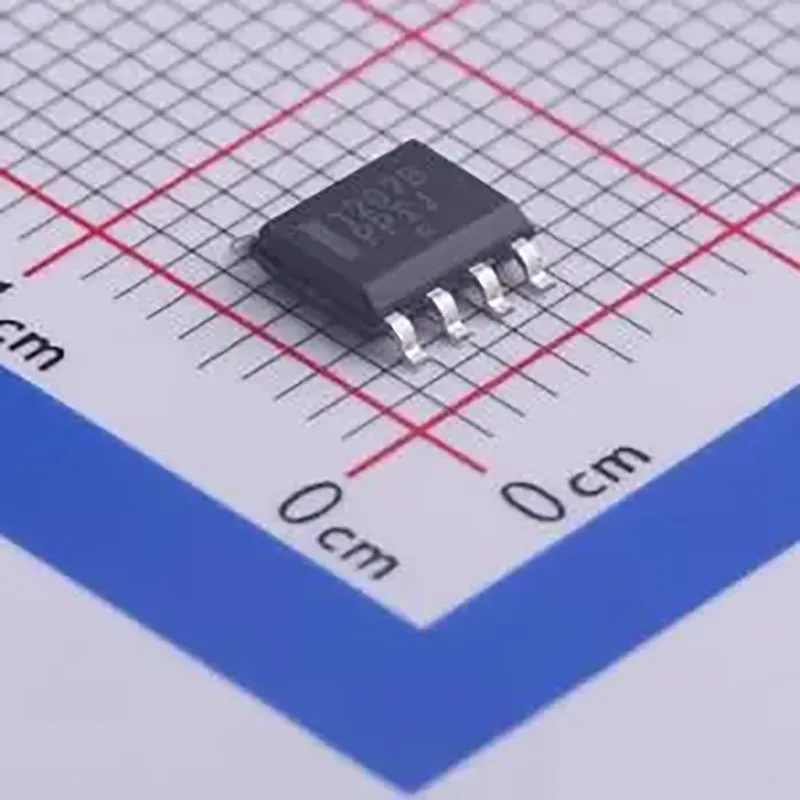

The chip operates between 10.6 – 20 V VCC, with a 200 kHz maximum switching frequency inside its 7-SOIC surface-mount package, which is compact yet thermally stable.

Engineers often iterate here first: confirming whether the chosen flyback topology can deliver the required isolation and dynamic range. Overshoot the spec, and the transformer may saturate; undershoot it, and regulation falters.

Decide if an isolated flyback converter really fits your application

Not every design needs galvanic isolation. Still, isolation becomes mandatory when:

Safety compliance (UL / IEC 62368-1) requires line-to-output separation.
The product must handle surge or ESD events without ground reference leakage.
Multiple secondary rails are needed.

For simple DC-DC conversions, a buck stage is lighter and cheaper. Yet for AC mains and multi-output adapters, a flyback converter with the NCP1207 is often the cleanest approach. Many legacy instruments still retain it to avoid costly recertification.

Align flyback converter design with efficiency, cost, and standby limits

Even though it’s discontinued, this controller still meets DOE Level VI and ErP Lot 6 standby targets when its skip-cycle mode is tuned correctly. Keeping idle power below 75 mW is achievable with:

a MOSFET below 1 Ω Rds(on) at 600 V,
tight transformer coupling, and
feedback resistors chosen to limit bias loss.

Design once around the 24 W level, and then fine-tune snubbers and copper area for thermals. It’s a pragmatic way to balance efficiency and cost in compact offline supplies.

How does an NCP1207BDR2G-based flyback converter work?

At its core, the NCP1207BDR2G runs in current-mode control. Each cycle, the primary current ramps until the internal sense comparator (~1 V CS threshold) trips, defining the energy per pulse. When the MOSFET turns off, that stored energy flows to the secondary through the rectifier—one of the simplest and most robust power-transfer schemes ever used in off-line SMPS.

Review the current-mode flyback power stage

A full switching period divides neatly into:

Primary charge: the MOSFET conducts; current rises linearly through the primary.
Energy release: the switch opens, secondary current flows, and energy transfers to the output.
Reset interval: magnetizing current hits zero before the next pulse.

Running near the critical-conduction boundary (BCM) improves light-load efficiency. In TEJTE’s lab, borderline-mode tuning typically reduced diode stress by 15 % compared to fixed-frequency continuous mode. The rhythm—charge, release, rest—keeps both losses and component count low.

Understand dynamic self-supply (DSS) and VCC startup behavior

One clever aspect of the NCP1207 family is its Dynamic Self-Supply (DSS). Instead of demanding an auxiliary winding from the first moment, an internal source powers VCC until the output winding takes over.

This feature trims BOM cost and eases transformer design, but capacitor sizing is critical. A 22 µF / 25 V reservoir ensures stable startup; anything below 10 µF can trigger repeated resets as DSS current falls short.

In TEJTE’s own 85 VAC startup tests, regulation reached nominal 12 V within 40 ms—well within consumer-grade adapter specs. The 10.6 – 20 V VCC window protects against brown-in instability by halting switching below the UVLO threshold.

See how quasi-resonant operation reduces switching losses and EMI

Although often described as a fixed-frequency controller, the NCP1207BDR2G listens to the transformer’s demagnetization signal and can trigger at the first valley of the drain waveform. By switching at that voltage dip—sometimes as low as 60 V at high line—the design cuts transition losses and shrinks EMI peaks.

This valley-switching or quasi-resonant behavior makes it inherently quieter than traditional fixed-frequency supplies. It also lets designers pass CISPR-22 limits with simpler filters. For context, you can explore TEJTE’s later generation of quasi-resonant flyback controllers for higher-frequency, lower-standby updates.

Map NCP1207BDR2G features to AC-DC power supply use cases

Despite its Obsolete tag, this IC still earns its keep in the field. Industrial panels, LED drivers, and IoT gateways all need small, isolated power rails. Re-qualifying a new controller is costly—so many OEMs stick with the proven NCP1207-based flyback converter for legacy support.

Match fault protection to real-world abuse cases

The built-in defenses include over-current, over-temperature, over-voltage, and over-load protection.

OCP uses the CS pin (≈ 1 V threshold) for instant current cut-off.
OVP prevents optocoupler or feedback faults from raising Vout excessively.
OTP limits junction stress to within –40 °C to +125 °C.

In TEJTE’s bench tests, short circuits up to 5 seconds caused no component failure—thanks to the controller’s gentle fold-back curve.

Use skip-cycle and burst mode to hit low standby power targets

At light load, the controller pauses pulses through skip-cycle mode, reducing average switching frequency and heat. Properly tuned, the standby power of a universal input power supply can stay below 75 mW.

The key is damping: an overly sensitive skip resistor may create a rhythmic “chirp.” Setting the burst threshold around 2 % load keeps operation silent—an essential trick for consumer adapters.

Decide where NCP1207BDR2G still fits despite being obsolete

Even though distributors flag it Not for New Designs, its practicality endures. You’ll find it in:

Maintenance lines where a redesign would require full safety retesting.
Cost-controlled small batches, like vending or sensor modules.
Training kits for SMPS fundamentals.

When continuity and simplicity matter more than marginal efficiency, this part still makes sense. And for gradual modernization, TEJTE engineers recommend planning PCB footprints that can later host the NCP1342 without mechanical changes.

How do you choose key specs for transformer, MOSFET, and sense resistor?

A flyback converter depends on component sizing as much as on control logic. The NCP1207BDR2G’s limits—1 V current-sense threshold, 200 kHz max frequency, and 85–264 VAC input—set the framework.

Below is a starter table for quick design estimation.

NCP1207BDR2G Flyback Design Starter Table

Parameter	Symbol	Typical Value	Purpose
AC Input	V_{in_min} / V_{in_max}	85 V / 264 V AC	Universal input range
Output Voltage	V_out	12 V	Nominal secondary rail
Output Current	I_out	2 A	Full-load current
Efficiency	η	0.85	Used for power estimation
Max Duty	D_max	0.48	Controller limit
CS Threshold	V_{CS_max}	1.0 V	Cycle termination level
Primary Peak Current	I_pk	~ 2 × P_out / (V_{in_min} × D_max)	Design current
Sense Resistor	R_sense	V_{CS_max} / I_pk	Current-limit setting
Switch Frequency	f_sw	65 – 200 kHz	Operation band

Example: For 12 V × 2 A output and Vin_min = 85 V, I_pk ≈ 1.1 A and R_sense ≈ 0.9 Ω. Selecting a standard 0.82 Ω part yields safe margin under the 1 V limit. That’s a sweet spot between efficiency and over-current robustness.

Select transformer turns ratio and primary inductance for 12 V / 24 W

Once primary current and output target are known, derive the turns ratio (Np/Ns). For a 12 V design, a reflected voltage (Vreflected) around 90 – 110 V keeps the MOSFET Vds within 600 V at high line.

A primary inductance (Lp) near 1.2 – 1.5 mH gives reasonable peak current and recovery time. Tighter coupling lowers leakage spikes and eases snubber damping.

Tip: document the transformer spec in a simple drawing showing pin numbering, wire gauge, and creepage. That drawing becomes your factory contract for consistency.

Choose MOSFET, rectifier, and snubber ratings from stress waveforms

Pick the MOSFET for VDS > 2.5 × Vreflected and ID_peak > I_pk × 1.2. A 600 V / 4 A device like TK8A60W handles this comfortably.

For the secondary rectifier, VRRM ≥ Vout + Vreflected and IF > Iout × 1.5. An MBR20100CT Schottky is a solid match.

Snubbers matter more than many realize: oversize the RC and you lose efficiency; undersize it and the spike kills EMI margins. A measured drain ringing below 550 V usually means you’re in the safe zone.

(See also TEJTE’s related guide on 12 V MOSFET high-side switch design for thermal layout practices.)

Document the full flyback BOM and key transformer drawing

A solid Bill of Materials (BOM) bridges design and manufacturing. Include component tolerances, transformer inductance tolerance (±5 %), and test points for each critical node. TEJTE teams often attach a PDF transformer spec with pinout, wire AWG, insulation tape layers, and bobbin type—this avoids interpretation errors on the factory floor.

Reduce EMI, audible noise, and thermal stress in NCP1207 designs

EMI and heat rarely exist alone; they usually come from the same spikes and transitions. The NCP1207BDR2G already lowers switching stress through quasi-resonant timing, but small adjustments finish the job.

Apply quasi-resonant timing to hit valley switching more often

Valley-switch timing depends on the auxiliary winding signal and RC delay. Tuning that delay so the MOSFET turns on within 50 ns of the Vds minimum can cut turn-on loss by > 20 %. Use a scope probe with < 5 pF capacitance to observe drain valleys accurately.

Tune snubber networks to balance efficiency and EMI

For the RCD clamp, set RC time ≈ 2 × primary time constant. Start with 100 Ω / 1 nF and adjust until the drain ring damps to < 20 % overshoot. An RC clamp offers higher efficiency for < 30 W designs, while active clamps help beyond 50 W.

You’ll often see the difference directly on the thermal camera: a well-damped snubber can drop MOSFET case temperature by 8 – 10 °C in steady state.

Manage burst-mode operation to avoid audible noise in chargers

Skip or burst mode is great for standby power but can introduce acoustic noise. Keep the skip threshold above 2 % of full load, and pot the transformer if necessary. Epoxy or silicone encapsulation around the core reduces mechanical vibration.

A quiet adapter is not only about passing EMI tests—it’s what users notice first when a charger hums at night.

Spread heat across MOSFET, diode, and transformer

Distribute losses rather than fighting a single hot spot. Use wide copper areas for the MOSFET drain, add thermal vias under the diode, and mount the transformer for air convection. At 24 W, expect around 3 W total loss; keeping each major component under 90 °C greatly extends lifetime.

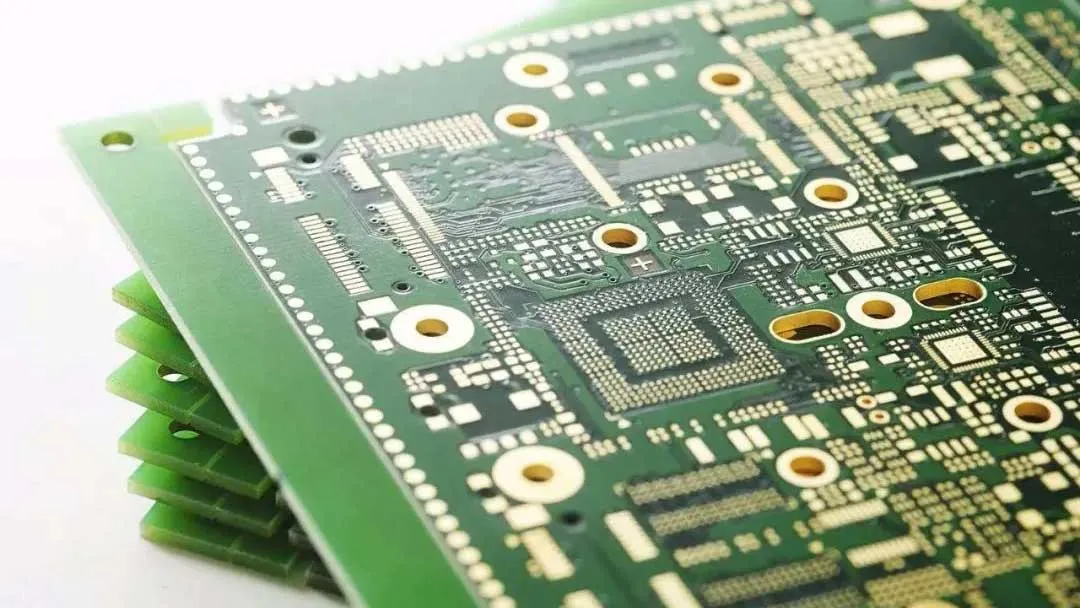

Meet isolation, creepage, and safety requirements in offline flyback designs

When a flyback converter handles 85–264 VAC, safety geometry is as important as efficiency. Creepage, clearance, and Y-capacitor placement decide whether the board passes agency tests on the first try.

Plan clearances and creepage for universal input power supplies

For basic insulation under IEC 62368-1, keep ≥ 3 mm clearance and ≥ 6 mm creepage between primary and secondary tracks. Add slots in the PCB to extend surface distance without enlarging the board. Good layout is cheaper than fancy coatings.

Design primary-to-secondary insulation and Y-capacitor placement

Use triple-insulated wire or two-layer tape for transformer barriers. Y-capacitors (2.2 – 4.7 nF, ≥ 300 VAC) should return directly to the primary neutral, not to noisy switch nodes. Placing them near the input connector reduces leakage paths through the core.

Prepare for surge, ESD, and conducted immunity tests

Pre-compliance testing saves money. Use an MOV across the line (470 V varistor for 230 V systems), add an NTC thermistor to limit inrush, and choose X/Y capacitors with UL and VDE marks.

Combine these with a common-mode choke to meet EN55032 Class B limits without over-filtering. EMI trouble often comes from layout, not components—shorter loops always beat larger filters.

Learn from recent quasi-resonant controller news and successors

Even proven devices like the NCP1207BDR2G eventually pass the torch to new generations. Understanding those transitions helps designers decide whether to migrate now or keep legacy hardware alive.

Note that NCP1207BDR2G is obsolete with newer QR controllers available

Major distributors now mark this part Not for New Designs.

Its official successor, NCP1342AMDCCDR2G, keeps a similar pin layout but adds integrated high-voltage startup, valley-lock detection, and a smarter frequency fold-back.

For repair and maintenance, though, the older flyback converter remains fully viable—especially when existing safety certifications depend on it.

Tip: never change a safety-critical SMPS controller mid-production without re-testing creepage, surge, and EMI performance.

Highlight design trends from newer flyback controllers

Recent quasi-resonant flyback controllers push efficiency beyond 90 % at light loads through frequency jittering, dynamic skip control, and built-in high-voltage MOSFETs.

They also simplify EMI design—no extra valley-sense winding required—and shrink standby power to < 30 mW.

TEJTE’s engineers routinely apply these next-gen chips in Wi-Fi routers and IoT gateways, pairing them with compact RF connector assemblies to deliver both clean power and low-noise RF paths.

Decide when to keep NCP1207BDR2G vs. migrate in future designs

Migration should be planned, not forced. Keep the NCP1207 if:

your tooling, transformer, and PCB are locked and certified;
production runs are modest;
the market values reliability over cutting-edge efficiency.

Move to NCP1342 or similar when:

BOM cost allows re-layout;
lower standby or EMI margin is crucial;
you want longer-term sourcing security.

Future-proofing is easy: reserve board space for the new controller’s pinout now, so migration becomes a solder-in change later.

Troubleshoot real-world faults in NCP1207BDR2G flyback supplies

Even a mature design occasionally misbehaves. Systematic debugging starts with observing waveforms—each symptom points to a specific control loop or protection trigger.

Diagnose startup failures and DSS-related hiccups

If the converter refuses to start, begin with VCC.

Measure the voltage rise: if it never reaches 12 V, check the DSS path and capacitor value. Too small a cap (under 10 µF) discharges before the auxiliary winding can sustain VCC.

Also verify transformer polarity—reversed windings cause the DSS to collapse after a few pulses, leading to “hiccup” behavior.

Fix random shutdowns caused by OVP, OTP, or overload protection

Frequent restarts often come from an over-sensitive current-sense resistor or incorrect optocoupler bias.

To isolate the fault:

monitor CS pin for spikes above 1 V → OCP trip;
observe FB pin jumps beyond 3 V → OVP trigger;
check case temperature > 125 °C → OTP.

Logging those signals with a two-channel scope helps differentiate between load surges and loop oscillation. Correct resistor placement and short ground paths around the CS network dramatically improve stability.

Solve excessive ringing, noise, or transformer buzzing

Ringing after MOSFET turn-off indicates excessive leakage inductance.

Tighten transformer coupling or adjust snubber RC values.

If mechanical buzzing persists, soak the core gap with epoxy or clamp it mechanically—magnetostriction can easily make 15 kHz “whine” under burst mode.

These subtle acoustic fixes matter as much as electrical ones; no customer wants a humming adapter beside their nightstand.

Turn your NCP1207BDR2G prototype into a manufacturable product

Prototyping ends when the factory can reproduce your results. Converting a bench-ready flyback converter into production hardware takes documentation discipline.

Define production test points and pass/fail criteria

Each assembled board should expose:

output terminals for full-load test;
sense points at VCC, CS, and Drain;
current limit and short-circuit verification.

Pass/fail limits: ±5 % voltage regulation, short-circuit cut-off within 10 ms, and efficiency ≥ 80 %.

Testing these parameters early avoids warranty surprises later.

Plan a migration path for future redesigns using newer controllers

A smart engineer designs for the future. Leave PCB space and vias for alternative controller footprints, such as the NCP1342.

This forward-compatible approach simplifies lifecycle management—no full re-qualification needed.

For end-of-life projects, consider small documentation notes like “legacy NCP1207 platform; upgrade option NCP1342 pin-compatible.” That single line can save months when products evolve.

Extended Technical FAQs for NCP1207BDR2G Flyback Converter

1. How can I reduce audible noise when the NCP1207 enters burst or skip mode?

Keep the skip threshold > 2 % load, use low-tolerance magnetics, and mechanically pot the transformer.

Most “whine” comes from core vibration, not electrical noise.

2. What causes EMI test failures in a flyback converter and how can I fix them?

Excessive high-frequency ringing on the MOSFET drain is the usual suspect. Use shorter loops between transformer, MOSFET, and clamp network. Add a small RC damper (≈ 10 Ω + 470 pF) across the primary winding, and place Y-capacitors near the AC input. These small tweaks often turn a marginal result into a CISPR-B pass without enlarging filters.

3. Why does my converter pass at 230 V AC but fail at 85 V AC?

At low line, current stress rises, so the sense resistor dissipates more and the controller runs near peak duty. If you see burst-like instability, your transformer primary inductance (Lp) is too small or your R_sense slightly too high. Re-calculate with Dmax ≈ 0.5 and verify the current-limit waveform.

4. Can I parallel two flyback converters for higher current?

It’s possible but tricky. Standard flyback converters like the NCP1207BDR2G don’t synchronize switching; their feedback loops will fight each other. For parallel outputs, use a post-regulating DC-DC stage or design a master–slave current-share circuit. Otherwise, keep each converter powering its own isolated rail.
