A common mistake in RF projects happens before the first measurement starts: the cable has already been selected based on appearance, connector type, or price.
The assembly arrives, the SMA or N-type connector fits correctly, and a continuity test shows no problem. But after the cable is installed into the actual system, the measured signal level is lower than expected. The reason is often not the connector. The cable loss, frequency range, and assembly structure were not considered early enough.
This situation appears frequently in antenna systems, wireless equipment, and RF test environments. A cable that works well at a few hundred MHz may create noticeable loss when the same design is pushed into several GHz. A short bench connection may also hide problems that become obvious after the cable length increases.
Selecting a low loss rf cable is therefore not only about reducing attenuation. It is about keeping enough signal margin after the complete RF path is assembled.
Why Do Low Loss RF Cables Matter in High Frequency Systems?

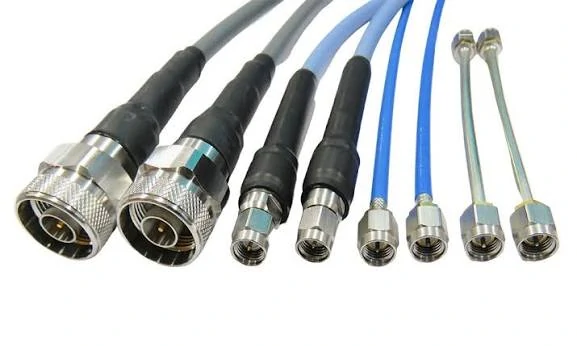

This image shows different low loss RF cable assembly designs with multiple connector interfaces. The selection of cable structure and connector type affects attenuation, signal integrity, and RF system performance.
Every RF cable consumes part of the transmitted energy. The amount depends on several factors, including operating frequency, cable length, conductor design, dielectric material, and shielding structure.
The loss value is normally shown as attenuation in dB/m. A cable specification may look acceptable at a lower frequency, but the same cable can have significantly higher loss at a higher frequency point.
For example, a 1m cable used between two RF modules may have little influence in a low-frequency application. The same cable length can become a limiting factor in a microwave measurement setup where the available signal margin is much smaller.
This is why engineers usually evaluate the entire RF path instead of looking at one component separately.
A typical RF path may include:
- RF transmitter output
- Cable assembly
- Connector transition
- Adapter connection
- Antenna or receiver input
Each section introduces possible loss or mismatch.
A low loss cable becomes more valuable when:
- The cable route is relatively long
- The operating frequency is close to the upper limit of the cable
- The receiver signal level is low
- Measurement accuracy is important
- Multiple RF connections are used in one system
In these cases, saving a small amount on the cable price may create additional troubleshooting time later.
This creates a common engineering trade-off
Lower loss often requires a larger cable structure.
However, a larger cable is not always the correct choice. Equipment with limited installation space may require a smaller flexible cable even if the attenuation value is slightly higher.
The correct selection depends on the system requirement.
Dielectric Material Influences More Than Just Insulation
The dielectric between the center conductor and shield controls the electromagnetic field inside the cable.
Different dielectric materials affect:
- Signal propagation speed
- Phase stability
- Attenuation
- Temperature characteristics
For general communication equipment, small differences may not create obvious problems. For RF test cables or microwave systems, these differences can influence measurement consistency.
This is one reason precision RF cable assemblies are usually specified with more detailed requirements instead of only listing connector type and cable length.
Shielding Determines How Well the Signal Environment Is Controlled
A low loss RF cable is not only expected to transmit signals efficiently. It must also prevent unwanted signals from entering or leaving the cable.
Poor shielding can create problems in environments with:
- Switching power supplies
- Digital circuits
- Motor controllers
- High-density electronic assemblies
Common shielding structures include:
| Cable Shield Structure | Typical Use Situation | Consideration |
| Single shield | General RF connections | Lower cost, moderate protection |
| Double shield | Communication and industrial equipment | Better interference resistance |
| Multi-layer shield | Test systems and sensitive RF paths | Higher isolation requirement |
| RF laboratory testing | May affect measurement margin | Better choice |
| Weak receiver signal | Limited loss tolerance | Helps preserve signal level |
One detail that is often missed during purchasing is that shielding and attenuation are different specifications.
A cable may have excellent shielding but still have higher insertion loss. Another cable may have low attenuation but require additional shielding protection depending on the environment.
Both parameters need to match the application.
Compare Standard RF Cables and Low Loss RF Cables Before Ordering
Not every RF connection needs a premium low attenuation cable.
The additional cost and larger size of a low loss cable may not provide meaningful improvement.
The decision usually depends on distance, frequency, and signal requirements.
A frequent sourcing error is choosing the cable after the connector has already been decided.
For example, an SMA assembly is not defined only by the SMA interface. The cable diameter, dielectric structure, termination method, and frequency capability behind the connector determine whether the assembly can actually meet the application requirement.
The connector may be rated for high frequency, but the cable can become the limiting part.
How Does Cable Construction Affect Real RF Assembly Selection?

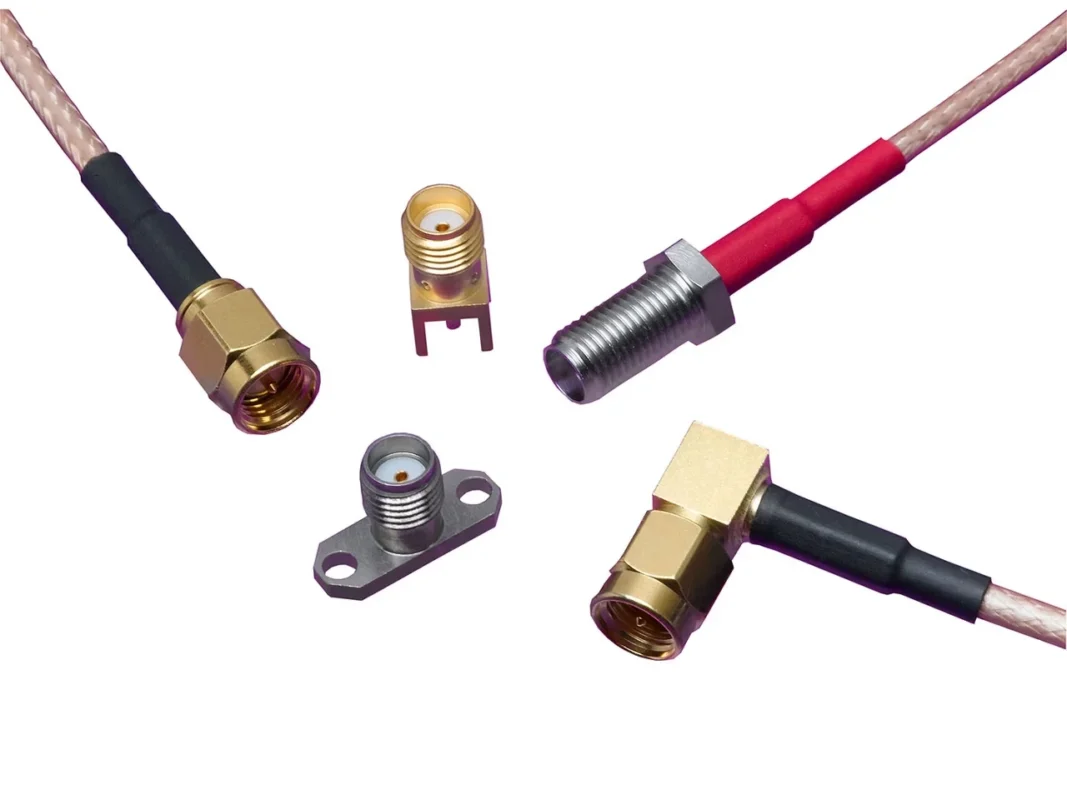

A right angle SMA RF cable assembly provides flexible routing in compact electronic systems. It is commonly used for wireless communication equipment, RF modules, antennas, and laboratory test setups.
When engineers evaluate a low loss RF cable assembly, the important information is usually not a single specification.
A practical request normally includes:
- Cable type
- Operating frequency
- Required length
- Allowable attenuation
- Connector interface
- Impedance
- Installation environment
- Testing requirement
For example, an RF buyer requesting a cable assembly for a 5 GHz antenna system should not only specify “SMA cable.”
A clearer requirement would include:
- 50Ω impedance
- SMA male to SMA female
- Operating frequency up to 6 GHz
- Required cable length
- Maximum allowable insertion loss
- VSWR requirement
This information allows the supplier to recommend a suitable cable structure instead of simply matching connectors.
In RF applications, the cable is part of the circuit. Treating it as a simple accessory is one of the easiest ways to create unexpected signal problems.
How Do You Select a Low Loss RF Cable for Your Application?
A cable that performs well in one RF system may not be suitable for another.
This is a common situation during cable sourcing. A buyer may request a “low loss” cable because the application requires better transmission performance, but the actual requirement is usually more specific. A 30 cm cable inside a test fixture and a 5 m antenna feed line may both need low attenuation, but the selection criteria are completely different.
Before selecting a low loss RF cable, engineers usually need to define three basic conditions:
- How high is the operating frequency?
- How long is the cable route?
- How much signal loss can the system tolerate?
Without these details, “low loss” is only a general description rather than a measurable requirement.
Match Cable Attenuation with the Operating Frequency
The first mistake in RF cable selection is comparing attenuation values without checking the frequency point.
A cable datasheet normally provides attenuation values at different frequencies. A cable that shows excellent loss performance at 1 GHz may not maintain the same result at 6 GHz, 12 GHz, or higher frequencies.
As frequency increases, several loss mechanisms become more noticeable:
- Conductor loss increases
- Dielectric loss increases
- Manufacturing tolerance becomes more important
- Connector transitions become more sensitive
For this reason, RF engineers usually select a cable based on the actual working band instead of the maximum frequency number alone.
For example:
A cable specified as DC–6 GHz may work well for many wireless applications. However, if the system operates continuously near 6 GHz, it is better to check attenuation, VSWR, and frequency margin instead of assuming the cable will perform equally across the entire range.
The cable with the lowest published loss is not always the best choice. A larger low loss cable may create installation problems, while a flexible cable with slightly higher loss may be more suitable inside compact equipment.
Balance Cable Diameter, Flexibility, and RF Performance
Low attenuation and mechanical flexibility often compete with each other.
A portable communication device may require a smaller flexible coaxial cable because repeated bending is unavoidable.
The correct choice is always a compromise between electrical performance and mechanical requirements.
Select Cable Specifications Based on Installation Conditions
RF cable selection should include environmental factors, not only electrical parameters.
A cable installed indoors on a test bench experiences very different conditions compared with a cable installed outdoors near an antenna.
Important factors include:
- Minimum bend radius
- Operating temperature
- Mechanical vibration
- Moisture exposure
- Pull force during installation
- Repeated mating cycles
For outdoor antenna systems, additional attention may be required for:
- Jacket material
- Weather resistance
- Connector sealing
- Long-term mechanical stability
For test equipment, priorities may shift toward:
- Phase stability
- Repeatability
- Low insertion loss variation
- Accurate measurement results
The same cable type should not automatically be used across different environments.
Low Loss RF Cable Selection Matrix
The following matrix can help buyers quickly compare cable priorities before requesting a quotation.
| Application Requirement | Recommended Cable Feature | Main Reason |
| Long antenna cable distance | Lowest practical attenuation | Reduce accumulated signal loss |
| High-frequency microwave system | Low loss microwave-grade cable | Maintain performance near upper band |
| Compact equipment installation | Flexible coaxial cable | Easier routing and assembly |
| RF laboratory measurement | Precision cable assembly | Better repeatability and test accuracy |
| Outdoor communication equipment | Durable jacket + strong shielding | Improve environmental resistance |
| Short internal connection | Standard RF cable may be sufficient | Avoid unnecessary cost |
This type of comparison is useful during BOM preparation because it prevents selecting cable only from connector appearance or unit price.
How Does Cable Length Affect Low Loss RF Cable Selection?
Different RF cable assembly configurations use specific connector interfaces to meet frequency range, impedance, and installation requirements. Proper selection helps maintain stable signal transmission.
Cable length is one of the easiest factors to underestimate.
A cable may have acceptable attenuation per meter, but the total loss can become significant after installation.
For RF systems, the final loss is not only the cable itself. The complete transmission path may include:
- Cable attenuation
- Connector insertion loss
- Adapter loss
- Transition loss
A longer cable route increases the influence of every small loss source.
Calculate Total Transmission Loss Before Ordering
A simple calculation can help estimate whether the selected cable is suitable.
This calculation helps engineers estimate whether the RF path still has enough margin.
For procurement communication, the following information should normally be confirmed:
| Parameter | Required Information |
| Cable Type | RG series / LMR series / semi-flex / low loss type |
| Frequency | Operating GHz range |
| Cable Length | Required assembly length |
| Attenuation | Maximum acceptable dB value |
| Connector Loss | Connector quantity and specification |
| Total Loss | Allowable system loss |
Avoid Choosing Cables Only by Physical Size
A thicker cable often looks like a better choice, but appearance alone does not determine RF performance.
The datasheet should always be checked for:
- Attenuation curve
- Frequency range
- Impedance
- VSWR
- Shielding performance
- Mechanical specifications
In RF sourcing, the cable diameter is only one part of the decision.
The real question is whether the cable can maintain the required electrical performance after installation.
How Do Connectors Affect Low Loss RF Cable Performance?

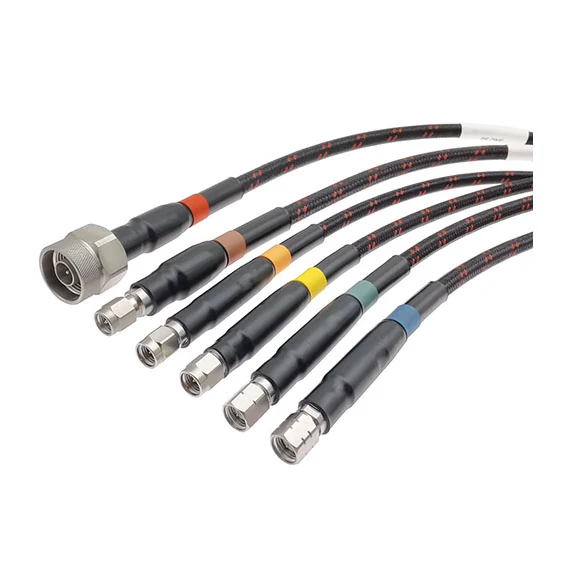

The BNC to SMA RF cable assembly provides a reliable connection between different RF interfaces. It is suitable for laboratory testing, communication equipment, and signal measurement applications.
Many RF cable problems are not caused by the cable itself.
During sourcing, buyers often focus on the cable model first. They compare attenuation values, frequency ratings, and cable diameter, then select a connector afterward. In practice, this order can create problems.
The connector is not just a mechanical interface. It is part of the RF transmission path.
A cable assembly contains several transitions:
- Equipment port to connector
- Connector to cable
- Cable dielectric to connector dielectric
- Center conductor connection
- Shield connection
Any mismatch in these areas can affect insertion loss and return loss.
This becomes more obvious at higher frequencies. A connection that works normally at a low frequency may show unstable results when tested near the upper operating band.
A typical example is replacing an existing cable with a similar-looking model. The SMA interface fits, the cable length is correct, and the device powers on. However, the RF test result changes because the new cable uses a different internal structure or connector termination method.
The outside dimensions are similar. The electrical behavior is not.
Check the Cable and Connector as One Assembly
When requesting an RF cable assembly, the connector should always be considered together with the cable.
A common mistake in purchasing communication is sending only:
“Need SMA cable, 1 meter.”
This description leaves many unanswered questions.
A supplier still needs to confirm:
- SMA male or female
- Standard SMA or reverse polarity
- Cable type
- 50Ω or 75Ω system
- Working frequency
- Required loss level
- Termination method
For example, SMA connectors are commonly used with many different coaxial cables, including RG316, RG58, RG142, and low loss coax cables.
However, the connector body designed for one cable size may not match another cable correctly.
This is why experienced RF buyers usually specify the complete assembly instead of purchasing connectors and cables separately.
Why Connector Transitions Create Additional RF Loss
The total loss of an RF connection is not only determined by the cable.
A simplified RF path can be viewed as:
Signal Source → Connector → Cable → Connector → Load
Each section can introduce loss.
The main factors include:
Connector Insertion Loss
The connector itself introduces a small amount of loss because the RF signal passes through contact points and material transitions.
For many low-frequency applications, this value may be small enough to ignore.
At higher frequencies, connector design becomes more sensitive.
Impedance Discontinuity
RF systems normally use controlled impedance, such as 50Ω.
If the geometry changes suddenly inside the connection area, part of the signal energy may reflect back.
Possible causes include:
- Incorrect connector selection
- Poor assembly dimensions
- Damaged dielectric
- Improper soldering
- Mechanical deformation
Adapter Stacking
Another frequently overlooked issue is using too many adapters.
For temporary laboratory setups, adapter combinations may be acceptable.
For production equipment, every additional adapter creates another transition point.
A direct cable assembly is usually easier to control than:
Equipment port → adapter → adapter → cable → adapter → device
The fewer unnecessary transitions, the easier it is to maintain consistent RF characteristics.
How Are Low Loss RF Cable Assemblies Verified Before Shipment?
A cable assembly can look perfect and still fail an RF test.
Visual inspection can confirm:
- Correct connector appearance
- Cable length
- Label information
- Mechanical condition
However, it cannot confirm whether the assembly meets the required RF characteristics.
For low loss RF cable assemblies, electrical testing is normally required.
Test Insertion Loss at the Actual Operating Frequency
Insertion loss is one of the main values used to evaluate cable assemblies.
The test result should match the real application.
For example:
A customer using a cable at 5.8 GHz should not only check a low-frequency measurement. The important question is whether the assembly maintains acceptable loss near 5.8 GHz.
Testing should consider:
- Frequency range
- Cable length
- Connector quantity
- Required loss limit
A longer cable naturally creates more loss. Multiple connectors also increase the total RF path loss.
Check VSWR Before the Cable Goes Into Production
A continuity test only confirms that current can pass through the assembly.
A sample may pass basic inspection but fail after installation because the cable is bent too tightly or the connector area receives mechanical stress.
For this reason, RF cable inspection should consider both electrical testing and the final installation environment.
Low Loss RF Cable Assembly Acceptance Checklist
Before accepting an RF cable assembly, buyers can use the following checklist.
| Inspection Item | Confirmation |
| Cable model | Match approved specification |
| Connector interface | Correct type and gender |
| Impedance | 50Ω system confirmed |
| Frequency range | Covers actual working band |
| Cable length | Measured according to requirement |
| Attenuation | Tested or verified |
| VSWR | Checked when required |
| Appearance | No damage or deformation |
| Test record | Available for production tracking |
This checklist is especially useful for repeat orders.
Many RF issues happen not because the first sample was wrong, but because later production batches changed cable material, connector supplier, or assembly process.
When Is a Low Loss Cable Assembly Worth Choosing?
Not every project requires the lowest possible attenuation.
A cable with stable electrical characteristics helps improve repeatability between tests.
Microwave Applications
At higher frequencies, small differences in cable construction and connector quality become easier to detect.
The selection should focus on the actual operating requirement rather than simply choosing the highest frequency label.
What Should Buyers Confirm Before Ordering a Low Loss RF Cable?
A supplier can only recommend the right cable when the working conditions are clear.
FAQ
Why is the connector type not enough when requesting an RF cable assembly?
The same connector interface can be used with different cable structures. For example, an SMA connector assembly may require different internal designs depending on whether it is used with RG316, RG58, RG142, or another coaxial cable. The cable diameter, center conductor, dielectric, and termination method all need to match.
Is a low loss RF cable always the best choice for every application?
Not necessarily. A lower attenuation cable is useful when signal margin is limited, but it may also have a larger diameter and reduced flexibility. For compact equipment or applications with frequent bending, a flexible cable with slightly higher loss may be a better fit. The cable selection should match the actual installation condition.
We already use SMA connectors. Why do we still need to confirm the cable type?
Because the SMA interface only defines the connection method, not the complete cable assembly. Different coaxial cables require different connector structures behind the interface. If the cable diameter, center conductor size, or termination method does not match, the assembly may show higher loss or unstable RF results even though the connector can be installed normally.
A short RF cable works well in testing. Why does the longer version have more signal loss?
Cable loss increases with length. A short cable may hide the attenuation difference because the total loss is very small. When the same cable is extended for an antenna installation or a longer RF connection, the accumulated loss becomes more noticeable. The working frequency also needs to be considered because attenuation usually increases at higher frequencies.
What details should I send when asking for a low loss RF cable quotation?
The more application details provided, the easier it is to select the correct cable. A useful request normally includes the connector interfaces on both ends, cable length, operating frequency, impedance, installation environment, quantity, and any required test data.
