Your Trusted Custom RF Antenna Manufacturer
Our comprehensive portfolio of RF antennas is engineered to support a diverse range of critical sectors, including 5G network infrastructure development, industrial Internet of Things (IIoT) deployments, and advanced aerospace communication systems. Guided by a commitment to technical excellence and uncompromising quality, we continuously push the boundaries of conventional antenna design, delivering solutions that exceed industry standards and anticipate future technological advancements.
Each RF antenna we create is a masterpiece tailored to your precise specifications. From high-gain parabolic antennas for satellite links to compact MIMO arrays for urban 5G cells, our team of seasoned engineers specializes in translating complex requirements into tangible, high-performance solutions
Simply select the RF antenna types and specifications that suit your customization needs. Leave the rest to us.
Our RF Antennas offer a diverse range of styles designed to meet the unique demands of various communication scenarios. Whether you’re looking for compact solutions for portable devices or high-performance antennas for industrial applications, our collection covers it all. With a blend of cutting-edge functionality and sleek design, our antennas are engineered to provide optimal signal transmission while ensuring durability and efficiency. From mobile applications to complex communication systems, we cater to both consumer and professional needs. Our antennas combine advanced technology with versatility, making them the ideal choice for enhancing network performance across diverse environments. Tailored for businesses seeking reliable bulk purchases, our products ensure broad market appeal and seamless integration into a variety of systems. With each antenna, we promise not only unmatched technical performance but also an elevated user experience. Whether for everyday use or specialized industry requirements, our RF antennas are designed to complement your communications infrastructure and elevate your technology to the next level. Explore our range today and connect with the future of communication.
Custom RF Adapter Cables Catalog
RF Antennas: Built for High-Efficiency, High-Reliability Signal Transmission
Tejte provides a comprehensive portfolio of RF Antennas, engineered to deliver robust signal reception and stable connectivity across critical communication bands. Our antennas support a wide spectrum of frequencies—from 433MHz and 2.4GHz to 4G/5G cellular bands—ensuring reliable performance in IoT, M2M, industrial, and consumer applications.

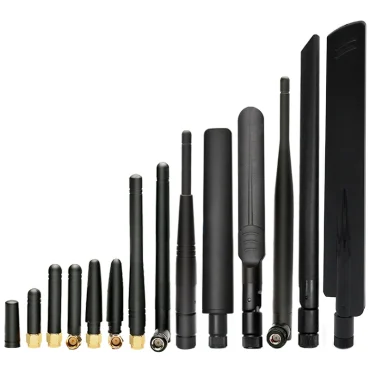

5.8G suction cup/glue stick/built-in antenna
5.8G antenna series deliver dual-band 2.4G/5.8G signal boost for routers, drones, and IoT devices. These omnidirectional antennas feature up to 8dBi gain and foldable 90-degree design for flexible placement in tight spaces.
Key specs include 2400-2500/4900-5900MHz frequency range, 50-ohm impedance, and VSWR ≤2.0 for stable transmission. Built to handle -40℃ ~ +80℃ conditions with black/white color options.

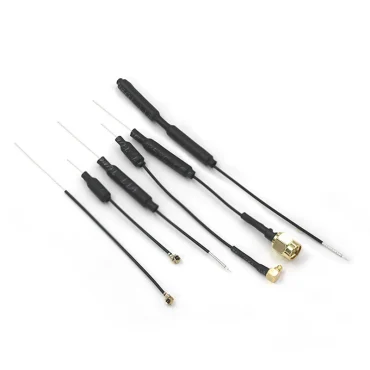

4G suction cup/glue stick/built-in antenna
4G antenna series provide robust signal reception for 4G LTE devices using solid copper tube construction and 50-ohm impedance matching. Core specifications cover key 4G frequency bands with 1dBi to 3dBi gain options, ensuring stable connectivity via SMA internal screw/internal pin or IPEX-1 connectors.
Electrical properties feature low-loss RF1.13 cable for minimal attenuation and high interference resistance. Constructed with all-copper tube design and protective sheath, enduring continuous outdoor operation.

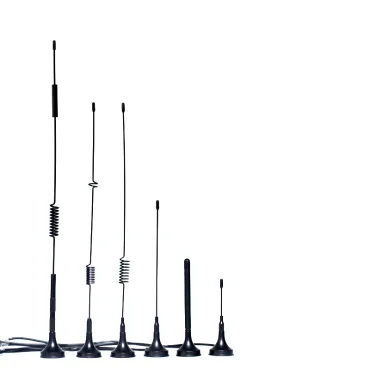

3G suction cup/glue stick/built-in antenna
3G/4G/GSM antenna series deliver high-gain signal boost for vehicle-mounted routers and industrial equipment. These magnetic-mount antennas feature a 12dBi omnidirectional gain and cover 700-2700MHz frequencies with 50-ohm impedance for stable 3G/4G connectivity.
Key specs include spring-loaded whip design, 3cm magnetic suction cup, and 6mm internal pin SMA connector. Built with solid copper resonator and RG174 coaxial cable (1.5/3/5m lengths), handling -40℃ ~ +85℃ conditions and 50W max power.

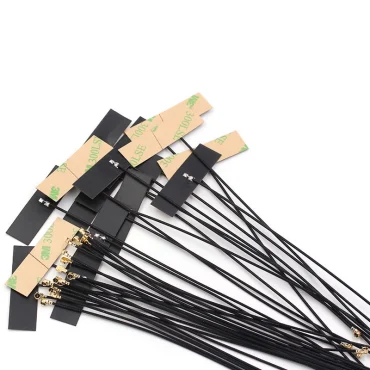

2.4G suction cup/glue stick/built-in antenna
2.4G FPC antenna series provide flexible, high-performance signal coverage for Wi-Fi and Bluetooth-enabled devices. These thin, adhesive-backed antennas feature a 5dBi gain and operate within the 2400–2500MHz frequency range, making them ideal for integration into compact electronics like laptops, routers, and IoT modules.
Key specifications include a compact 42×20×0.3mm panel size, FPC construction with 3mm adhesive backing for easy mounting, and options for IPEX 1st/4th generation or solder-on connectors. Built with fully gold-plated copper layers and flexible RF1.13 cable featuring a high-density braided shield, these antennas ensure minimal signal loss and reliable performance in a wide range of environmental conditions.

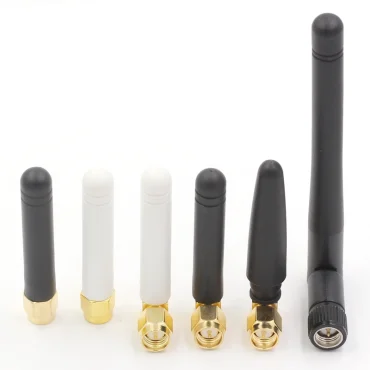

433M suction cup/glue stick/built-in antenna
433M antenna series deliver reliable, low-power wireless links for surveillance and IoT devices. These compact stick antennas feature 3dBi omnidirectional gain and operate at 433MHz with 50-ohm impedance, ensuring stable signal transmission over a wide area.
Key specs include SMA straight/right-angle connectors, 5–11cm cable length, and support for up to 50W power. Built with all-copper inner contacts and rated for -40℃ to +85℃ environments, they resist interference and minimize signal loss.

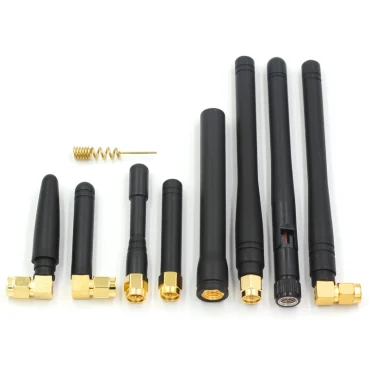

GPRS/GSM suction cup/glue stick/built-in antenna
GPRS/GSM antenna series provide reliable cellular connectivity for IoT devices and vehicle terminals. These quad-band omnidirectional antennas operate across 700-2700MHz with 3-5dBi gain and VSWR <1.8, ensuring efficient signal transmission with 50-ohm impedance.
Key features include a flexible antenna rod adjustable from 0° to 90°, SMA straight/right-angle connectors with pure copper inner threads, and high-quality coaxial cable (5-11cm length). Constructed with ABS housing for interference resistance, they operate reliably from -40℃ to +85℃.

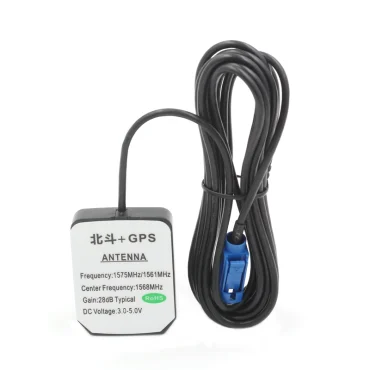

Beidou Antenna
Beidou Antenna series deliver dual-mode Beidou + GPS navigation for vehicle tracking and positioning systems. Operating at 1575MHz/1561MHz with a center frequency of 1568MHz, these antennas provide high 28dBi gain and VSWR ≤1.5 at 50-ohm impedance.
Electrical specifications include 3.0–5.0V DC voltage and 5±2mA current consumption. Designed with magnetic base mounting, ABS waterproof housing, and RG174 coaxial cable (1.5/3/5m lengths), they support right-hand circular polarization and operate from -35℃ to +80℃.
Material & Craft Customization – Tailored for Your Industry Nee
As you browse our RF adapter cables, connectors, and adapters, use this material‑craft guide to choose the optimal build configuration—from conductors and plating to insulation and shielding—for your performance, durability, and application demands.
1. Material Categories by Application
- Gold‑Plated Connectors: Enables low‑loss RF jumper cables up to 6 GHz; corrosion-resistant for test labs and telecom systems (common in “gold-plated RF cable”).
- Nickel‑Plated Connectors: Cost-effective and rugged; suitable for outdoor/industrial RF equipment.
- Braided Copper Shielding: Typically ≥85% coverage, blocking EMI up to −85 dB (IEEE-standard braid coverage).
- PTFE / PE Insulation: Withstands temperatures from –55 °C to +200 °C; ideal for aerospace and rugged applications.
2. Craft Specifications & Performance Impact
- Plating Thickness: Common options like 5 μm (standard) and 10 μm (enhanced reliability) improve corrosion resistance and maintain low insertion loss.
- Shield Braid Coverage: 85% standard vs. 100% for extreme EMI, directly correlating with shielding performance.
- Dielectric Tolerance: Precision-extruded PTFE with ±0.1 mm tolerance supports tight impedance control and stable VSWR.
3. Tailored Material + Craft Combinations
- Kevlar‑Reinforced Jackets: enhance tensile strength and abrasion resistance; ideal for rugged, outdoor, or defense‑grade cable assemblies.
- Medical‑Grade Silicone Jackets: support steam sterilization and biocompatibility for medical connector applications.
- Heavy‑Duty Plating + Shielding: extra‑thick gold plating and dense copper braid for marine, satellite, and harsh EMI environments.
4. Validation & Quality Assurance
- Material Traceability: RoHS, UL, MIL‑STD batch‑lot documentation per MIL‑DTL‑17 standards for high‑reliability builds.
- Performance Reports: includes S‑parameter plots, mating‑cycle durability logs, and thermal‑cycling test data—100% tested per high‑reliability specs.
- Batch Traceability: Each batch of cables is bar coded with a serial or batch number; traceable to manufacturing records and test batches.
Make A Sample First？
As your dedicated RF antenna partner, we translate your wireless connectivity needs into high-performance, reliable signal transmission solutions—whether you require a standard dual-band rubber duck antenna or a custom-designed FPC or magnetic-mount antenna. With a full range covering 2.4G/5.8G, 3G/4G, GPS/BeiDou, and 433MHz frequencies, our products are engineered to deliver optimized gain (up to 28dBi for navigation), stable VSWR (≤2.0), and consistent 50Ω impedance, all built with durable materials such as copper radiators, ABS housing, and flexible FPC substrates. Designed for real applications—including routers, drones, IoT devices, and vehicle tracking systems—our antennas undergo rigorous validation to ensure performance across wide temperature ranges (-40℃ to +85℃) and challenging physical conditions. Minimize integration risk with our sample-friendly approach: test 1-3 units in your own environment, with sample costs fully deductible from your volume order. Let us help you enhance signal coverage, strengthen connection stability, and accelerate your product’s time-to-market—request your antenna sample or a free design consultation today at cc7480917828@gmail.com
Quality Inspection Of RF Antennas
To bridge cross-border trust gaps, High-definition real-life photos show the quality inspection specialists’ work site in full view – scanning the contact welding accuracy point by point under the eyepiece magnifier, repeatedly checking the calibration parameters in front of the vector network analyzer data screen, and each inspection process is carried out under strict standards. These real-time records from the final inspection link are our visual commitment to product reliability.. Our structured requirement forms streamline communication, while 3 low-cost validation samples (detailed test reports included) mitigate bulk order risks. With a defect rate of 0.15% (vs. industry 1.8%), our premium RF adapter cables redefine precision. Claim your free sample or design rendering today—sample costs apply to bulk orders. Precision isn’t a promise; it’s a 25-point verified standard.
International Certification
You can totally trust us with all certifications shown below.
What are the common types of RF antennas?
Common RF antennas include rubber antennas, magnetic mount antennas, FPC patch antennas, copper tube antennas, embedded antennas, and navigation antennas. Each type suits applications such as routers, drones, industrial equipment, and vehicle terminals.
What payment methods do you accept?
We accept wire transfer, Western Union, and MoneyGram，For more information, please click here
How should I choose the frequency range of an antenna?
Choose based on the application. For example: 2.4G/5.8G dual-band antennas suit WiFi, Bluetooth, and drones; 3G/4G/GSM antennas are for IoT and communication devices; Beidou + GPS antennas are for positioning and navigation; 433MHz antennas fit security and remote control.
What are the common RF antenna connectors and how to choose?
Common connectors include SMA, IPEX, and soldered cables: SMA is widely used in routers and drones; IPEX fits compact modules; soldered cables suit customized or embedded devices.
How to install different types of antennas?
Rubber antennas are usually screw-mounted and can fold 90°; magnetic mount antennas use a magnet base; FPC antennas come with adhesive for tight spaces; copper tube antennas often use soldered or IPEX connections.
Can RF antennas work in harsh environments?
Most antennas operate from -40℃ to +85℃. High-grade models have waterproof and corrosion-resistant housings, ensuring reliable long-term use in outdoor and industrial environments.
What is your minimum order quantity?
We have no minimum order quantity. We also accept sample orders and can customize the logo, packaging and design of the products. However, we recommend buying more than 100 sets to save shipping costs.
What if the goods received are damaged? How do you solve it?
If the product you received is damaged, please contact us in time. We have a professional team and will solve the problem as soon as possible.
Have a question that doesn't appear here?
If you have searched our Help/FAQ page and still cannot find the answer to your question, please feel free to e-mail us at cc7480917828@gmail.com
Frequently Asked Questions
Welcome to the FAQs on RF Antennas, where we’ll tackle your key questions—from common antenna types and frequency range selection to connector choices, installation guides, and harsh – environment suitability. Whether you’re building wireless communication systems, IoT deployments, or industrial networks, dive in for insights to make confident, signal – optimized decisions.
