Trusted Precision-Made RF Adapter Cable Factory for Global Clients
As a professional brand with 10 years of experience in electronic accessories, we understand your demand for stable device connection. This RF Adapter Cable has passed CE/FCC dual certification, making every device connection a reliable experience with “zero latency”.
RF Adapter Cable | Match 12+ Interfaces | 10M Stable Transmission, Zero Setup Needed
Have you ever had to rework in a conference room due to a mismatched device interface? Have you ever missed the decisive moment in a game due to cable jams? As a 13-year expert in cross-border electronic accessories, we redefine “reliable connection” with this RF adapter that has passed CE/FCC/ROHS triple certification – you only need to choose the length according to the scenario, and we will take care of the problems of stable signal and interface compatibility with our technology.
RG405/086 semi-flexible N-type RF cable
N-type RF line coaxial connection jumper L16
BNC/SMB-JK 086/RG405 semi-flexible RF cable

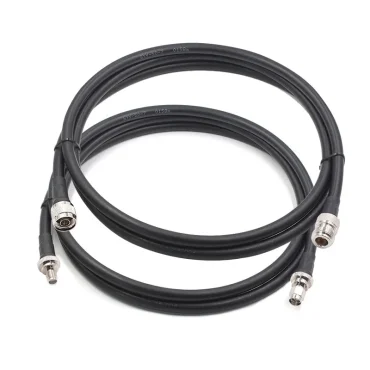

LMR400 Low Loss N Male to N Female Extension Cable
UF.L to L16 test cable RG178/1.13 feeder
IPEX to L16 test cable RG178/1.13 feeder
RG58/142 extension cable 50-3 N female to N male
GPS Router BNC/TNC Male to Female Adapter Cable 50
RF adapter cable silver-plated wire N-J to SMA-KY

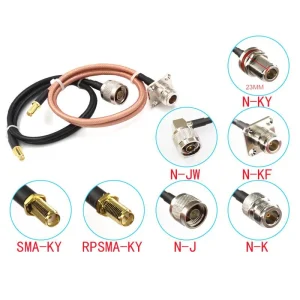

N-J/KF/JW to SMA-J SMA male to N elbow 4-hole flange
3507 Stable amplitude and phase line N-JJ N revolution N revolution
3449 low loss stable amplitude and phase high frequency coaxial test line

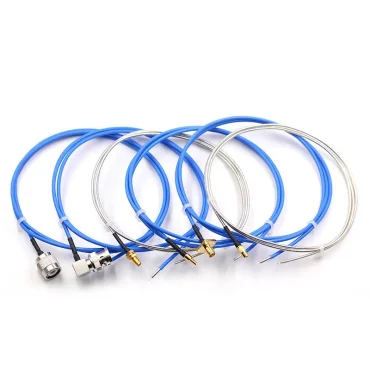

RG405 semi-flexible 086 RF jumper male and female single-ended wire
RG401 high power N type industrial grade coaxial cable 50-5
RG402/141 semi-flexible adapter cable BNC-J to N-KF

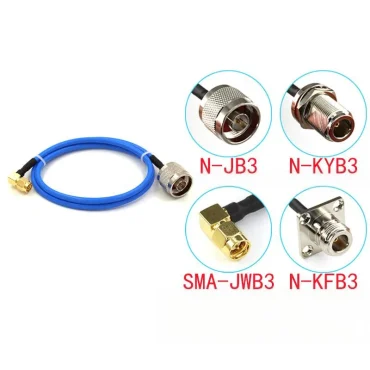

RG402/141 semi-flexible high SMA/N-JJ 18G adapter jumper
RF antenna extension cable SMA bent female pin to N male
RG58/142 N-J/KF/JW to BNC-J elbow male female pin N female 4-hole flange
RG316 BNC male to N-type female oscilloscope adapter feeder
RG142/58 double-layer RF N-type to F British coaxial cable feeder
SYV50-7 N male SMA to N female extension jumper DC0-
RG316 RF adapter cable N-type elbow male to MCX elbow male
RG316 RF silver-plated adapter cable N female to MMCX male connector
RG316 RF coaxial SMA female inner hole to N-type male feeder
N-JK/TNC-JK tinned male and female extension cable 50-1.5

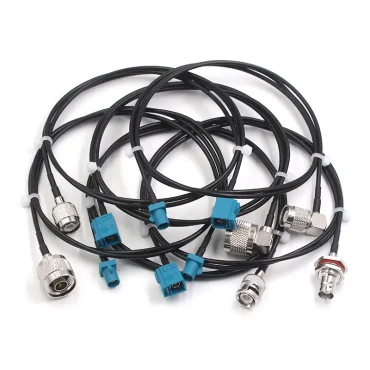

Universal Fakra-Z female to BNC/N/TNC male and female RF antenna
N male to female to alligator clip cable RG316 adapter cable
N-type male-female to 4MM banana plug one-to-two RF adapter cable
RG316 RF feeder N-J antenna extension cable adapter
RG58 RF cable 50-3 N-type male to BNC female Q9 extension cable
SMA male to N male all-copper SYV50-5 RF adapter extension cable
GPS antenna extension cable 0-6G adapter cable RG316 RF cable N type
SMA male screw female pin to N female connector extension cable adapter RG316
RG402/141 semi-flexible high frequency SMA male to N male female 18G adapter jumper
RG58/142 N-J/KF/JW to SMA-K male screw inner hole pin to N elbow male 4 hole flange
N-KF to TNC female reverse polarity RG58/142 connecting line coaxial line 50Ω

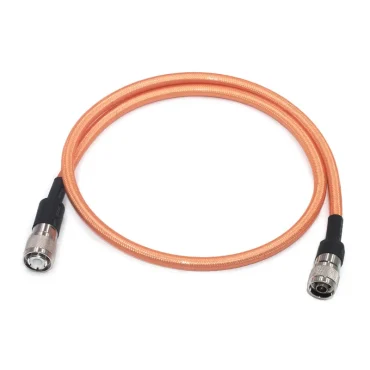

HN male N male RG393 double shielded silver plated high temperature resistant cable 50-7
Custom RF Adapter Cables Catalog
Customized RG405/086 semi-flexible N-type RF cable→
Customized N-type RF line coaxial connection jumper L16→
Customized BNC/SMB-JK 086/RG405 semi-flexible RF cable→
Customized LMR400 Low Loss N Male to N Female Extension Cable→
Customized UF.L to L16 test cable RG178/1.13 feeder→
Customized IPEX to L16 test cable RG178/1.13 feeder→
Customized RG58/142 extension cable 50-3 N female to N male→
Customized GPS Router BNC/TNC Male to Female Adapter Cable 50→
Customized RF adapter cable silver-plated wire N-J to SMA-KY→
Customized N-J/KF/JW to SMA-J SMA male to N elbow 4-hole flange→
Customized 3507 Stable amplitude and phase line N-JJ N revolution N revolution→
Customized 3449 low loss stable amplitude and phase high frequency coaxial test line→
Customized RG405 semi-flexible 086 RF jumper male and female single-ended wire→
Customized RG401 high power N type industrial grade coaxial cable 50-5→
Customized RG402/141 semi-flexible adapter cable BNC-J to N-KF→
Customized RG402/141 semi-flexible high SMA/N-JJ 18G adapter jumper→
Customized RF antenna extension cable SMA bent female pin to N male→
Customized RG58/142 N-J/KF/JW to BNC-J elbow male female pin N female 4-hole flange→
Customized RG316 BNC male to N-type female oscilloscope adapter feeder→
Customized RG142/58 double-layer RF N-type to F British coaxial cable feeder→
Customized RG142/58 double-layer RF N-type to F British coaxial cable feeder→
Customized SYV50-7 N male SMA to N female extension jumper DC0-→
Customized RG316 RF adapter cable N-type elbow male to MCX elbow male→
Customized RG316 RF silver-plated adapter cable N female to MMCX male connector→
Customized RG316 RF coaxial SMA female inner hole to N-type male feeder→
Customized N-JK/TNC-JK tinned male and female extension cable 50-1.5→
Customized Universal Fakra-Z female to BNC/N/TNC male and female RF antenna→
Customized N male to female to alligator clip cable RG316 adapter cable→
Customized N-type male-female to 4MM banana plug one-to-two RF adapter cable→
Customized RG316 RF feeder N-J antenna extension cable adapter→
Customized RG58 RF cable 50-3 N-type male to BNC female Q9 extension cable→
Customized SMA male to N male all-copper SYV50-5 RF adapter extension cable→
Customized GPS antenna extension cable 0-6G adapter cable RG316 RF cable N type→
Customized SMA male screw female pin to N female connector extension cable adapter RG316→
Customized RG402/141 semi-flexible high frequency SMA male to N male female 18G adapter jumper→
Customized RG58/142 N-J/KF/JW to SMA-K male screw inner hole pin to N elbow male 4 hole flange→
Customized N-KF to TNC female reverse polarity RG58/142 connecting line coaxial line 50Ω→
Customized HN male N male RG393 double shielded silver plated high temperature resistant cable 50-7→
Coaxial Cable Cores: Diverse Materials for Robust Signal Pathways
In RF Adapter Cables, the coaxial cable core is a crucial carrier for signal transmission. Different materials of coaxial cable cores possess unique performances and application scenarios, providing strong support for diverse radio – frequency application requirements.
Coaxial cable series
RG58 Industrial Series:Φ0.9mm solid bare copper + Φ2.95mm PE insulation + foil + CCA braid + Φ5.0mm PVC jacket. 50±2Ω impedance, 1.8kW peak power. For -20~70°C industrial LF/MF fixed links (≤3GHz), e.g., factory control cabinets.
3507 Stable-Phase HF Series:1/0.91mm silver-plated copper + Φ2.50mm LD-PTFE + silver tape inner shield + silver-plated braid outer shield + Φ3.60mm FEP jacket. 43GHz max frequency, ±0.3°/GHz phase stability. For phase-sensitive apps (e.g., microwave testing, phased array radar).
RG393 High-Power Series:7/0.80mm silver-plated copper + Φ7.24mm PTFE + dual silver-plated braid + FEP jacket. 1,000MHz operating frequency, 3× higher power handling vs. RG58. For industrial high-power RF devices.
RG141 Semi-Flex Series:0.94mm silver-plated copper + Φ2.98mm PTFE + tinned copper braid + FEP/LSZH/PVC jacket. 8mm single-bend radius balances flexibility & 18GHz HF performance for test benches.
Metal Materials
RG58: Φ0.9mm solid bare copper → ≤27.1Ω/1000m DC resistance. Minimizes skin effect loss for ≤3GHz stability.
3507: 1/0.91mm silver-plated copper (3-5μm Ag) → 8% conductivity gain, 40% lower 43GHz loss vs. bare copper. ±0.3°/GHz phase stability.
RG393: 7/0.80mm silver-plated stranded → Enhanced flexibility/oxidation resistance. 24dB/100m at 1,000MHz.
Insulation Materials
RG58 (PE): Dielectric constant=2.3 (-20~70°C), ≤2Ω impedance deviation. 40% lower cost vs. PTFE.
3507 (LD-PTFE): Dielectric constant=1.9, Df<0.001, 83% velocity factor → 4.2ns/m delay at 43GHz. 60% less distortion vs. PE.
RG393/RG141 (PTFE): 200°C rating, >1,500MΩ·km IR in industrial kiln environments.
Shielding Layers
RG58: Foil (Φ3.05mm) + 16×60/0.12mm CCA braid → 90dB shielding, 40% better 3GHz EMI rejection.
3507: Silver tape inner (95% coverage) + silver-plated braid outer (Φ3.11mm) → >90dB at 43GHz, 60% less leakage.
RG393: Dual silver-plated braid (144×0.15mm + 168×0.15mm) → >100dB shielding, <0.01% EMI impact at 1,000MHz for substations/radar rooms.
Jacket Materials
RG58 (PVC): Φ5.0mm jacket, 3-8 lb/in pull strength. For -20~70°C indoor fixed wiring.
HF Series (FEP): Φ3.60-4.10mm, -55~165°C (200°C for RG393), 5× abrasion resistance vs. PVC. 1,000h salt spray resistance.
RG141 (LSZH): Low smoke density when burning, 12kg pull strength. For data centers/subways requiring fire safety compliance.
The following are the models and parameters of our cable products. Click on the thumbnail to view details.
Material & Craft Customization – Tailored for Your Industry Nee
As you browse our RF adapter cables, connectors, and adapters, use this material‑craft guide to choose the optimal build configuration—from conductors and plating to insulation and shielding—for your performance, durability, and application demands.
1. Material Categories by Application
- Gold‑Plated Connectors: Enables low‑loss RF jumper cables up to 6 GHz; corrosion-resistant for test labs and telecom systems (common in “gold-plated RF cable”).
- Nickel‑Plated Connectors: Cost-effective and rugged; suitable for outdoor/industrial RF equipment.
- Braided Copper Shielding: Typically ≥85% coverage, blocking EMI up to −85 dB (IEEE-standard braid coverage).
- PTFE / PE Insulation: Withstands temperatures from –55 °C to +200 °C; ideal for aerospace and rugged applications.
2. Craft Specifications & Performance Impact
- Plating Thickness: Common options like 5 μm (standard) and 10 μm (enhanced reliability) improve corrosion resistance and maintain low insertion loss.
- Shield Braid Coverage: 85% standard vs. 100% for extreme EMI, directly correlating with shielding performance.
- Dielectric Tolerance: Precision-extruded PTFE with ±0.1 mm tolerance supports tight impedance control and stable VSWR.
3. Tailored Material + Craft Combinations
- Kevlar‑Reinforced Jackets: enhance tensile strength and abrasion resistance; ideal for rugged, outdoor, or defense‑grade cable assemblies.
- Medical‑Grade Silicone Jackets: support steam sterilization and biocompatibility for medical connector applications.
- Heavy‑Duty Plating + Shielding: extra‑thick gold plating and dense copper braid for marine, satellite, and harsh EMI environments.
4. Validation & Quality Assurance
- Material Traceability: RoHS, UL, MIL‑STD batch‑lot documentation per MIL‑DTL‑17 standards for high‑reliability builds.
- Performance Reports: includes S‑parameter plots, mating‑cycle durability logs, and thermal‑cycling test data—100% tested per high‑reliability specs.
- Batch Traceability: Each batch of cables is bar coded with a serial or batch number; traceable to manufacturing records and test batches.
Precision manufacturing and customer-focused service
We prioritize efficiency throughout the OEM and custom production process, ensuring a seamless experience. Our focus extends beyond delivering high-quality electronic components to providing exceptional service that meets your expectations.
Flexible Solutions
Tailored options are available to match your specific needs.
Fast Turnaround
Time is valuable, and we are committed to delivering solutions efficiently.
Advanced Manufacturing
We utilize cutting-edge facilities and technologies to ensure product reliability.
Cost-Effective Process
Our one-stop service helps you reduce expenses and maximize profitability.
Make A Sample First？
Engineered for mission-critical connectivity, our N-Type Adapter Cables deliver DC-43GHz bandwidth with <1.2 VSWR across RG401/3507/RG141 configurations. Featuring 50±2Ω impedance stability and ultra-low attenuation (<0.17dB/m@500MHz for RG401), they integrate silver-plated copper conductors, triple-layer shielding (100dB+ isolation), and 200°C-rated FEP/PTFE jackets—ensuring 3.5kV dielectric strength (RG401) and military-grade thermal resilience (-65°C to +200°C). Optimized for 5G macro-cells, satellite ground stations, and radar power systems, our ISO-certified solutions offer 3507’s ±0.3°/GHz phase stability for precision telemetry and RG141’s 8mm static bend radius for tight antenna arrays. Eliminate field failure risks: Validate with 3 low-cost samples (fully deductible). Claim Your Free High-Power Test Report Now! – OEM-ready with full MIL-STD compliance.
Quality Inspection Of N-type adapter cable
To bridge cross-border trust gaps, High-definition real-life photos show the quality inspection specialists’ work site in full view – scanning the contact welding accuracy point by point under the eyepiece magnifier, repeatedly checking the calibration parameters in front of the vector network analyzer data screen, and each inspection process is carried out under strict standards. These real-time records from the final inspection link are our visual commitment to product reliability.. Our structured requirement forms streamline communication, while 3 low-cost validation samples (detailed test reports included) mitigate bulk order risks. With a defect rate of 0.15% (vs. industry 1.8%), our premium RF adapter cables redefine precision. Claim your free sample or design rendering today—sample costs apply to bulk orders. Precision isn’t a promise; it’s a 25-point verified standard.
International Certification
You can totally trust us with all certifications shown below.
What is an N-Type adapter cable?
An N-Type adapter cable is a coaxial cable designed with N-Type connectors, used to connect devices with N-Type ports to other RF equipment. It is commonly used in RF (Radio Frequency) applications such as telecommunications, wireless systems, test equipment, and broadcasting equipment. The cable offers excellent performance in high-frequency signal transmission and can handle higher power levels compared to other types of connectors.
What payment methods do you accept?
We accept wire transfer, Western Union, and MoneyGram，For more information, please click here
How does the N-Type adapter cable perform in terms of attenuation?
At 100 MHz: 7.66 dB/100m for RG58
At 400 MHz: 21.2 dB/100m for RG58
At 900 MHz: 43.2 dB/100m for RG58
At 3000 MHz: 105.2 dB/100m for RG58
At 6 GHz (RG316): 3.48 dB/m
The attenuation for N-Type cables depends on the specific model and frequency range.
What is the temperature range and bend radius for the N-Type adapter cable?
Operating Temperature Range: –20°C to +70°C for standard versions, suitable for most commercial and industrial environments.
Minimum Bend Radius: Approximately 50 mm, about 5× the cable outer diameter.
Can I customize the N-Type adapter cable?
Yes, the N-Type adapter cable can be customized according to your needs for length, dielectric material, shielding, and jacket color. We offer solutions tailored for specific environments and frequencies.
What is your minimum order quantity?
We have no minimum order quantity. We also accept sample orders and can customize the logo, packaging and design of the products. However, we recommend buying more than 100 sets to save shipping costs.
What if the goods received are damaged? How do you solve it?
If the product you received is damaged, please contact us in time. We have a professional team and will solve the problem as soon as possible.
Have a question that doesn't appear here?
If you have searched our Help/FAQ page and still cannot find the answer to your question, please feel free to e-mail us at cc7480917828@gmail.com
Frequently Asked Questions
Welcome to the FAQs on N-Type Adapter Cables, where we’ll address your key questions—from defining the product and attenuation performance to temperature range, customization, and order support. Whether you’re integrating these cables into RF systems, validating specs, or navigating procurement, dive in for insights to make confident decisions
Custom N-Type Adapter Cables – RG58 Double-Shielded RF Extension Solutions
Optimize RF signal transmission with our custom N-type adapter cables, crafted using RG58 double-shielded coaxial cable. Designed for 50 Ω impedance and low VSWR, these cables deliver reliable, high-quality performance for a wide range of applications, including signal testing, communications systems, and antenna connections.
Constructed with bare copper inner conductors, solid polyethylene insulation, and aluminum foil shielding, these cables provide superior protection against electromagnetic interference (EMI). The copper-clad aluminum braid ensures optimal shielding, while the PVC jacket adds flexibility and durability in various environments.
Ideal for test equipment, signal generators, and network analyzers, these cables are built to handle high frequencies and provide precise, stable connections. Whether you need to extend your test leads or connect devices with N-type connectors, our cables are engineered for durability and low-loss performance.
Key Features
50 Ω impedance ensures compatibility with a variety of RF devices
Double-layer shielding for optimal EMI/RFI protection
Low VSWR (<1.20) for minimal signal reflection
Wide frequency range and reliable performance up to 15 GHz
Flexible and durable design suitable for high-performance environments
With customizable lengths and terminations, these N-type adapter cables are perfect for applications requiring high-quality signal integrity and easy setup. Contact us to discuss your specific requirements and enhance your RF system with precision, reliability, and tailored performance.
