Trusted Precision-Made RF Adapter Cable Factory for Global Clients
As a professional brand with 10 years of experience in electronic accessories, we understand your demand for stable device connection. This RF Adapter Cable has passed CE/FCC dual certification, making every device connection a reliable experience with “zero latency”.
RF Adapter Cable | Match 12+ Interfaces | 10M Stable Transmission, Zero Setup Needed
Have you ever had to rework in a conference room due to a mismatched device interface? Have you ever missed the decisive moment in a game due to cable jams? As a 13-year expert in cross-border electronic accessories, we redefine “reliable connection” with this RF adapter that has passed CE/FCC/ROHS triple certification – you only need to choose the length according to the scenario, and we will take care of the problems of stable signal and interface compatibility with our technology.
RG178 single-head welding RF modified extension cable
Q9 to MMCX RF adapter cable
RG136 MMCX Male to MMCX Male Adapter Cable

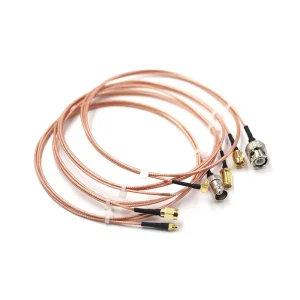

RG316 RF jumper cable BNC male to MMCX male
50Ω RF coaxial jumper SMB male to MMCX male
SMA to MMCX RF extension cable
SMA to MMCX male 086/RG405 semi-flexible coaxial jumper
UF.L to MCX male and female extension jumper RG178/1.13
LMR100 low loss flexible coaxial BNC to SMB-JK adapter cable
MMCX to TNC RF waterproof fixed panel female adapter cable
RG405/086 semi-flexible MMCX to MMCX male and female RF cable
RG178 single-end welding type RF modified extension cable 50-1.5
RG316 coaxial MMCX bent male to MMCX male connector feeder cable
50Ω coaxial RF SMB female to MMCX male silver-plated feeder
RG316 RF coaxial MMCX bent female to SMB female feeder
RG316 RF coaxial adapter cable N-bend male to MMCX male
RG316 high frequency silver plated N female to MMCX female cable
SMA female elbow inner hole to MMCX male extension cable
RF connection jumper MMCX male to SMA female external screw inner pin
IPX to MMCX male and female extension cable RG178/1.13
MCX male to female to alligator clip cable RG316 adapter cable
RG174 flexible RF cable BNC to SMA-JJ adapter cable
RG316 RF coaxial cable MMCX elbow male to BNC female four-hole flange
MMCX curved male single head line connection jumper RG316 RF feeder

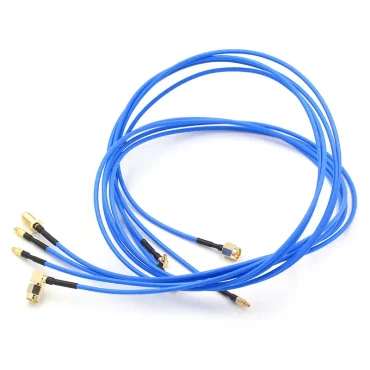

SMA to MMCX male RG405 semi-flexible cable coaxial signal jumper
Male MMCX-JW to SMA-J elbow with internal screw and internal needle
MMCX-JW male angle to SMA-K straight male screw male inner pin

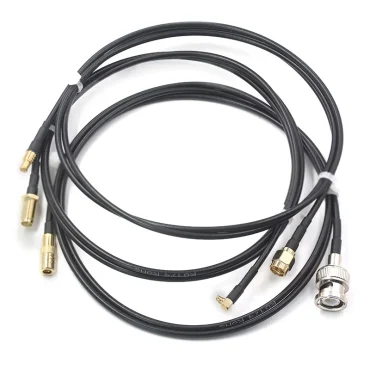

MMCX to BNC adapter cable RG178 coaxial extension cable/MMCX single-ended jumper

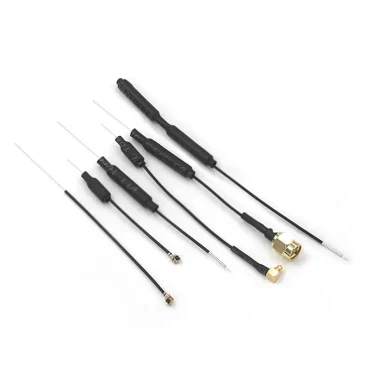

Built-in antenna wifi bluetooth IPEX remote control 5g2.4G dual-band copper tube antenna
UF.L//IPEX to MMCX interface FPV aerial photography 5.8G image transmission
RF radio frequency connection cable Q9 oscilloscope to SMA male connector
MCX to electronic cable UHF/MMCX tinned connection cable male and female extension cable

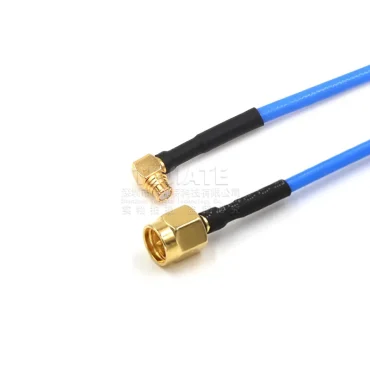

RG316 high frequency connection jumper MMCX male to SMA bent male inner hole
RG316 MMCX female to SMA male SMA inner screw inner needle all copper RF cable
Custom RF Adapter Cables Catalog
Customized RG178 single-head welding RF modified extension cable→
Customized Q9 to MMCX RF adapter cable→
Customized RG136 MMCX Male to MMCX Male Adapter Cable→
Customized RG316 RF jumper cable BNC male to MMCX male→
Customized 50Ω RF coaxial jumper SMB male to MMCX male→
Customized SMA to MMCX RF extension cable→
Customized SMA to MMCX male 086/RG405 semi-flexible coaxial jumper→
Customized UF.L to MCX male and female extension jumper RG178/1.13→
Customized LMR100 low loss flexible coaxial BNC to SMB-JK adapter cable→
Customized MMCX to TNC RF waterproof fixed panel female adapter cable→
Customized RG405/086 semi-flexible MMCX to MMCX male and female RF cable→
Customized RG178 single-end welding type RF modified extension cable 50-1.5→
Customized RG316 coaxial MMCX bent male to MMCX male connector feeder cable→
Customized 50Ω coaxial RF SMB female to MMCX male silver-plated feeder→
Customized RG316 RF coaxial MMCX bent female to SMB female feeder→
Customized RG316 RF coaxial adapter cable N-bend male to MMCX male→
Customized RG316 high frequency silver plated N female to MMCX female cable→
Customized SMA female elbow inner hole to MMCX male extension cable→
Customized RF connection jumper MMCX male to SMA female external screw inner pin →
Customized IPX to MMCX male and female extension cable RG178/1.13→
Customized MCX male to female to alligator clip cable RG316 adapter cable→
Customized RG174 flexible RF cable BNC to SMA-JJ adapter cable→
Customized RG316 RF coaxial cable MMCX elbow male to BNC female four-hole flange→
Customized MMCX curved male single head line connection jumper RG316 RF feeder→
Customized SMA to MMCX male RG405 semi-flexible cable coaxial signal jumper→
Customized Male MMCX-JW to SMA-J elbow with internal screw and internal needle→
Customized MMCX-JW male angle to SMA-K straight male screw male inner pin→
Customized MMCX to BNC adapter cable RG178 coaxial extension cable/MMCX single-ended jumper→
Customized Built-in antenna wifi bluetooth IPEX remote control 5g2.4G dual-band copper tube antenna→
Customized UF.L//IPEX to MMCX interface FPV aerial photography 5.8G image transmission→
Customized RF radio frequency connection cable Q9 oscilloscope to SMA male connector→
Customized MCX to electronic cable UHF/MMCX tinned connection cable male and female extension cable→
Customized RG316 high frequency connection jumper MMCX male to SMA bent male inner hole →
Customized RG316 MMCX female to SMA male SMA inner screw inner needle all copper RF cable→

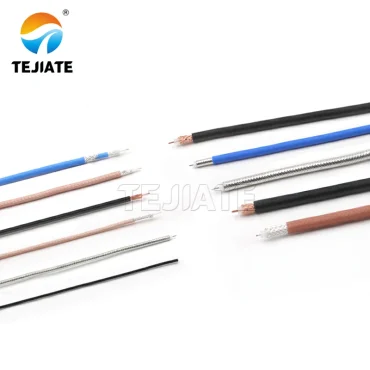

Coaxial Cable Cores: Diverse Materials for Robust Signal Pathways
In RF Adapter Cables, the coaxial cable core is a crucial carrier for signal transmission. Different materials of coaxial cable cores possess unique performances and application scenarios, providing strong support for diverse radio – frequency application requirements.
Coaxial cable series
RG316 HF Micro Series:7×0.175mm Ag-plated Cu/CCS + 1.53mm PTFE + 1.95mm Ag-plated braid (92% coverage) + 2.50mm FEP jacket. Φ2.5mm OD, 15mm bend radius, 2.34dB/m at 6GHz for medical monitors/sat-nav modules.
RG405 Semi-Flex Series:0.53mm Ag-plated CCS + 1.68mm PTFE + 2.17mm dual-tinned braid + 2.60mm FEP jacket. 6mm single-bend radius, 60GHz cutoff. For test equipment/wearable internal links.
LMR100 Entry Micro Series:0.46mm bare Cu + 1.50mm LDPE + foil + tinned Cu braid + 2.90mm PVC jacket. ≤131dB/100m below 3000MHz. Cost-effective micro-connectivity for consumer electronics.
RF1.13 Ultra-Micro Series:32AWG (7/0.08mm) Sn-plated Cu + 0.22mm FEP + 0.92mm Sn-plated shield (90±5%) + 1.13mm FEP jacket. Φ1.13mm OD – industry-leading miniaturization for micro-sensors/compact comms modules.
Metal Materials
RG316: 7×0.175mm Ag-plated Cu/CCS (2-3μm Ag) → 5% higher conductivity, 345Ω/km, 30% lower skin effect loss at 6GHz. 40% flexibility gain.
RG405: 0.53mm Ag-plated CCS → 0.72dB/m at 1GHz (25% lower loss vs. bare Cu), 50% higher flex endurance.
RF1.13: 7/0.08mm Sn-plated Cu → 20% cost saving, 5.17dB/m at 5GHz. S-twist construction enhances fatigue resistance.
LMR100: 0.46mm bare Cu → 30% cost reduction for sub-3GHz consumer apps.
Shielding Layers
RG316: 18-carrier, 48×3×16/0.10mm Ag-plated braid (Φ1.95mm, 92% cov.) → >90dB shielding, >99.9% 6GHz EMI rejection. 5× oxidation resistance, 500h salt spray resistance.
RG405: Dual-tinned braid (95% cov.) → 15% less signal leakage, 70% lower crosstalk in dense modules.
RF1.13: 16/43/0.05mm Sn-plated shield (Φ0.92mm) → 85dB shielding, 60% better EMI rejection vs. unshielded peers.
LMR100: Foil + tinned Cu braid → 85dB shielding, 40% lower cost vs. full-Ag.
Insulation Materials
TFE (RG316/405):Dielectric constant=2.1, Df<0.001, stable IR from -65~150°C. Thickness (1.53-1.68mm) ensures 50±2Ω impedance, ≤1Ω drift at 6GHz.
FEP (RF1.13):Dielectric constant=2.1, 0.22mm thickness → 50±2Ω impedance at Φ1.13mm OD. 40% lower loss at 1GHz vs. PE.
LDPE (LMR100):Dielectric constant=2.3, 100±5pF/m capacitance. 40% lower cost than PTFE.
Jacke Materials
RG316/405 (FEP):Φ2.50-2.60mm, -55~150°C, 3.4kg tensile strength. 60% less abrasion vs. PVC. Resists oils/solvents.
RF1.13 (FEP):Φ1.13mm jacket → 80% less cracking vs. PVC during frequent flexing.
RG405 (Blue FEP):High-visibility blue → 20% faster assembly in complex layouts.
LMR100 (PVC):Φ2.90mm, -20~80°C. 30% lower cost than FEP for high-volume consumer apps.
The following are the models and parameters of our cable products. Click on the thumbnail to view details.
Material & Craft Customization – Tailored for Your Industry Nee
As you browse our RF adapter cables, connectors, and adapters, use this material‑craft guide to choose the optimal build configuration—from conductors and plating to insulation and shielding—for your performance, durability, and application demands.
1. Material Categories by Application
- Gold‑Plated Connectors: Enables low‑loss RF jumper cables up to 6 GHz; corrosion-resistant for test labs and telecom systems (common in “gold-plated RF cable”).
- Nickel‑Plated Connectors: Cost-effective and rugged; suitable for outdoor/industrial RF equipment.
- Braided Copper Shielding: Typically ≥85% coverage, blocking EMI up to −85 dB (IEEE-standard braid coverage).
- PTFE / PE Insulation: Withstands temperatures from –55 °C to +200 °C; ideal for aerospace and rugged applications.
2. Craft Specifications & Performance Impact
- Plating Thickness: Common options like 5 μm (standard) and 10 μm (enhanced reliability) improve corrosion resistance and maintain low insertion loss.
- Shield Braid Coverage: 85% standard vs. 100% for extreme EMI, directly correlating with shielding performance.
- Dielectric Tolerance: Precision-extruded PTFE with ±0.1 mm tolerance supports tight impedance control and stable VSWR.
3. Tailored Material + Craft Combinations
- Kevlar‑Reinforced Jackets: enhance tensile strength and abrasion resistance; ideal for rugged, outdoor, or defense‑grade cable assemblies.
- Medical‑Grade Silicone Jackets: support steam sterilization and biocompatibility for medical connector applications.
- Heavy‑Duty Plating + Shielding: extra‑thick gold plating and dense copper braid for marine, satellite, and harsh EMI environments.
4. Validation & Quality Assurance
- Material Traceability: RoHS, UL, MIL‑STD batch‑lot documentation per MIL‑DTL‑17 standards for high‑reliability builds.
- Performance Reports: includes S‑parameter plots, mating‑cycle durability logs, and thermal‑cycling test data—100% tested per high‑reliability specs.
- Batch Traceability: Each batch of cables is bar coded with a serial or batch number; traceable to manufacturing records and test batches.
Precision manufacturing and customer-focused service
We prioritize efficiency throughout the OEM and custom production process, ensuring a seamless experience. Our focus extends beyond delivering high-quality electronic components to providing exceptional service that meets your expectations.
Flexible Solutions
Tailored options are available to match your specific needs.
Fast Turnaround
Time is valuable, and we are committed to delivering solutions efficiently.
Advanced Manufacturing
We utilize cutting-edge facilities and technologies to ensure product reliability.
Cost-Effective Process
Our one-stop service helps you reduce expenses and maximize profitability.
Make A Sample First？
Engineered for ultra-compact RF systems, our MMCX Adapter Cables deliver DC-18GHz bandwidth with <1.3 VSWR across RG316/RF1.13/RG405 configurations. Featuring world’s thinnest 1.13mm OD (RF1.13) and 6mm static bend radius (RG405), they achieve <0.29dB/m@100MHz (RG316) via silver-plated/tinned copper conductors and 90%+ braided shielding. Critical for 5G IoT modules, medical endoscopes, and drone FPV systems, these ISO-certified cables withstand 150°C temperatures (RG316) and 2000V dielectric strength while supporting >50W power@6GHz (RG316). Solve micro-connection challenges: Validate with 3 low-cost samples (fully deductible). Claim Your Free Micro-Connection Simulation Today! – OEM-ready with full RoHS/REACH biocompatibility data.
Quality Inspection Of MMCX adapter cable
To bridge cross-border trust gaps, High-definition real-life photos show the quality inspection specialists’ work site in full view – scanning the contact welding accuracy point by point under the eyepiece magnifier, repeatedly checking the calibration parameters in front of the vector network analyzer data screen, and each inspection process is carried out under strict standards. These real-time records from the final inspection link are our visual commitment to product reliability.. Our structured requirement forms streamline communication, while 3 low-cost validation samples (detailed test reports included) mitigate bulk order risks. With a defect rate of 0.15% (vs. industry 1.8%), our premium RF adapter cables redefine precision. Claim your free sample or design rendering today—sample costs apply to bulk orders. Precision isn’t a promise; it’s a 25-point verified standard.
International Certification
You can totally trust us with all certifications shown below.
How does an MMCX adapter cable differ from other RF cables?
The MMCX adapter cable features MMCX connectors that are very compact, making them suitable for high-frequency signal connections in tight spaces. This makes them particularly useful in applications requiring space-saving solutions, such as portable devices, wireless modules, and small antenna systems.
What payment methods do you accept?
We accept wire transfer, Western Union, and MoneyGram，For more information, please click here
How do I choose the appropriate length for an MMCX adapter cable?
While MMCX adapter cables are suitable for high-frequency signal transmission, their power handling capacity is relatively low, typically designed for signal transmission rather than high-power applications. For high-power uses, it’s recommended to choose cables that are rated for higher power.
DoesTEJTE build OEM cables?
When selecting an MMCX adapter cable, determine the cable length based on the distance between the connected devices. Longer cables increase signal attenuation, which could degrade performance, while shorter cables may not meet connection needs. It is best to choose a length that suits the device spacing.
Can MMCX adapter cables withstand high temperatures?
Most MMCX adapter cables are rated for an operating temperature range from -20°C to +70°C, making them suitable for general use. For high-temperature environments, cables with FEP or other high-temperature jackets are available, which can tolerate higher temperatures.
What is your minimum order quantity?
We have no minimum order quantity. We also accept sample orders and can customize the logo, packaging and design of the products. However, we recommend buying more than 100 sets to save shipping costs.
What if the goods received are damaged? How do you solve it?
If the product you received is damaged, please contact us in time. We have a professional team and will solve the problem as soon as possible.
Have a question that doesn't appear here?
If you have searched our Help/FAQ page and still cannot find the answer to your question, please feel free to e-mail us at cc7480917828@gmail.com
Frequently Asked Questions
Welcome to the FAQs on MMCX Adapter Cables, where we’ll tackle your key questions—from how they differ from other RF cables and length selection to OEM capabilities, temperature resistance, and order support. Whether you’re specifying cables for high – performance systems, exploring custom solutions, or managing procurement, dive in for insights to make confident, project – aligned decisions.
Custom MMCX Adapter Cables – RG316 High-Frequency Coaxial Extension Leads
Enhance signal reliability with our MMCX adapter cables, made with RG316 high-performance coaxial cable. These cables are designed for 50 Ω impedance, low VSWR, and high-frequency performance. Perfect for connecting test equipment, network analyzers, and signal generators, our MMCX adapter cables provide optimal signal transmission with minimal loss and excellent shielding.
The RG316 cable features silver-plated copper inner conductors, PTFE insulation, and a silver-plated copper braid, ensuring maximum durability and minimal attenuation across frequencies up to 6 GHz. The FEP jacket offers extra protection against environmental factors, ensuring that these cables deliver reliable performance even in harsh conditions.
Key Features
50 Ω impedance for consistent signal transmission
Low VSWR (<1.3) for minimal signal reflection
Double-layer shielding (aluminum foil and braid) for enhanced EMI/RFI protection
High frequency support with minimal signal loss up to 6 GHz
Flexible and durable design for easy installation in tight spaces
Whether you’re working in RF testing, communications systems, or high-frequency applications, these MMCX adapter cables ensure precision, reliability, and long-term durability. Contact us today to discuss custom cable lengths, configurations, and connector options to suit your unique needs.
