Introduction

Wireless communication relies on antennas to send and receive signals. From the WiFi antenna in your home router to the ones enabling cellular networks, each antenna type serves a unique purpose. In this comprehensive guide, we’ll explain what these antennas do and answer common questions about 433MHz antenna, 4G antenna, 5G antenna, GSM antenna, and SMA antenna technologies. By understanding the differences, you can choose the right antenna to improve signal strength, extend range, or meet your project’s needs. We’ll also provide actionable tips (like boosting WiFi signals) and clear up misconceptions (for example, using a TV antenna for 5G). Let’s dive in!

What Is a WiFi Antenna and What Does It Do?

A WiFi antenna is a vital component in any WiFi device – it transmits and receives the radio waves that carry your internet data. In simple terms, the WiFi antenna converts electrical signals from your router or device into wireless RF (radio frequency) signals and vice versa. This enables laptops, smartphones, smart TVs, and gaming PCs to communicate without cables. The antenna typically operates on 2.4 GHz and 5 GHz WiFi bands (and newer 6 GHz for WiFi 6E/7) to provide network connectivity within your home or office.

How it works: When you send an email or stream video, the WiFi antenna radiates the signal as WiFi radio waves. Likewise, when receiving data, the antenna picks up RF signals from the router and your device converts them back into electrical signals. Without a functioning WiFi antenna, your device’s wireless transceiver can’t effectively reach others on the network.
Coverage: A single WiFi antenna typically covers a room or small house area. Range depends on antenna gain (signal focus), transmit power, and obstacles like walls. Standard router antennas might cover ~50–100 feet indoors. For larger homes, you may need multiple access points or extenders to fill dead zones.

What type of antenna is best for WiFi? It depends on your needs. There are two main categories of WiFi antennas:

Omnidirectional WiFi Antennas: These radiate signal in all directions (360° coverage) like a donut shape. Most home routers use omni antennas because they provide broad coverage in every direction. They are best for general indoor use to reach devices all around the antenna. However, their range is moderate – a higher-gain omni antenna can extend coverage somewhat, but if you need very long distance, you may hit limits.
Directional WiFi Antennas: These focus signal in one direction (like a cone or beam) to reach farther distances. Examples include panel antennas, Yagi antennas, or parabolic dishes. A directional antenna is best for point-to-point links – for instance, connecting WiFi between two buildings or across a field. They can greatly increase range (several miles line-of-sight) but cover a narrower area. So for everyday home use, directional antennas are not typical unless you have a specific long-range target.

In practice, the “best” WiFi antenna is one that suits your environment. For most users, the standard omnidirectional WiFi antenna included with routers is optimal for multi-room coverage. If you’re trying to extend WiFi to a distant location (like a detached garage or a neighbor’s house), a pair of directional antennas aimed at each other can be ideal. Some setups even use a combination: an omni to cover local devices plus a directional link for far nodes.

Are external WiFi antennas better? Many devices (phones, tablets, ultrabooks) use internal antennas, which are convenient but limited by size. Desktop PCs or routers often have external WiFi antenna connectors (usually SMA type) to attach larger antennas. An external antenna can improve signal strength by being placed higher or using a design with higher gain. For example, a WiFi antenna for PC – often a small removable dipole – can be upgraded to a larger 5 dBi or 9 dBi gain antenna for a stronger signal. Similarly, a USB WiFi adapter with an external antenna may get better reception than a tiny USB dongle. In short, external antennas can significantly enhance connection quality and stability by capturing more signal, especially in areas with weak WiFi coverage.

WiFi Antenna vs WiFi Extender – What’s the difference? An antenna and an extender are two different solutions to improve WiFi coverage:

A WiFi Extender (Repeater) is an active device that receives your router’s WiFi signal, amplifies it, and rebroadcasts it to cover dead zones. Essentially, it creates a second network zone further out. Extenders are great to extend coverage into areas where the original signal is weak or nonexistent. However, they introduce some complexity – often a separate network name, and they can halve bandwidth because of the receive-then-transmit operation.
A WiFi antenna, on the other hand, is a passive component that can improve the signal strength or range of the router or adapter it’s attached to. Upgrading to a high-gain antenna on your router can concentrate the signal and slightly extend reach in a particular direction (for example, toward upstairs rooms). Unlike an extender, it doesn’t create a new network – it simply boosts the original signal’s focus. But an antenna cannot amplify beyond the radio’s power; it only redistributes signal. So if you have very low signal in an area, just a bigger antenna might not fully solve it, whereas an extender placed midway can pick up and forward the traffic.

How can I make my WiFi signal stronger? Here are some tips to boost WiFi coverage and performance:

Optimize Router Placement: Place your WiFi router or access point in a central, elevated location. Avoid hiding it in a cabinet or corner. Reducing walls and obstructions between the router and your devices helps a lot.
Upgrade Antennas: If your router has detachable antennas, consider higher-gain replacements. For example, swapping a standard 2 dBi antenna for a 8 dBi WiFi antenna can increase range (though the signal pattern becomes flatter/horizontal). Ensure the connector type matches (many routers use RP-SMA – more on this later). High-gain omni antennas will extend distance at the cost of vertical coverage. For extreme range needs, use directional antennas pointed toward the coverage area.
Use Extenders or Mesh: In large homes, a mesh WiFi system or extenders can fill in weak spots. Place a range extender about halfway between the router and the dead zone for best results. This effectively relays the signal further.
Reduce Interference: Microwaves, cordless phones, or neighboring WiFi networks can interfere with 2.4 GHz WiFi. Use the 5 GHz band if possible (less interference, though shorter range). Also, switch to less crowded WiFi channels.
Update and Secure: Keep router firmware updated for optimal performance. Using modern WiFi standards (WiFi 5/6/7) can significantly improve speeds and range. Also ensure others aren’t hogging your bandwidth (secure your network with a strong password).

By following these steps, you can often triple your WiFi range or at least eliminate common weak signal issues, all without resorting to drastic measures. Small tweaks like adjusting antenna angle (try positioning one antenna vertically and another horizontally on a dual-antenna router) can help devices at different orientations (some laptops prefer vertically polarized signals, for instance).

Use Cases – WiFi Antennas Everywhere: WiFi antennas come in various forms for different devices:

Router Antennas: Most WiFi routers have external rod-style antennas (or internal patches in sleeker designs) to broadcast the signal. High-performance routers might have 4, 6, or even 8 antennas for MIMO (multiple data streams).
Laptop and Phone Antennas: These are typically internal – running along the screen bezel or phone chassis. They are carefully tuned, but generally lower gain than external ones.

Desktop PC WiFi: PC motherboards or PCIe WiFi cards often include screw-on dipole antennas via RP-SMA connectors. Users can position these antennas or even use extension cables to reduce interference from the PC case.
USB WiFi Adapter: Many USB adapters have a small antenna that can pivot. Some high-end ones include two detachable antennas for better reception.
Smart TV & IoT: Smart TVs, streaming devices, and IoT gadgets (like security cameras, smart appliances) have built-in WiFi antennas to connect to your network. These are usually compact printed antennas on the circuit board.
Outdoor WiFi Antennas: For farms, campsites, or enterprise use, specialized weatherproof WiFi antennas (panels, sector antennas, etc.) can be mounted outdoors on poles to create long-range links or coverage across open areas (e.g., connecting two buildings’ networks). These often use directional antennas to cover hundreds of meters or more.

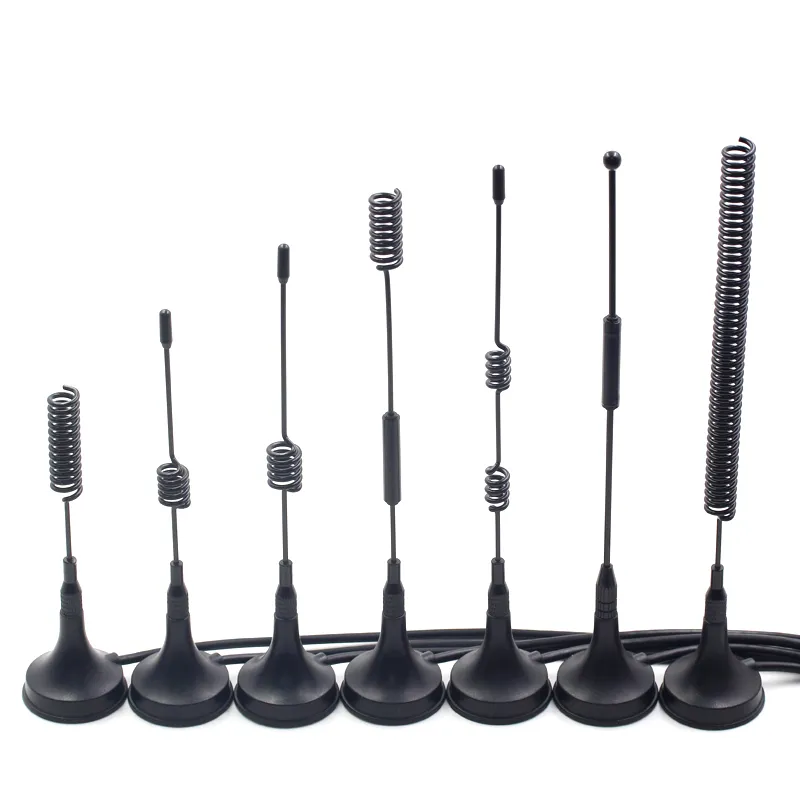

433MHz Antenna – Range, Frequency, and DIY Tips

A 433MHz antenna is designed for devices that operate at around 433 MHz frequency. This frequency falls in the ISM (industrial, scientific, medical) band in many regions, meaning it’s used for low-power, license-free transmissions. 433 MHz is much lower than WiFi or cellular frequencies, which gives it some distinct characteristics:

Longer Wavelength: At 433 MHz, radio waves have a wavelength of about 69 centimeters. Antennas for this band tend to be longer (or coiled) to resonate at this wavelength. A common design is the quarter-wave monopole – approximately 1/4 of the wavelength long. For 433 MHz, a quarter-wave antenna is about 17 cm (~6.7 inches) in length. This is why you’ll often see 433 MHz whip antennas around 17 cm long – it’s the optimal length for efficient radiation (the antenna is tuned to a quarter of the wavelength, which makes it resonant).
Uses of 433MHz: This band is popular for short-range wireless devices such as remote controls, key fobs for cars, wireless doorbells, some hobby drones, weather stations, and many IoT sensors. It’s also used in HAM radio and certain LoRa (Long Range) IoT communications in some countries. For instance, LoRa modules in the 433 MHz band can connect sensors over long distances for agriculture or industrial monitoring.

How far can 433MHz reach? The range of a 433 MHz system varies widely based on transmission power, antenna quality, and environment:

Simple cheap RF modules (transmit power only ~10 mW) with basic antennas might achieve 30–100 meters (100–300 feet) under ideal line-of-sight conditions.
Enhanced systems with good antennas can reach several hundred meters reliably.
Using specialized modulations like LoRa at 433 MHz, range can extend to kilometers. For example, with a 2W transmitter and directional Yagi antenna, 433 MHz links over 20 km have been achieved in open areas! However, most consumer gadgets (like a car remote) will only go 10–50 meters because they are low-power and often used in cluttered environments.

One reason 433 MHz can reach far is that lower frequencies generally propagate better through obstacles and incur lower free-space path loss than higher frequencies like 2.4 GHz. Also, there tends to be less interference at 433 MHz since fewer devices (compared to WiFi/Bluetooth) operate there. The trade-off is that 433 MHz is typically used for low data rates (simple sensor data or on/off signals), not high-speed data.

Frequency range of 433MHz: Most systems use a narrow band around 433.92 MHz, which is a common center frequency in ISM band for many regions (in Europe the band is 433.05–434.79 MHz). In the US, 433 MHz can be used in Part 15 unlicensed spectrum at very low power. It’s adjacent to amateur radio 70cm band (420–450 MHz). So broadly, when we say 433 MHz we mean roughly 430–435 MHz range in practice for devices.

Why is the antenna length often λ/4 (quarter wavelength)? Quarter-wave antennas are a popular choice for frequencies like 433 MHz because they offer a good balance of size and performance. At a quarter wavelength, the antenna is resonant and can efficiently radiate radio energy without needing a huge length. A full wavelength at 433 MHz would be ~69 cm which is inconveniently long; a quarter-wave (~17.3 cm) is much more compact while still performing well. Quarter-wave antennas use a ground plane (e.g., the device’s circuit ground or a metal surface) to mirror the other quarter, effectively making it act like a half-wave dipole. In short, λ/4 gives a reasonably high gain for its size and is easy to implement (often just a stiff wire or a spring). This is why many DIY enthusiasts build simple 433MHz DIY antennas by cutting a wire ~17 cm and soldering it to the transmitter module – it’s cheap and effective. There are online 433MHz antenna calculators to compute exact lengths (which may suggest ~16.5–17.3 cm depending on the plastic insulation and environment).

433MHz vs 2.4GHz – Range and Penetration: 433 MHz signals generally travel farther than 2.4 GHz signals given the same power and antenna gains. Lower frequency waves diffract more and penetrate obstacles better (though 433 MHz can still be blocked by metal or thick walls). For example, a 433 MHz signal might go through several walls or trees and still be readable at a few hundred meters, whereas a 2.4 GHz WiFi signal might struggle beyond 50–100 meters with obstacles. Also, the noise floor at 433 can be lower (fewer devices). However, 2.4 GHz carries much higher data bandwidth (WiFi can do hundreds of Mbps, while 433 MHz systems might do only a few kbps). So it’s a trade-off: 433 MHz is great for long-range, low-speed links, whereas 2.4 GHz (WiFi/Bluetooth) is for higher speeds but shorter range. This difference is why many IoT setups use 433 MHz or sub-1GHz for long-distance sensors and use WiFi or Ethernet to backhaul that data at the hub.

DIY and Custom 433 MHz Antennas: Because 433 MHz is popular among hobbyists (Arduino projects, etc.), you’ll find many DIY guides:

Simple Wire Whip: The easiest antenna is a straight copper wire ~17 cm (for quarter-wave) attached to the module’s antenna output. Ensure a good ground reference for the other side of the feed (like a ground plane).
433 MHz Antenna Calculator: Tools can compute the precise length if you know the exact frequency. For 433.92 MHz, quarter-wave in free space is ~17.2 cm. Some adjust a bit shorter to account for the wire’s thickness and insulation (velocity factor).
Antennas for LoRa: LoRa at 433 MHz often uses sturdier antennas – e.g., a 433MHz SMA antenna (a small whip on an SMA connector) that you can attach to an RF module or router. These often come with magnetic bases or mounts for positioning. Many LoRa users also utilize 433 MHz ground-plane antennas or build a simple 433 MHz dipole (two 17 cm elements in opposite directions).
433 MHz Antenna DIY Long Range: For maximum range, hobbyists sometimes build Yagi antennas (multiple element directional antennas) tuned for 433 MHz. This can yield high gain (10 dBi or more) and reach kilometers. There are even designs for 433 MHz antenna with 10 dBi gain using a one-meter long structure with reflectors.

Always remember to match the antenna impedance (usually 50 ohms) and use proper connectors/cables if extending. Many small 433 MHz modules use SMA or RP-SMA connectors to attach external antennas like suction cup or magnetic base antennas.

4G Antenna – Improving LTE Signal

A 4G antenna refers to any antenna designed to operate on the frequency bands used by 4G LTE cellular networks. 4G (Fourth Generation) networks cover a range of frequencies worldwide: common bands include 700 MHz (e.g., Band 28), 800 MHz (Band 20), 1800 MHz (Band 3), 1900 MHz (Band 2), 2100 MHz (Band 1), 2600 MHz (Band 7), and others. Because of this diversity, 4G antennas are usually wideband – capable of working well across multiple bands.

What is a 4G antenna? In a phone or tablet, the 4G antennas are internal structures that enable the device to connect to LTE cell towers. These are typically flat strip or printed antennas tuned for the device’s frequency bands. In other contexts, a “4G antenna” often means an external antenna for boosting cellular reception. For example:

External 4G Antennas: Many 4G LTE routers, hotspots, or modems have ports to connect an external antenna. These antennas can be indoor (e.g., a small desktop LTE antenna with suction cup) or outdoor (larger panel or Yagi antennas mounted on rooftops for rural broadband). People use external 4G antennas to improve signal quality when the built-in antenna isn’t enough (such as in remote areas or inside signal-blocking buildings).

Do 4G antennas work and help? Yes – using an external 4G antenna can significantly improve your LTE signal if you’re in a fringe area. By placing a high-gain antenna in a spot with better reception (like near a window or on a roof) and pointing it toward the cell tower, you can get higher signal strength and quality. This can translate to faster data speeds and fewer dropouts. For instance, a 4G router with two external antenna ports can use a MIMO antenna pair outside to get several extra “bars” of signal where a phone alone might barely connect. It’s important to use the correct type of antenna for your frequency band and to have line-of-sight to the tower if possible.

Omni vs Directional for 4G: If you’re not sure where the tower is or have multiple towers/carriers, an omnidirectional 4G antenna (which receives from all directions) is convenient. It simply boosts gain uniformly. If you know the tower location, a directional 4G antenna (like a Yagi or panel) aimed at it can yield a bigger gain increase (commonly 8–12 dBi gain). Directional antennas are usually better for fixed installations targeting one tower.

Difference between 3G and 4G antennas: There isn’t a fundamental hardware difference – often the same antenna can serve both 3G and 4G, since 3G (UMTS/HSPA) and 4G (LTE) share many nearby frequency bands. For example, 3G might use 850/1900 MHz and 4G might use 700/1700/1900 MHz in the US; an antenna that covers 700–2100 MHz would work for both. The key differences come from network technology: 4G introduced MIMO (multiple antenna use) more extensively. So a 4G device often uses at least 2 antennas for 2×2 MIMO, whereas many 3G devices had one antenna (no MIMO). Thus, your 4G phone or router may have two or more antenna connectors. In short: a 3G antenna and 4G antenna might actually be the same piece of hardware if it’s wideband, but 4G setups usually leverage multiple antennas simultaneously for better throughput.

4G vs 5G antennas: (We will detail 5G next, but briefly) 4G and 5G sub-6 GHz antennas are somewhat similar in that they often cover a broad range of frequencies. However, 5G can also use much higher frequency bands (mmWave), requiring very different antenna designs (phased arrays). Additionally, 5G base stations use massive MIMO arrays with many more elements than 4G. A typical 4G base station might have 2×2 or 4×4 MIMO (a few antenna elements per sector), while 5G can use 64×64 MIMO or more (dozens of tiny antennas in one panel). For the user, some 5G devices still use pairs of antennas (like 4×4 MIMO in phones for 5G), which isn’t drastically different from advanced 4G devices. But the network side, 5G antennas are more complex (we’ll expand on this in the 5G section).

Using 4G Antennas for Home Internet: A growing use case is using LTE as a home broadband connection via a 4G router. In rural areas, a good external 4G antenna setup can make this viable. Users mount an antenna outside, often high up, pointed to the nearest LTE tower. This can turn a one-bar weak signal into a strong connection. Many report substantial improvements by using outdoor panel antennas or even MIMO Yagis. Yes, 4G antennas definitely work for this scenario – but results depend on proper alignment and quality hardware. There are also universal cellular signal booster kits (with donor antennas and indoor rebroadcast units) that amplify 4G (and 3G/2G) signals inside a building.

To summarize, a 4G antenna is any antenna that helps devices communicate on LTE networks. Whether inside your phone or on your roof, it plays a critical role in capturing those cellular signals. Up next, we look at the new generation: 5G antennas.

5G Antenna – Advanced Technology and Common Questions

5G is the fifth generation of cellular networks, and it brings new challenges and technologies for antennas. A 5G antenna can refer to:

The antennas in 5G mobile devices (phones, hotspots).
The antennas on 5G base stations (cell towers).
External antennas for 5G home internet receivers (similar to 4G external antennas, but tuned for 5G bands).

What antenna is used in 5G? 5G uses a mix of antenna types:

Sub-6 GHz 5G: These frequencies (e.g., 600 MHz, 3.5 GHz) use antenna designs not too different from 4G. Phones have small strip antennas for these bands, and towers use panel antennas that support multiple frequencies and MIMO. For instance, a typical 3.5 GHz 5G base station panel might have 64 small antenna elements (Massive MIMO).
mmWave 5G: These are very high frequencies (24–28 GHz, even up to 39 GHz) which require phased array antennas. Because the wavelength is so short (mm range), many tiny antenna elements (100+ in a small array) are used. These actively steer beams (beamforming) to track users. In phones, mmWave 5G antennas are very small phased arrays located around the edges of the device (you might see mmWave modules as little grids behind the phone’s glass/plastic). In base stations, they look like flat panels and use beamforming to cover the area.

A hallmark of 5G is Massive MIMO and beamforming. While 4G also used MIMO, 5G greatly scales it up – dozens of transmit/receive paths and the ability to digitally steer beams. 5G antennas typically are part of Massive MIMO arrays, allowing more users and higher throughput simultaneously. For example, 5G can support configurations like 32×32 or 64×64 MIMO on base stations, compared to 4×4 in 4G. This is why you’ll hear that 5G requires more antennas – both in quantity and density of sites. Because high-frequency 5G signals (especially mmWave) don’t travel far, carriers must deploy many small cells, each with its own antenna arrays.

Does a 5G antenna “work” to improve signal? If we’re talking about external antennas for 5G routers or modems: yes, similar to 4G, connecting a high-gain 5G antenna can boost reception. Many 5G home broadband units have ports for external antennas. Using a directional panel antenna pointed at the 5G tower can mean the difference between barely getting signal and enjoying full-speed 5G. Keep in mind:

For sub-6 GHz 5G (e.g., 3.5 GHz mid-band), external antennas are practical and widely used. They often come as MIMO pairs (two cables) because 5G modems expect multiple antennas.
For 5G mmWave, external antennas are more specialized and less common for consumers, because mmWave is very finicky. Some enterprise setups have mmWave repeaters or specialized antennas, but most consumer devices just rely on their built-in arrays.

Can I use a TV antenna for 5G? This is a question that arises because TV antennas (for HDTV) are made for frequencies like VHF/UHF (174–806 MHz), somewhat near some 5G bands (e.g., 600–700 MHz 5G). However, the answer is no, a TV antenna is not suitable for 5G in most cases. The fundamental differences in frequency range, impedance, polarization, and the lack of 5G-specific features like MIMO and beamforming make TV antennas ill-suited for 5G applications. In other words, even if you could physically connect a TV aerial to a 5G router (which usually you can’t, since connectors differ), it wouldn’t perform well. 5G antennas are engineered for the precise bands and to handle multiple streams; a repurposed TV antenna would be a mismatch. It’s best to use antennas specifically designed for the 5G/LTE bands of your device. They will have the right tuning and typically come with the proper connectors (like SMA or TS9, etc., depending on the modem).

How many antennas does 5G require? There are two angles to this:

On the network side (tower/base station): 5G often uses massive antenna arrays. A single 5G base station panel can contain dozens or even hundreds of antenna elements. Carriers deploy many more 5G cells to cover an area than they did for 4G, especially for high bands. So infrastructure-wise, 5G requires a greater number of antennas deployed, both in quantity per site and number of sites, to blanket an area.
On the device side (phone/router): A 5G phone typically has multiple antennas. For example, many 5G phones use 4×4 MIMO for sub-6 GHz (so 4 antennas for those bands) and have additional mmWave antenna modules (often 3 or 4 around the device). The exact count can vary, but it’s more than older phones which might’ve had 2 for LTE. A 5G home router might have 4 external antenna connectors to support 4×4 MIMO on 5G. In summary, 5G devices often have at least 4 antennas (or antenna ports) to leverage 5G’s capacities. Massive MIMO means the network can support many streams, but your device also needs enough antennas to receive them. Fortunately, these antennas are tiny due to higher frequencies, so even with many antennas, phone designers manage to fit them in compact spaces.

To illustrate, 4G MIMO tops out around 4×4, whereas 5G can go 8×8 or 16×16 in advanced scenarios and typically uses 4×4 in phones. The more antennas, the better it can handle multiple data layers and spatial streams, which translates to higher data rates.

5G Antenna design and placement: 5G antennas, especially for mmWave, must be very carefully designed. The high frequencies don’t penetrate well, so they often place multiple antenna modules in a phone so that at least one has line-of-sight to the signal (for example, top, side, and back of phone). These modules often use phased arrays that electronically steer the beam towards the base station. As a user, you might notice if you cover certain spots on a 5G phone (especially mmWave window areas), the signal drops – that’s because you blocked one of the tiny antenna arrays.

External 5G Antennas for Home: If you use a 5G CPE (customer premise equipment – basically a 5G modem/router), you might mount an external 5G panel antenna outside. These typically cover the sub-6 GHz bands (e.g., 3.3–3.8 GHz) and possibly also LTE bands, since most 5G routers also fall back to LTE. They often have two cables for 2×2 MIMO (some have four for 4×4). Mount it high and point to the cell tower for best results. This can dramatically improve speeds if your indoor signal was weak.

5G and 4×4 MIMO: The term “5G Antenna 4×4” likely refers to a 4×4 MIMO antenna system for 5G. Many 5G home routers advertise 4×4 MIMO capability – meaning they can use four antennas. If you’re buying external antennas, you might need a pair of dual-polarized antennas or four separate antennas to use all 4 streams. Some high-gain directional antennas for 5G come as a set of two panels, each panel carrying two cross-polarized antennas (vertical and horizontal), which together give 4 streams.

In conclusion, 5G antennas are a step beyond 4G’s, incorporating advanced tech to deliver ultra-fast, low-latency connections. They come in many forms but generally, if you’re a consumer asking about 5G antennas, you’re either thinking of the phone’s internal antennas (which you can’t change) or external ones to improve reception for a 5G modem. Use the right type for the right band, and don’t try to jury-rig unrelated antennas (like TV antennas) – it’s not worth it.

GSM Antenna – 2G/3G Cellular and GPS vs GSM

GSM antennas refer to antennas used for GSM networks – the Global System for Mobile Communications. GSM is the 2G cellular network technology (originating in the 1990s), primarily for voice and text, though later versions allowed slow data (GPRS/EDGE). Even though 2G is being phased out in some countries, the term “GSM antenna” is still commonly used, especially for certain modules and IoT devices that use 2G or for describing general cellular antennas for older bands.

What is a GSM antenna? Fundamentally, it’s an antenna that operates on the frequency bands used by GSM networks:

In Europe/Asia: GSM uses 900 MHz and 1800 MHz bands.
In North America: GSM uses 850 MHz and 1900 MHz bands.
So a GSM antenna typically is tuned for those frequencies (either dual-band 900/1800 or quad-band covering 850/900/1800/1900 MHz to be global). Many small stick antennas marketed as “GSM antennas” are actually quad-band cellular antennas that will also work for 3G and some 4G bands because they cover a wide range around those frequencies.

You’ll find GSM antennas in older phones (removable antenna stub on very old cell phones, or internal in modern phones), and in devices like GSM alarm systems, GSM GPS trackers (which send data over 2G), etc. They often connect via SMA or u.FL connectors on modules.

Range of a GSM antenna: The range isn’t a fixed number – it depends on the power of the base station and environmental factors. A GSM cell tower can cover anywhere from a few hundred meters in a dense city (microcells) up to several kilometers in open areas. In fact, GSM had a designed maximum cell range of about 35 km (22 miles) under standard settings. This limit was due to timing constraints in the protocol. With special configurations (Extended Range), GSM can reach around 70–120 km in some cases (e.g., rural or over water). The antenna itself in your phone just needs to be good enough to pick up signal from whatever distance. An external GSM antenna booster setup (yagi antenna + amplifier) could allow a phone to work at the extreme edge of coverage by capturing a faint signal and amplifying it. But practically, if you’re within a few kilometers of a tower, a normal phone’s GSM antenna suffices; beyond that, no antenna will help if you’re out of the coverage footprint.

GSM vs GPS antenna – what’s the difference? This is a frequent point of confusion because both GSM and GPS are wireless and often present in the same device (like a smartphone has both). However:

A GSM antenna is for two-way communication with cell towers (it both transmits and receives). It operates at GSM cellular frequencies (as mentioned, ~800–1900 MHz range typically). It’s usually linearly polarized and designed for mobile communication.
A GPS antenna is a one-way receive-only antenna that listens for signals from GPS satellites. GPS signals are at 1.575 GHz (L1 band) and possibly 1.227 GHz (L2 band) for dual-frequency receivers. GPS antennas are often circularly polarized (because satellite signals are RHCP polarized) and sometimes have a built-in LNA (low-noise amplifier) to amplify the extremely weak satellite signals.

In short, GSM antennas support voice/data transmission in cellular networks, while GPS antennas receive signals from satellites for positioning. They are not interchangeable. If you tried to use a GPS antenna for GSM, it wouldn’t be tuned to the right frequencies and might lack the ability to transmit. Conversely, a GSM antenna used for GPS might not receive well because it’s not circularly polarized or optimized for 1.575 GHz. Devices that have both (like vehicle trackers) will have two separate antennas or a dual-feed combo antenna (one part for GSM, one part for GPS).

As an example: A car GPS tracker usually has a small GSM antenna (maybe a wire or PCB trace for 2G/3G comms) and a separate GPS patch antenna for satellite lock. Some advanced designs combine them but internally it’s still distinct circuits.

Types of GSM antennas: Since GSM is essentially “cellular”, the antenna types overlap with general cellular antenna types:

Whip antennas: External rod antennas, often with an SMA connector, used for GSM modules or routers.
Adhesive or Patch antennas: Flat antennas you can stick on a device’s enclosure or windshield.
PCB antennas: Printed on circuit boards for compact GSM modules.
Outdoor Yagi or Panel: If someone says “GSM antenna” for boosting signal, they might mean a directional antenna tuned for GSM bands to point at a distant tower.
Cell tower sector antennas: Those are large panel antennas on cell towers; they serve GSM (and other tech) but typically we don’t call them “GSM antennas” in casual terms.

GSM antenna connectors: Common connectors on GSM antennas are SMA (or the reverse-polarity variant), TNC, BNC, N-type for bigger outdoor ones, or small u.FL/IPX on module boards.

Users also search: GSM antenna price – Generally, they are inexpensive; a small GSM whip might be $5-$10. GSM antenna types – as covered, can be whip, patch, etc. GSM antenna booster – could refer to a powered repeater system (illegal in some areas without license) or legal certified boosters that cover GSM and other bands by amplifying signals inside a building.

If you need to improve GSM signal specifically (say you have a 2G device in a weak area), the approach is similar to 4G/5G: use a better antenna and possibly a booster. For instance, an external high-gain GSM antenna on a long cable might catch a stronger signal from outside and bring it to your device. Or a GSM repeater (with a donor antenna outside and an indoor antenna) can actively amplify the signal indoors.

SMA Antenna – Connectors (SMA vs RP-SMA) and Their Role

Lastly, the term SMA antenna needs clarification. SMA is not a type of antenna by frequency; it refers to the connector type commonly used to attach antennas to devices. SMA (SubMiniature version A) is a threaded RF connector used for coaxial cable connections, and it’s very popular for antennas up to about 18 GHz. Many WiFi, GSM, 4G, and IoT antennas use SMA connectors.

When someone says SMA antenna, they usually mean an antenna that has an SMA connector (or compatible). For example, a “433 MHz SMA antenna” is a 433 MHz whip with an SMA male connector ready to screw onto a device. Bluetooth SMA antenna would be a 2.4 GHz antenna with SMA connector (since Bluetooth uses 2.4 GHz, the antenna is similar to WiFi). SMA antenna WiFi – indeed most external WiFi router antennas use SMA-type connectors (though often the reverse polarity variant, RP-SMA).

Let’s break down the SMA vs RP-SMA issue:

Standard SMA connectors have a center pin in the male connector (and a center sleeve in the female). On devices, typically the female SMA (with the sleeve and external threads) is panel-mounted, and the antenna has the male (pin and nut) to attach.
RP-SMA (Reverse Polarity SMA) swaps the gender of the pin without changing the threads. So an RP-SMA male has a hole (no pin) even though it has the external threads like a male, and the RP-SMA female has the pin (despite looking like a female connector). This was introduced to comply with regulatory requirements (FCC in the USA) to prevent consumers from easily connecting high-gain antennas – originally you weren’t supposed to mix standard antennas with WiFi gear. RP-SMA was used so that consumer WiFi gear couldn’t use off-the-shelf SMA antennas to increase gain. Now, of course, RP-SMA antennas are widely available too, so it’s a moot point.

Are WiFi antennas SMA or RP-SMA? Most off-the-shelf WiFi routers (especially older 2.4 GHz ones) use RP-SMA connectors for their external antennas. For instance, the router has an RP-SMA female (pin) on it, and the antenna has an RP-SMA male (socket). This means you must buy RP-SMA antennas for them. Many generic antennas are advertised as “WiFi antennas” and come in RP-SMA specifically for this reason. However, some network equipment (like certain access points, ALFA WiFi adapters, etc.) use standard SMA. It’s crucial to check before buying an antenna to ensure connector compatibility.

Electrically, SMA and RP-SMA are the same once connected – there is no performance difference. The only difference is the gender of the pin. As long as you match them properly, an SMA antenna vs an RP-SMA antenna will work identically. You can even get adapters between SMA and RP-SMA if needed.

SMA in telecom: SMA connectors are widely used in telecom and RF electronics because they are reliable up to high frequencies (~18 GHz, and extended versions to 26.5 GHz). You’ll find SMA on cellular antennas, radio transceivers, GPS antennas, and test equipment. For example, many 5G NR sub-6 GHz modules or routers have SMA ports for external antennas – these connectors can easily handle the 3.5 GHz band used by 5G. Even some 5G mmWave test equipment might use precision connectors like 2.92 mm (SMK) or others, but that’s lab gear.

Male vs Female, Plug vs Jack: To avoid confusion:

SMA Male: has a center pin and external threads (threaded nut).
SMA Female: has a center receptacle (hole) and internal threads.
RP-SMA Male: has a center hole (no pin) with external threads.
RP-SMA Female: has a center pin with internal threads.

So an RP-SMA WiFi antenna usually is RP-SMA male (no pin, threads on outside). The router side is RP-SMA female (with pin). People sometimes get tripped up ordering antennas with the wrong gender – e.g., getting a standard SMA when their device expects RP-SMA.

Bluetooth and SMA: Many industrial or DIY Bluetooth modules come with tiny u.FL connectors to which you can attach an external antenna via an SMA pigtail. If you see “SMA antenna for Bluetooth,” it just means a 2.4 GHz antenna with SMA connector. Bluetooth and WiFi share the same frequency band, so an antenna tuned for 2.4 GHz WiFi will work for Bluetooth as well.

SMA Antenna for 5G: A lot of 5G CPE devices use SMA or N-type connectors for external antennas. Typically, sub-6 GHz 5G antennas might come with SMA male connectors to attach to the router’s SMA female jacks. Make sure to use high-quality coax cables if running longer distances, as higher frequency signals (like 3.5 GHz) have more loss in cables.

In summary, SMA antennas are about the connector interface. They are everywhere in RF communications:

WiFi routers (RP-SMA mostly),
GSM/3G/4G modules and boosters (often SMA),
LoRa and 433/868 MHz antennas (SMA),
GPS antennas (often SMA or TNC),
IoT devices (SMA),
even some TV equipment (though TV usually uses F-type or Belling-Lee connectors).

When dealing with SMA, remember the RP variant if applicable, and that the connectors must match to connect. Using an SMA plug with an RP-SMA jack will physically not connect due to the pin mismatch.

FAQ

What does the WiFi antenna do?

A WiFi antenna converts electrical signals into wireless radio waves and vice versa, enabling cable-free communication between devices like routers, laptops, and phones.

What type of antenna is best for WiFi?

For indoor use, omnidirectional WiFi antennas are best. For long-distance point-to-point, use directional antennas like Yagi or panel types.

What is the difference between a WiFi extender and an antenna?

A WiFi extender rebroadcasts the signal to cover dead zones. An antenna passively boosts the signal strength of the router or adapter.

How can I make my WiFi signal stronger?

Use a higher-gain WiFi antenna, optimize router placement, reduce interference, or add a mesh extender.

See TEJTE’s WiFi Antennas for upgrades.

How far can 433MHz reach?

A 433MHz antenna can reach 100–300 meters normally, and up to 20 km with LoRa modulation and directional antennas.

What is the frequency range of 433MHz?

Typically 433.05 to 434.79 MHz, centered around 433.92 MHz for ISM band use.

Why is the antenna length lambda 4?

Quarter-wave (λ/4) antennas are compact and resonant, providing efficient performance with minimal size.

What is the range of 433MHz vs 2.4 GHz?

433MHz signals travel farther and penetrate better through walls, but support lower data rates than 2.4 GHz WiFi.

Do 4G antennas work?

Yes. External 4G antennas improve LTE signal quality and stability, especially in rural or indoor areas.

What is a 4G antenna?

A 4G antenna is tuned to LTE bands (700–2600 MHz) to enable better mobile broadband and faster downloads.

Is there a difference between 3G and 4G antennas?

Often no hardware difference, but 4G uses MIMO, requiring two or more antennas, unlike most 3G.

What is the difference between 4G and 5G antenna?

5G antennas may include phased arrays and Massive MIMO, while 4G uses simpler MIMO panels.

What antenna is used in 5G?

Sub-6 GHz 5G uses panel or internal strip antennas; mmWave 5G uses tiny phased arrays.

Does a 5G antenna work?

Yes, especially outdoor 5G panel antennas help routers gain signal in weak areas.

Can I use a TV antenna for 5G?

No. TV antennas aren’t tuned for 5G frequencies or MIMO features. Use dedicated 5G antennas.

How many antennas does 5G require?

Phones use 4+, towers use 64+ (Massive MIMO). 5G CPE routers often support 4×4 MIMO.

What is a GSM antenna?

It connects to 2G cellular networks, operating at 850/900/1800/1900 MHz.

What is the difference between GSM and GPS antenna?

GSM antennas transmit & receive, GPS antennas only receive satellite signals.

What is the range of GSM antenna?

Typical range is a few kilometers, up to 35 km depending on tower and terrain.

What is an SMA antenna?

An SMA antenna is any RF antenna with an SMA connector, used in WiFi, GSM, 433MHz, GPS, and more.

What is SMA and RP-SMA?

SMA has a center pin, while RP-SMA reverses the gender. WiFi often uses RP-SMA.

Are WiFi antennas SMA or RP-SMA?

Most WiFi routers use RP-SMA connectors. Check your device before buying.

Conclusion

Wireless antennas come in many forms, each with a unique purpose. From the everyday WiFi antenna to the long-range 433MHz antenna, each plays a critical role.

4G/5G antennas bring high-speed broadband to rural areas, while GSM antennas still serve 2G devices. And let’s not forget the tiny SMA connectors holding it all together.

Choosing the right antenna type and installing it correctly can instantly boost signal strength and fix dead zones or weak connections.

For example, upgrading to a high-gain WiFi antenna or adding an external panel antenna can turn unstable internet into a reliable link.

As tech evolves, from IoT devices to Massive MIMO 5G, antennas stay at the center. Smaller, smarter—but still essential for RF communication.

Not sure which one fits your setup? Match by frequency and usage: WiFi for home, LTE for routers, LoRa for sensors, and so on.
