What is radio frequency(RF)？
June 17,2025
1. What is the definition of radio frequency(RF)
Radio frequency (RF)is the abbreviation of Radio Frequency, which means the electromagnetic frequency that can be radiated into space, with a frequency range from 300kHz to 300GHz. Radio frequency is radio frequency current, abbreviated as RF,
It is the abbreviation of a high-frequency alternating electromagnetic wave. Alternating current that changes less than 1000 times per second is called low-frequency current, and alternating current that changes more than 10,000 times per second is called high-frequency current, and radio frequency is such a high-frequency current.
Radio frequency (300K-300G) is a higher frequency band of high frequency (greater than 10K), and microwave frequency band (300M-300G) is a higher frequency band of radio frequency

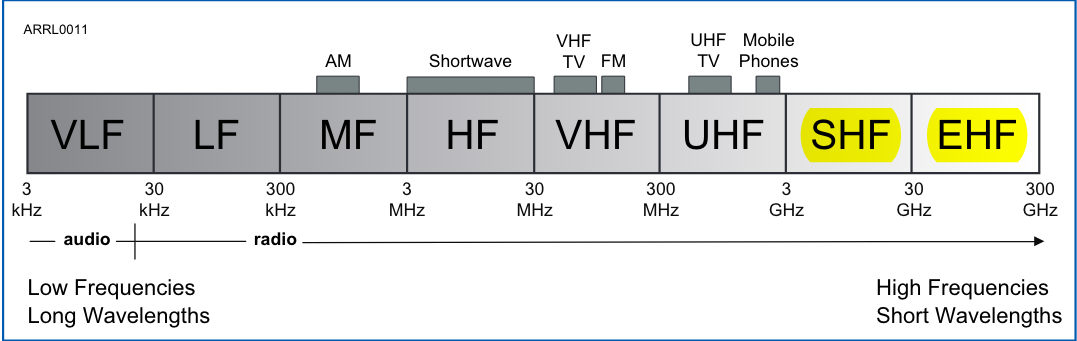

2. Frequency division of radio frequency(RF)
The frequency range of radio frequency is usually defined as from 300 kHz (300 kHz) to 300 GHz (300 gigahertz). This range covers multiple frequency bands, including low frequency (LF), medium frequency (MF), high frequency (HF), very high frequency (VHF), ultra-high frequency (UHF), ultra-high frequency (SHF) and extremely high frequency (EHF). Specifically, the frequency range of radio frequency can be divided into the following parts:
| Range Name | Abbreviation | Frequency Range |
|---|---|---|
| Very Low Frequency | VLF | 3 kHz – 30 kHz |
| Low Frequency | LF | 30 kHz – 300 kHz |
| Medium Frequency | MF | 300 kHz – 3 MHz |
| High Frequency | HF | 3 MHz – 30 MHz |
| Very High Frequency | VHF | 30 MHz – 300 MHz |
| Ultra High Frequency | UHF | 300 MHz – 3 GHz |
| Super High Frequency | SHF | 3 GHz – 30 GHz |
| Extremely High Frequency | EHF | 30 GHz – 300 GHz |
3. Main application areas of radio frequency(RF)
The main application areas of radio frequency technology include the following aspects:
- Communication field: Radio frequency technology is the basis of wireless communication and is widely used in mobile communications (such as mobile phones, 5G basestations), Wi-Fi, Bluetooth, satellite communications, etc., providing high-speed and stable communication services to users around the world.
- Radar and navigation systems: Radio frequency technology is used for target detection and tracking in radar systems and is widely used in military, aerospace, weather forecasting and other fields. At the same time, global positioning systems such as GPS also rely on radio frequency signals for positioning.
- Radio and television and broadcasting: Radio frequency technology is used for the transmission and reception of radio and television signals to ensure signal clarity and wide coverage.
- Radio Frequency Identification (RFID): Radio Frequency Identification technology is widely used in logistics, retail, warehousing, access control systems, medical, agriculture, transportation and other fields to achieve automatic identification of items and information tracking.
- Medical equipment: Radio frequency technology has important applications in the medical field, such as MRI (magnetic resonance imaging), radio frequency ablation therapy, ultrasonic imaging, etc., for disease diagnosis and treatment.
- Industry and Automation: Radio frequency technology is used in industrial automation for wireless sensor networks, remote monitoring, intelligent power inspection, production data monitoring, etc., to improve production efficiency and management level.
- Semiconductor and Photovoltaic Industry: Radio frequency power is used for etching equipment and thin film deposition equipment in semiconductor manufacturing, and in the photovoltaic industry for the manufacturing process of solar panels.
- Aerospace and Defense: Radio frequency technology is used in the aerospace field for flight radar, communication systems, navigation systems, etc.; in the defense field, it is used for electronic warfare, communication systems, precision guidance, etc.
- Internet of Things and Smart Home: Radio frequency technology is one of the core technologies of Internet of Things interconnection, and is widely used in smart home, smart health monitoring, smart transportation and other fields.
- Energy and Power: RF technology is used in power electronics for power conversion, smart grids, new energy vehicles, etc. to improve energy efficiency.
- Consumer Electronics: RF technology is widely used in consumer electronics products such as mobile phones, tablets, wireless headphones, and smart wearable devices.
- Scientific Research and Education: RF technology is used in scientific research and education for signal testing, communication system development, cutting-edge research, etc.
RF technology has a wide range of applications in modern science and technology, covering communications, radar, medical, industrial, agricultural, transportation and other fields, and is an important technical foundation for promoting the digitalization and intelligentization of society.
4. radio frequency(RF) related equipment, etc.
1 RF Front End (RFFE)
- Power Amplifier (PA): Enhances signal strength to support long-distance transmission.
- Low Noise Amplifier (LNA): The receiving end amplifies weak signals and maintains a high signal-to-noise ratio.
- Antenna Switch (Tx/Rx Switch): Controls the switching of the transmit and receive paths to achieve full-duplex communication.
- Filter (SAW/BAW): Filters out-of-band interference (such as frequency band isolation of 5G mobile phones).
2 Frequency Generation and Modulation
- Oscillator (LO/VCO): Generates carrier frequency, and VCO accurately controls frequency through a phase-locked loop (PLL).
- Modulator/demodulator: Loads baseband signal onto RF carrier (transmits) or extracts information from it (receives).
3 Signal Conversion and Processing
- ADC/DAC: A bridge between analog and digital signals, affecting system accuracy (such as the 14-bit ADC of 5G millimeter wave).
- Baseband Processor (BBP): Performs digital signal processing such as encoding/decoding and encryption.
4 Mainstream Architecture
- Superheterodyne: Through mixing down to intermediate frequency (IF) processing, the performance is stable but the complexity is high.
- Zero-IF: Direct baseband conversion, low cost but needs to solve the DC offset problem.
5. Challenges facing radio frequency(RF) technology
- Interference and loss problems
In dense equipment environments (such as base station clusters), multi-channel RF signals interfere with each other, resulting in power loss and reduced signal-to-noise ratio.
- Complexity of high-frequency circuit design
When the frequency is > 30 MHz, parasitic capacitance/inductance and impedance matching need to be considered, and the design difficulty increases sharply.
- High threshold of testing technology
RF circuits require special instruments (such as vector network analyzers and spectrum analyzers) to verify performance, which is costly
