A production cable can fail even when the SMA connector looks completely normal.
This is a situation RF buyers often meet after the first batch arrives. The connector screws into the equipment, continuity testing passes, and the assembly looks identical to the sample. The problem appears during RF measurement — VSWR is higher than expected, insertion loss increases near the upper frequency range, or the cable performance changes after installation.
The reason is usually not the SMA interface itself.
The SMA male connector may have been selected only by appearance instead of considering the entire RF path. Cable diameter, termination method, center pin geometry, dielectric structure, and frequency margin all affect the final assembly.
For example, an SMA male connector used with RG316 cable is built differently from one designed for RG58 or semi-rigid cable. The front mating interface can be identical, but the rear body and internal structure cannot simply be substituted.
For RF engineers and procurement teams, the connector specification needs to describe the complete assembly requirement, not only the connector name.
A typical request should include:
- SMA interface type
- male or female configuration
- 50Ω impedance
- cable model
- operating frequency
- termination method
- required test standard
This prevents a common sourcing problem: receiving a connector that fits mechanically but does not match the RF requirement.
How Does an SMA Male Connector Fit Into an RF Connection System?

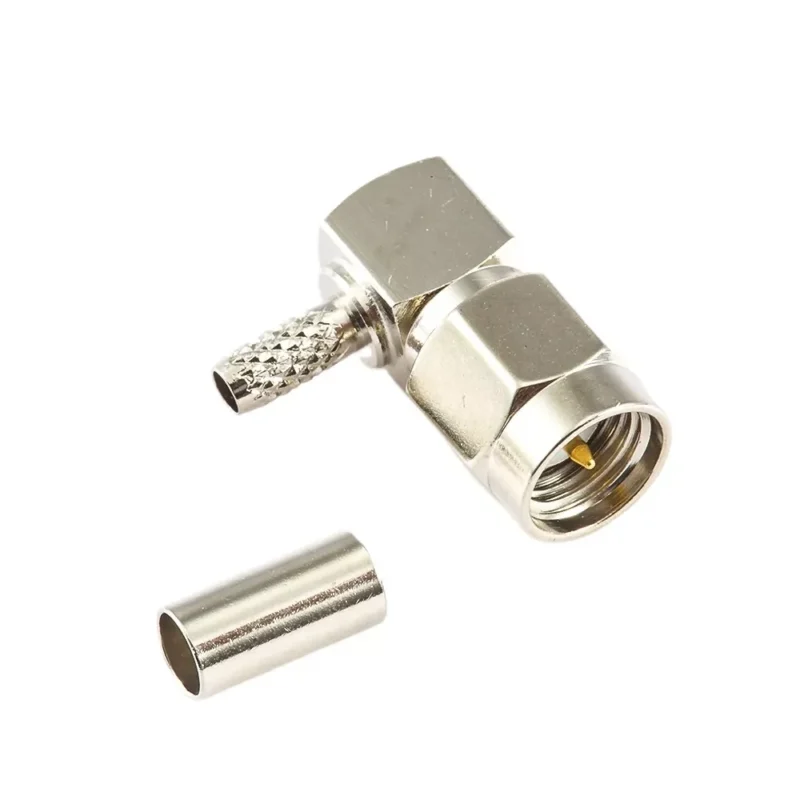

This right angle SMA male connector is designed for RF applications requiring space-saving installation. The angled structure helps reduce cable bending stress while maintaining reliable electrical performance.
An SMA male connector is normally used as the plug side of a 50Ω RF connection.
In practical applications, it is often assembled with coaxial cables and connected between:
- RF modules
- antennas
- measurement equipment
- communication devices
- microwave components
The connector is only one section of the signal path.
Each transition can influence signal behavior.
A cable assembly using a precision SMA male connector may still perform poorly if:
- the cable attenuation is too high for the length;
- the connector termination damages the dielectric;
- the center pin is not aligned correctly;
- the assembly is tested only with continuity instead of RF measurement.
This is why experienced RF buyers usually specify the cable and connector together instead of purchasing connectors separately.
Where Are SMA Male Connectors Commonly Used?
The SMA male RF connector features a precision threaded interface and cable termination structure. It is commonly used in RF cable assemblies, wireless communication equipment, antennas, and test systems.
Typical examples include:
| Application | Why SMA Male Connector Is Used |
| RF test cable | Repeatable mating and compact size |
| Wireless module connection | Small footprint |
| Antenna cable assembly | Stable threaded interface |
| Microwave equipment | Suitable for higher-frequency RF paths |
| RF adapters | Provides interface conversion |
However, the same connector style can require different construction depending on the application.
A short laboratory test cable may focus on:
- low VSWR
- phase stability
- repeated mating cycles
A cable inside an electronic enclosure may focus more on:
- flexibility
- cable routing space
- strain relief
The connector selection changes according to the environment.
Why Should SMA Male and Female Interfaces Be Checked Before Ordering?

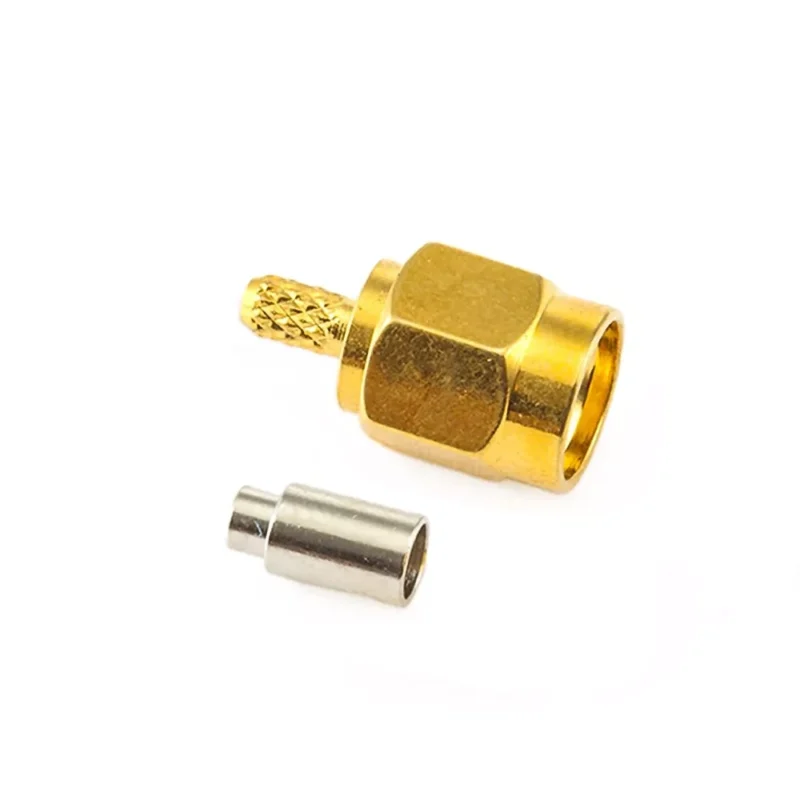

This image shows the main components of an SMA male connector before assembly. The connector body and ferrule are designed for 50 ohm RF coaxial cable applications, providing reliable mechanical connection and stable signal transmission.
A frequent mistake during RF purchasing is identifying connectors only from external appearance.
SMA male and SMA female connectors are designed as a mating pair, but their internal structures are different.
An SMA male connector normally contains:
- center pin contact
- external thread
- plug body
An SMA female connector normally contains:
- socket contact
- internal thread
- jack structure
The thread and contact geometry determine whether the connection is mechanically stable and electrically consistent.
A connector can appear similar but still create problems if:
- the center contact does not match;
- the thread standard is different;
- the polarity is incorrect;
- the connector is actually a reverse-polarity version.
For production orders, confirming interface drawings or samples before mass production is usually safer than relying only on product photos.
SMA Male vs SMA Female: Practical Selection Reference
| Check Item | SMA Male Connector | SMA Female Connector |
| Center Contact | Pin | Socket |
| Thread Position | External | Internal |
| Typical Installation | Cable side | Equipment side |
| Common Role | Plug connection | Jack connection |
| Typical Products | RF cable assembly, adapter | PCB, panel, module |
The table looks simple, but it prevents one of the most common RF ordering errors: selecting the correct connector family with the wrong mating interface.
How Does Connector Structure Affect RF Reliability?
Two SMA male connectors may look identical in a catalog.
At low frequencies, the difference may not be obvious.
At higher frequencies, machining accuracy becomes more important.
The RF path inside the connector depends on several physical factors:
Center Pin Alignment
The center conductor must maintain proper alignment through the connector transition.
Contact Quality
The contact area influences:
- electrical stability
- mating repeatability
- long-term reliability
Poor contact pressure may create unstable results after repeated connection cycles.
Cable Termination
The rear section of the connector must match the cable construction.
For example:
- RG316 requires a miniature connector structure;
- RG58 requires a larger cable entry;
- semi-rigid cable requires different mechanical handling.
Using the wrong connector body may still allow assembly, but the RF result can change.
How Do You Select an SMA Male Connector for Different Coaxial Cables?
A connector that fits the cable mechanically is not always the correct RF choice.
This is a common issue during cable assembly sourcing. A buyer may send a request such as “SMA male connector for coax cable” without specifying the cable diameter or structure. The supplier can provide a connector that can be terminated successfully, but the final assembly may not meet the expected electrical performance.
The reason is simple: the rear section of an SMA male connector is designed around a specific cable construction.
The cable outer diameter, dielectric thickness, conductor size, and shielding structure all affect the connector design.
Common SMA cable assembly combinations include:
| Cable Type | Typical SMA Male Application | Selection Consideration |
| RG316 | Flexible RF jumper cable | Small diameter, easy routing |
| RG174 | General RF connection | Compact equipment wiring |
| RG178 | Miniature RF devices | Limited installation space |
| 1.13 mm coax | Wireless modules | Very small internal connections |
| Semi-rigid cable | Test and microwave systems | Stable mechanical structure |
A connector designed for RG316 is normally not suitable for RG58.
Although both are coaxial cables with 50Ω impedance, their physical structures are different.
The connector rear body must match:
- cable outer diameter;
- stripping dimensions;
- center conductor size;
- braid contact method;
- assembly tooling.
This is why experienced buyers usually provide the exact cable model when requesting an SMA male connector.
Match the Termination Method Before Starting Production
The termination process has a direct influence on assembly consistency.
For SMA male connectors, common termination methods include:
Crimp Termination
Crimp connectors are widely used for production cable assemblies.
Advantages:
- faster assembly;
- consistent production process;
- suitable for medium and high volume manufacturing.
However, crimping depends on:
- correct ferrule size;
- proper stripping length;
- suitable crimp tooling.
An incorrect crimp tool can damage the cable shield or reduce mechanical strength.
Solder Termination
Solder versions are common in laboratory cables and special assemblies.
Advantages:
- flexible production;
- suitable for low volume customization;
- good electrical contact when properly processed.
The risk is excessive heat.
Too much soldering heat can affect:
- dielectric material;
- insulation position;
- connector internal alignment.
Clamp or Mechanical Termination
Some SMA male connectors use mechanical clamping structures.
These are often selected where:
- cable replacement is needed;
- field maintenance is required;
- special cable constructions are used.
The important point is that termination method should be considered together with cable type, not selected separately.
How Does Cable Choice Affect SMA RF Performance?
The SMA interface receives most attention, but the cable often becomes the limiting factor.
A high-frequency SMA male connector cannot compensate for a cable with excessive loss.
For example, a system operating near several GHz may be affected by:
- cable attenuation;
- cable length;
- bending;
- connector quantity;
- adapter transitions.
A short RG316 jumper may work well for a compact RF module.
A longer assembly may require a lower-loss cable even if both ends use the same SMA connector.
This is why cable assembly specifications should include length, frequency, and expected test conditions.
How Does Frequency Range Affect SMA Male Connector Selection?
A catalog frequency rating should not be treated as the only selection factor.
Many RF buyers compare connectors by GHz number first. A connector marked 18 GHz may appear automatically better than one rated 6 GHz. In practical assemblies, the result depends on the complete RF design.
The connector, cable, and termination process must work together.
Before selecting an SMA male connector, confirm:
- highest operating frequency;
- required VSWR;
- insertion loss target;
- cable attenuation;
- measurement environment.
For example:
A 2.4 GHz wireless application and an 18 GHz microwave test cable may both use SMA interfaces, but their requirements are completely different.
When Is a Standard SMA Connector Enough?
Standard SMA male connectors are commonly used in:
- wireless communication equipment;
- GPS-related assemblies;
- RF modules;
- antenna connections;
- general laboratory cables.
For these applications, the priority is usually:
- correct impedance;
- stable connection;
- suitable cable matching;
- repeatable assembly.
The connector does not necessarily need the highest possible frequency rating.
Using a higher-frequency connector can increase cost without improving the actual system if the cable or equipment remains the limiting factor.
When Should Precision SMA Connectors Be Considered?
Higher-frequency applications require tighter mechanical control.
Typical examples include:
- microwave measurement;
- vector network analyzer test cables;
- precision RF fixtures;
- research equipment.
At higher frequencies, small changes become more noticeable:
- connector dimensions;
- dielectric position;
- center contact alignment;
- plating condition.
A connector may pass a basic continuity check but still show unstable RF results during VNA measurement.
This is why precision RF assemblies normally include:
- VSWR testing;
- insertion loss testing;
- return loss verification.
SMA Connector Frequency Margin Decision Matrix
A practical way to evaluate frequency selection is to use a frequency margin ratio:
Frequency Margin Ratio = Connector Rated Frequency ÷ Maximum Operating Frequency
| Margin Ratio | Application Recommendation |
| Below 1.0× | Not recommended |
| 1.0–1.2× | Basic connection only |
| 1.2–1.5× | General RF applications |
| 1.5–2.0× | Better choice for test cables |
| Above 2.0× | Suitable for sensitive RF measurement |
Example:
A system operating at 6 GHz:
- 6 GHz connector → 1.0× margin
- 18 GHz connector → 3.0× margin
The second option provides more frequency headroom, but the final decision still depends on cable type, budget, and measurement requirements.
How Do SMA Cable Assemblies Get Verified Before Deployment?
A finished SMA cable assembly should not rely only on visual inspection.
A connector can look perfect externally while having problems inside the RF path.
A basic production inspection normally includes:
Mechanical Inspection
Check:
- connector model;
- SMA male interface;
- thread condition;
- cable length;
- strain relief;
- appearance.
Electrical Testing
Depending on the application, testing may include:
- continuity;
- insulation resistance;
- VSWR;
- insertion loss;
- return loss.
For higher-frequency assemblies, VNA testing provides information that ordinary electrical testing cannot provide.
Where Does an SMA Male Connector Become the Wrong Choice?
The SMA interface is popular because it solves a specific problem: providing a compact, threaded 50Ω RF connection.
But compact does not always mean suitable.
A connector that works well on a laboratory bench may not be the right option for an outdoor antenna system. A connector that performs well at 2.4 GHz may not be the economical choice for a precision microwave test cable.
During RF component selection, the mistake is usually not choosing SMA.
The mistake is using SMA without considering the environment around it.
When Should SMA Be Used Instead of N Type Connectors?
A designer working on a communication module may choose SMA because the available installation space is limited.
A designer working on an outdoor antenna feeder may prefer N Type because the connector needs to handle:
- stronger mechanical stress;
- environmental exposure;
- larger cable sizes.
A simple comparison:
| Application Condition | More Suitable Choice |
| Compact RF module | SMA |
| Short internal RF jumper | SMA |
| Microwave test cable | SMA |
| Outdoor antenna connection | N Type |
| Large diameter feeder cable | N Type |
| Frequent mechanical impact | N Type |
The mistake is comparing connectors only by frequency rating.
The better question is:
What problem does this connector need to solve inside the system?
Why Do RF Buyers Need More Than “SMA Connector” in a Purchase Request?
A quotation request containing only:
“1000 pcs SMA male connector”
usually creates unnecessary back-and-forth.
The supplier still needs to confirm:
- Which cable?
- Which frequency?
- Straight or right angle?
- Crimp or solder?
- Cable mount or panel mount?
- Standard SMA or reverse polarity?
Two SMA male connectors may look similar in a catalog but require completely different tooling during production.
For example:
An SMA male connector for RG316 cable normally uses a smaller rear structure.
An SMA male connector for RG58 cable requires:
- larger cable entry;
- different ferrule size;
- different crimp tooling.
If these details are not confirmed before ordering, the problem usually appears during assembly rather than purchasing.
The cable cannot be terminated correctly, or the finished assembly does not achieve the expected RF performance.
Practical SMA Male Connector BOM Example
For engineering teams, a useful BOM description should contain enough information for production.
Example:
SMA male plug, 50Ω, straight cable mount, for RG316 coax cable, gold plated contact, solder termination, DC–6 GHz application, VSWR tested.
This description is much more useful than:
SMA cable connector.
The first description tells manufacturing what needs to be produced.
The second only identifies the connector family.
How Should SMA Cable Assemblies Be Checked Before Shipment?
A common production misunderstanding is treating continuity testing as a complete inspection.
It is not.
Continuity testing confirms that the electrical path is connected.
It does not confirm:
- impedance matching;
- reflection level;
- insertion loss;
- high-frequency stability.
For RF assemblies, inspection normally happens in several stages.
SMA Cable Assembly Production Acceptance Sheet
| Inspection Point | Why It Matters | Recommended Check |
| Connector Model | Prevent wrong substitution | Verify drawing / sample |
| Gender | Ensure correct mating | SMA Male confirmed |
| Cable Type | Control RF characteristics | Match BOM |
| Cable Length | Affects attenuation | Measure actual length |
| Termination | Affects consistency | Inspect crimp/solder |
| Thread | Affects mechanical connection | Visual check |
| VSWR | Indicates RF matching | Test when required |
| Insertion Loss | Measures signal loss | Record test result |
This type of checklist is useful for repeat production because many RF problems are caused by small specification changes between batches.
What Should Engineers Confirm When Choosing an SMA Connector Supplier?
Price is usually the first comparison point.
It should not be the only one.
For RF components, consistency has a direct impact on the final product.
A supplier evaluation should focus on whether they can control:
Connector Manufacturing
Important factors include:
- machining tolerance;
- material consistency;
- plating control;
- insulation positioning.
Cable Assembly Capability
A connector supplier that also understands cable assembly can usually identify issues earlier.
Examples:
- wrong cable diameter;
- incorrect stripping dimension;
- unsuitable termination process;
- excessive bending stress.
Testing Capability
Ask what can be verified before shipment.
Depending on the application, this may include:
- dimensional inspection;
- continuity testing;
- VSWR measurement;
- insertion loss testing.
The goal is not to find a supplier that claims every connector is perfect.
The goal is to find a supplier that understands what needs to be controlled.
FAQ
Why do RF buyers specify cable length when ordering SMA assemblies?
Cable length affects attenuation, phase characteristics, and installation behavior. A 100 mm cable and a 1000 mm cable using the same SMA connector may have very different RF requirements.
Why do engineers provide cable models when ordering SMA male connectors?
Because the connector rear structure is usually matched to the cable construction. RG316, RG178, RG174, and RG58 have different outer diameters and internal structures, so they require different connector bodies and termination methods. Providing only “SMA male connector” leaves too many variables open and increases the chance of receiving a part that cannot be assembled correctly.
Why does my SMA cable pass a continuity test but show poor RF results?
Continuity only checks whether the electrical path is connected. It does not show how the RF signal travels through the assembly. Problems may come from the connector transition, cable damage, incorrect soldering, poor crimping, or changes in cable length. For assemblies used in RF testing or higher-frequency systems, VSWR and insertion loss measurements provide more useful information.
Can I use the same SMA male connector for different coaxial cables?
Not usually. The connector body is matched with the cable construction, not only the SMA interface. For example, RG316 and RG58 both use 50Ω systems, but their cable diameters and internal structures are different. The connector used for one cable may not provide the correct mechanical support or termination result for another cable.
