Introduction

In RF design, the trouble often starts with signal power. A receiver that looks fine on paper can buckle the moment a nearby transmitter pumps too much energy into it. Anyone who has worked with spectrum analyzers knows how unforgiving they are—a few extra dB is sometimes all it takes to cause permanent harm. Lowering transmitter gain sounds like the obvious fix, and sometimes it works, but not every system gives you that flexibility. Even when it does, the results can drift between firmware updates or vary across devices.

That’s exactly where an SMA attenuator proves its value. Think of it as a small, inline safeguard—trimming the signal down to a manageable level without touching the rest of your setup. In practice, it’s the difference between protecting expensive test equipment and risking a blown input port. Many engineers keep at least one in their toolkit, not just for emergencies, but because it brings consistency in places where software settings can’t always be trusted.

Quick field note: I’ve seen lab colleagues burn out analyzer inputs simply because they assumed “a few dB won’t matter.” An attenuator would have cost them a few dollars—repairing the instrument took weeks.

Decide if an SMA attenuator is really needed or a gain change will do

The first step is to pause and ask yourself: do you really need hardware, or will a quick software tweak be enough? Routers, SDRs, and USRPs usually let you adjust transmit gain in their settings. That’s free, easy, and sometimes all you need. The catch is that software doesn’t protect against accidents. One misclick or a forgotten configuration can still send too much power downstream.

A fixed RF SMA attenuator avoids those surprises because it never changes value. It’s the same today, tomorrow, and a year from now. Engineers often rely on it for a few specific reasons:

Protecting instruments – A 20 dB pad ensures a Wi-Fi router pushing 30 dBm won’t destroy a spectrum analyzer input.
Shielding receivers – Prevents strong nearby signals from overwhelming the front end.
Cleaning up transmission – Reduces drive into a PA so it runs more linear, lowering distortion.
Balancing multi-link setups – In a shared test rack, fixed attenuation keeps levels consistent across channels without constant re-tuning.

Outdoor installs raise the stakes further. Cheaper, unsealed pads may look fine indoors, but in the field they quickly fail when exposed to moisture. TEJTE’s IP67-rated SMA attenuators, built with PTFE insulation and stainless-steel contacts, are designed to handle rain, dust, and long-term use. That kind of reliability is why many engineers treat them as a baseline requirement, not an upgrade.

Small but costly mistake I’ve seen: relying only on software to reduce gain, then discovering the device rebooted with default settings. The analyzer didn’t survive. An inline attenuator would have.

How many dB should you choose for Wi-Fi, SDR, or lab tests?

Attenuators don’t come in random values—they’re sold in standard steps: 3, 6, 10, 20, 30, and 40 dB. Choosing the right one depends on what you’re testing and how much headroom you want.

For Wi-Fi setups, a 10 or 20 dB attenuator is often enough to bring router output down to levels that spectrum analyzers can handle safely. In SDR or USRP labs, engineers usually start with 20 dB to prevent overload, then fine-tune with smaller pads until the receiver feels balanced—quiet enough to avoid distortion, but still sensitive to weak signals. On prototype RF boards, even a light 6 dB pad can sometimes be the difference between noisy intermod and clean transmission.

TEJTE’s fixed pads cover DC–0~6 GHz, DC–18 GHz, and DC–26.5 GHz ranges. Specs like insertion loss ≤0.15 dB at 6 GHz, VSWR around 1.20:1, and a ±0.5 dB tolerance give them a tighter profile than many low-cost alternatives, where ±1.0 dB swing is common. That extra precision matters in calibration work.

Attenuation Value	Typical Use Case	TEJTE Spec (DC-18 GHz)	Mini-Circuits Equivalent
3 dB	Small PA trim	±0.5 dB, VSWR ≤1.25	±0.75 dB, VSWR ≤1.3
10 dB	Router output pad	±0.5 dB	±0.75 dB
20 dB	SDR/Analyzer input	±0.5 dB	±0.75 dB
30–40 dB	Strong isolation	±0.5 dB	±1.0 dB

Practical tip: when in doubt, start with more attenuation—say, 20 dB. It’s much easier to stack a 6 dB later than to replace an analyzer input. For more on how attenuation interacts with overall system loss, see our RF coaxial cable guide.

Calculate power rating so you don’t burn the attenuator

Attenuation alone doesn’t guarantee safety—the power rating is just as important. Every sma attenuator works by converting excess RF energy into heat. If the rating is too low, that heat has nowhere to go, and the attenuator will eventually fail. Worse, it may introduce distortion before it burns out.

Take a simple example. Feed 1 W (30 dBm) into a 20 dB attenuator:

The output falls to 0.01 W (−10 dBm).
Roughly 0.99 W is dissipated as heat inside the device.

If you’re using a pad rated for only 1 W, you’re already riding the edge. Continuous operation could easily push it past safe limits. That’s why TEJTE offers attenuators rated at 2 W, 5 W, and 20 W, built with gold-plated brass housings, PTFE dielectric, and RoHS-compliant construction. They’re designed for long service life—over 500 mating cycles—which matters in labs and field setups where connections are made and broken daily.

Engineering reminder: always double the rating. A 2 W attenuator handling a 1 W input is safe; a 1 W attenuator on the same job is gambling. In the field, I’ve seen units fail simply because they were mounted inside sealed boxes with no airflow. Even a DC–26.5 GHz attenuator with perfect lab specs can overheat under those conditions. For more on protecting downstream devices, you can also check our SMA extension cable guide, where we discuss mechanical stress and heat management.

Match frequency range: DC–6/18/26.5 GHz for your use case

When choosing an sma attenuator, don’t just think about dB values—the frequency range matters just as much. An attenuator that performs perfectly at 2.4 GHz may not hold its specs at 18 GHz or 26.5 GHz. Matching the pad to your system ensures both accuracy and longevity.

DC–6 GHz models are usually the best choice for Wi-Fi (2.4/5 GHz), LTE, and sub-6 GHz 5G. They provide the lowest insertion loss and are generally more affordable.
DC–18 GHz attenuators step things up for satellite, broadband test labs, and radar bands. TEJTE’s 18 GHz units keep insertion loss at or below 0.15 dB at 6 GHz and maintain VSWR around 1.20:1—numbers that compare well with established names like JFW or Inmet.
DC–26.5 GHz models are built for X-band, Ku-band, and microwave backhaul. Many engineers assume “higher bandwidth must be better,” but that isn’t always true. If your work is limited to Wi-Fi or SDR around 6 GHz, paying extra for 26.5 GHz coverage gives little practical advantage.

TEJTE also certifies its attenuators with Method 213 vibration testing and specifies an operating range of −65 °C to +165 °C, plus full RoHS compliance. These details may sound minor, but in telecom deployments where vibration and temperature cycling are real problems, they mean the difference between a stable link and an intermittent failure. By contrast, many generic attenuators don’t even publish VSWR curves above 6 GHz, leaving engineers to guess.

Quick tip from the lab: always choose the lowest frequency range that fully covers your application. Overspec sounds safe, but it adds cost and sometimes insertion loss.

If you’d like to see how frequency affects not only attenuators but also coaxial cables, take a look at our RF coaxial cable guide. It explains in detail how loss scales with frequency and why that matters in real-world links.

Pick fixed pads, kits, or a variable attenuator for flexibility

Once you know the attenuation level and frequency range, the next step is choosing the right form factor. Do you need a single fixed pad, a sma attenuator kit, or a variable model? Each option has strengths and trade-offs.

Fixed pads – Simple, precise, and stable. If you know you’ll always need 20 dB of reduction, nothing beats a fixed attenuator. TEJTE offers versions rated at 2 W, 5 W, and 20 W, with brass housings, PTFE dielectric, and RoHS compliance. Their durability—≥500 mating cycles—makes them well suited for both lab and field use.
Kits – A kit gives you a range of values (3, 6, 10, 20, 30 dB) in one package. Engineers like them because you can mix and match as needed. Compared to variable models, kits are usually cheaper and more accurate. For long-term bench testing, a rf attenuator kit sma is often the most practical choice.

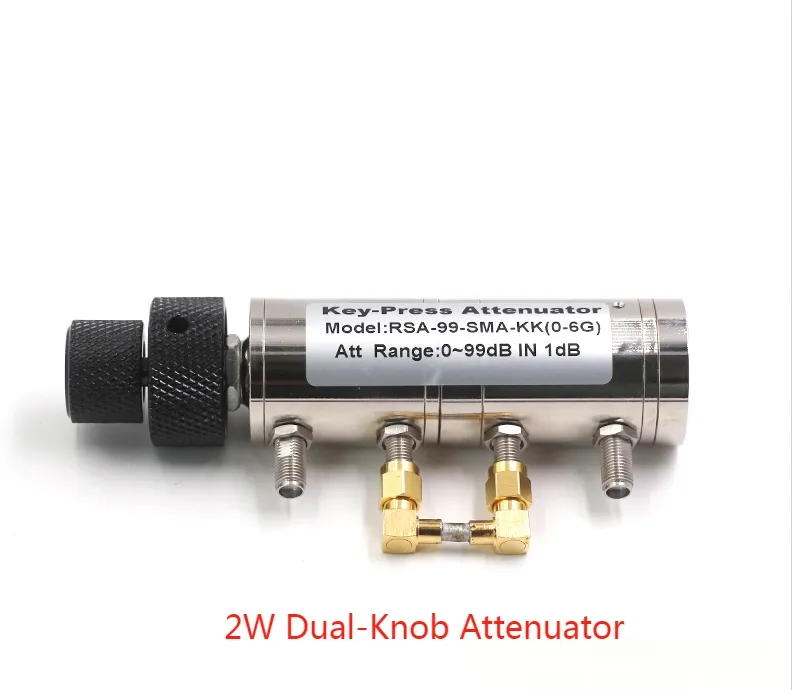

Variable attenuators – These offer on-the-fly adjustments, typically with a knob or step switch. They’re convenient for troubleshooting, but they tend to drift over time and introduce higher insertion loss.

Option	Pros	Cons	Typical Use Case
Fixed pad	Accurate, compact, low insertion loss	Limited flexibility	Permanent inline protection
Kit	Covers multiple values, cost-efficient	Requires swapping pads	Lab benches, field toolkits
Variable	Adjustable, quick to use	Less precise, bulkier	Service work, troubleshooting

In practice, many engineers keep both: a kit for reliable lab work and one variable attenuator for quick checks. Brands like Mini-Circuits, Nooelec, and Inmet all offer these, but TEJTE distinguishes itself with IP67-rated SMA pads. That feature alone makes a difference in outdoor scenarios like CPE units, smart-home devices, or camera bridges, where moisture quickly kills unsealed hardware.

Practical field note: if you only budget for one purchase, start with a kit. Combining, say, a 10 dB and a 6 dB pad is often faster and more accurate than fiddling with a variable dial. For more insights on balancing connectors and test accessories, see our RF connector families overview.

Choose the right gender and layout for in-line installation

It’s easy to overlook connector layout until you’re mid-setup and realize nothing fits. An sma attenuator is available in several gender configurations, and picking the wrong one can force you to scramble for extra adapters.

Male-to-Female (M–F): by far the most common. It allows quick inline installation without needing other adapters.
Male-to-Male (M–M): less common but useful when bridging two female jacks, such as some SDR front ends.
Female-to-Female (F–F): handy for patch panels or extending lines with short coax jumpers.

TEJTE manufactures all three formats, each tested to ≥500 mating cycles and built with stainless-steel contacts and PTFE insulation. The waterproof IP67 series even includes O-rings that compress under torque, ensuring protection in outdoor conditions.

When comparing across brands, tolerances matter. Generic rf attenuator sma male-to-male models sometimes show insertion losses over 0.25 dB at 5 GHz. By contrast, TEJTE’s attenuators typically hold insertion loss ≤0.15 dB at 6 GHz with VSWR ≤1.20:1. That difference may sound small, but in precision RF labs, it can shift calibration results.

Installation tip: don’t let the attenuator body act as a lever arm. If it plugs directly into a heavy analyzer port, you risk stressing the connector. A short jumper cable is often the smarter choice. You can read more about this approach in our SMA extension cable guide, which explains how flexible coax jumpers prevent mechanical strain on rigid SMA joints.

Is an IP-rated SMA attenuator necessary outdoors?

Plenty of engineers assume any attenuator will survive outdoors as long as it sits inside a box or under a cover. The truth is harsher: moisture, condensation, and temperature swings quickly creep in and corrode unsealed hardware. That’s why IP-rated sma attenuators exist—they’re designed with O-rings and sealed housings to block water and dust before they become a problem.

TEJTE’s waterproof models are built for reliability. They use PTFE insulation, stainless-steel or brass housings, and silicone gaskets, giving them a rating of IP67. They operate from −65 °C to +165 °C, survive 500+ mating cycles, and maintain VSWR ≤1.20:1 across DC–6 GHz. By comparison, many generic pads don’t even list thermal range or sealing specs, which makes them risky for outdoor CPE units, wireless bridges, and IP cameras.

Before you decide, ask yourself:

Will the attenuator be permanently exposed outdoors?
Is the enclosure fully sealed, or will the attenuator stick out?
Do you expect the link to face wide temperature swings?

If any answer is yes, an IP67-rated SMA attenuator is more than insurance—it’s a requirement. For additional guidance on sealing and outdoor RF protection, see our SMA bulkhead connector guide, which covers similar O-ring sealing practices.

Quick reminder: sealing only works if the O-ring is compressed correctly. Always torque the connector properly—too loose, and moisture gets in; too tight, and you risk damaging the threads.

Install in the correct order and torque without detuning

Even the best sma attenuator can cause headaches if it’s installed incorrectly. The order of components in your RF chain matters more than most people think. The safe and common-sense sequence is:

Transmitter → Attenuator → Instrument or Receiver

Placing the attenuator immediately after the transmitter ensures the pad absorbs the excess power before it can reach sensitive inputs. Put it downstream, after the analyzer or LNA, and you’ve missed the point—the damage may already be done.

Another often-overlooked factor is torque. SMA connectors use 1/4–36 UNS-2A threads, with a recommended torque of about 0.56–0.79 N·m (5–7 in-lb). TEJTE specifies this range in their datasheets, alongside ≥500 mating cycles durability. Tighten too loosely, and you risk intermittent contact or water ingress. Go too tight, and you can strip threads or deform the dielectric.

A few practical notes for field work:

Always use a torque wrench when consistency matters.
After installation, check VSWR. Even a small mismatch can reveal a poor fit.
If stacking multiple attenuators or blocks, avoid long rigid chains. Use a short jumper cable to relieve stress.

For more details on using jumpers to reduce mechanical strain, see our SMA extension cable guide. A flexible coax segment is often the difference between a clean measurement and a broken analyzer port.

Quick lab tip: don’t forget to recheck after a few hours of operation. Heat cycles can loosen threaded joints ever so slightly, especially in outdoor gear exposed to direct sun.

Can you stack multiple pads to hit an exact dB value?

Yes—you can stack attenuators, and the math is straightforward: dB values simply add. A 10 dB sma attenuator plus a 6 dB pad equals 16 dB. But practice rarely matches theory perfectly. Each pad comes with tolerances, insertion loss, and VSWR, and those small imperfections add up when you chain them together.

Take TEJTE’s fixed attenuators as an example. Each one has a ±0.5 dB tolerance and VSWR ≤1.20:1 up to 6 GHz. Stack three together, and your effective tolerance might creep to ±1.0 dB. That’s usually fine for Wi-Fi testing or general lab work, but it’s not ideal for calibration-heavy tasks where precision matters.

Stack Example	Expected Value	Realistic Range (±0.5 dB each)	Notes
10 dB + 6 dB	16 dB	15–17 dB	Good for casual use
20 dB + 20 dB	40 dB	39–41 dB	Safe, but watch for heating
30 dB + 10 dB	40 dB	39–41 dB	VSWR may increase

If you’re chasing exact attenuation values, a variable attenuator or a precision kit may be smarter than stacking too many fixed pads. A kit with 3, 6, 10, 20, and 30 dB options lets you hit most targets with one or two parts, minimizing mismatch risk.

TEJTE supplies both kits and single pads, and unlike some generic suppliers, publishes full specs across DC–6 GHz, DC–18 GHz, and DC–26.5 GHz. That transparency makes it easier to plan your chain without guesswork. For more context on connector selection and system planning, see our RF connector families overview.

Engineering perspective: stacking works, but moderation is key. Two pads are usually fine. Three is pushing it. Beyond that, you’re building a tower of tolerances that can erode both accuracy and stability.

Avoid mixing optical “SMA” attenuators with RF SMA parts

One of the most common beginner mistakes is assuming that all devices labeled “SMA” are interchangeable. In reality, optical SMA attenuators and RF SMA attenuators share a name but serve entirely different worlds.

Optical SMA attenuators (often SMA 905/906): built for fiber systems. They reduce optical power at wavelengths like 1310 nm or 1550 nm. Instead of a center pin, they use a ferrule for fiber alignment.
RF SMA attenuators: threaded coaxial connectors with male or female pins. These are designed for DC–6 GHz, 18 GHz, or 26.5 GHz applications in Wi-Fi, SDR, satellite, and microwave systems.

TEJTE’s RF models, for instance, specify VSWR ≤1.20:1, insertion loss ≤0.15 dB at 6 GHz, and power handling up to 20 W. None of these specs mean anything in the optical domain. Trying to plug an optical part into an RF chain won’t just fail—it can also damage the connector interface.

Quick checklist to avoid confusion:

Look inside: a fiber ferrule means optical; a pin-and-socket means RF.
Check the datasheet: if it lists nanometer wavelengths, it’s optical. If it lists GHz bands, it’s RF.
Confirm materials: RF attenuators use PTFE dielectric, brass, or stainless housings, not fiber cores.

For engineers who work across disciplines, it’s worth bookmarking references like our RF connector guide. It lays out the different connector families, so you don’t get tripped up by naming overlap.

Field note: I once saw a new hire grab an optical SMA, thinking it was the same as an RF pad. The lab spent more time explaining the mistake than running the test. Lesson learned—always double-check the datasheet before connecting.

FAQs

Over the years, engineers in labs and field deployments have raised the same questions again and again. Here are some of the most practical ones, answered with real-world context.

How much power does a 20 dB SMA attenuator actually dissipate with 1 W input?

Nearly all of it—around 0.99 W ends up as heat inside the pad, with only 0.01 W coming out. That’s why TEJTE recommends choosing at least a 2 W rated model for continuous 1 W input. A 1 W attenuator might survive briefly, but not for long.

Should I buy a fixed pad set (kit) or a single variable attenuator for a USRP test bench?

Most engineers prefer a sma attenuator kit, since it covers multiple values and maintains accuracy. Variable attenuators are quick to adjust but less precise and more prone to drift. For long SDR sessions, fixed pads are safer.

Does a DC–18 GHz attenuator perform worse than a DC–26.5 GHz part at 5.8 GHz?

No, not in practice. If your work is under 6 GHz, a DC–18 GHz attenuator is more than enough, often with slightly lower insertion loss. Paying for 26.5 GHz coverage only makes sense if you truly need it.

Can I stack a 10 dB and a 6 dB attenuator instead of one 16 dB?

Yes—you’ll get roughly the right value, but tolerances add up. Two pads with ±0.5 dB each can drift your final attenuation between 15 and 17 dB. That’s fine for casual Wi-Fi testing, but less ideal for calibration. (See also our section on stacking attenuators for details.)

Do I need an IP-rated attenuator outdoors if the enclosure is already sealed?

If the attenuator itself is exposed, yes. Water will always find a way. TEJTE’s IP67-rated sma attenuators prevent corrosion and maintain performance in rain, snow, and temperature swings.

Where should the attenuator sit—before the LNA, or before the instrument input?

Always before the sensitive device. An attenuator only protects what comes after it, never before.

Are optical “SMA” attenuators compatible with RF SMA connectors?

No. Optical SMA is for fiber networks, RF SMA is for coaxial RF systems. They may share the name, but they’re completely incompatible.

Practical reminder: when in doubt, ask for the datasheet. Specs like frequency range, VSWR, power rating, and sealing tell you right away whether the attenuator fits your application.

Conclusion

Selecting the right sma attenuator isn’t just about picking a dB number off the shelf. To make the right choice, you need to balance attenuation value, power rating, frequency range, connector layout, and environmental conditions. A part that looks fine in the catalog may fail in the field if it isn’t sealed against moisture, or if its power rating is undersized for continuous operation.

TEJTE manufactures attenuators across DC–6 GHz, DC–18 GHz, and DC–26.5 GHz ranges, rated for 2 W, 5 W, and 20 W, with PTFE insulation, RoHS-compliant brass housings, IP67 sealing options, and insertion loss ≤0.15 dB at 6 GHz. They also guarantee ≥500 mating cycles, giving engineers confidence whether the attenuator sits on a lab bench or out in the weather. In terms of specs, that puts TEJTE side by side with major brands like Mini-Circuits and Inmet—while adding customization and strong availability.

For engineers planning larger RF setups, it’s worth exploring the RF connector families overview and related posts like the SMA extension cable guide. Together, they form a practical knowledge base on how attenuators, connectors, and cables interact in real systems.

Final note: if you’re unsure, oversize your power rating and start with a kit. Protecting a $10,000 analyzer with a $50 attenuator is a trade every RF engineer would make twice. TEJTE’s catalog is designed to give you that peace of mind—whether you need a single fixed pad or a complete sma attenuator kit for the lab.
