In many small industrial devices, the connector is not the first component engineers think about during the design stage.
The enclosure size, circuit layout, and cable routing usually come first. But when the prototype moves into production, connector selection often becomes a problem that affects the entire design.
A connector that is too large occupies unnecessary space. A connector without a reliable locking structure may become loose after long-term operation.
This is one reason the GX12 connector remains a practical choice for compact industrial equipment.
A better approach is to define the working conditions before confirming the model.
For GX12 selection, engineers normally review:
- How many electrical contacts are required?
- Is the connection carrying power, signal, or both?
- Will the equipment experience vibration?
- Is the connector installed inside or outside the enclosure?
- How often will the connector be disconnected?
These questions usually determine whether GX12 is the correct option.
Why Does GX12 Connector Size Matter in Equipment Design?
The main reason many designers consider GX12 is space.
Industrial equipment is becoming smaller. Control modules that previously used large connection interfaces are now expected to fit into compact housings.
A smaller connector can simplify:
- Panel layout
- Cable routing
- Internal assembly
- Equipment maintenance
For example, a compact testing device may have several external connections. Using a smaller circular connector helps keep the front panel organized without reducing serviceability.
Compared with fixed wiring, a plug and socket design also gives technicians a faster way to replace modules during maintenance.
How Can GX12 Fit Different Industrial Connection Requirements?

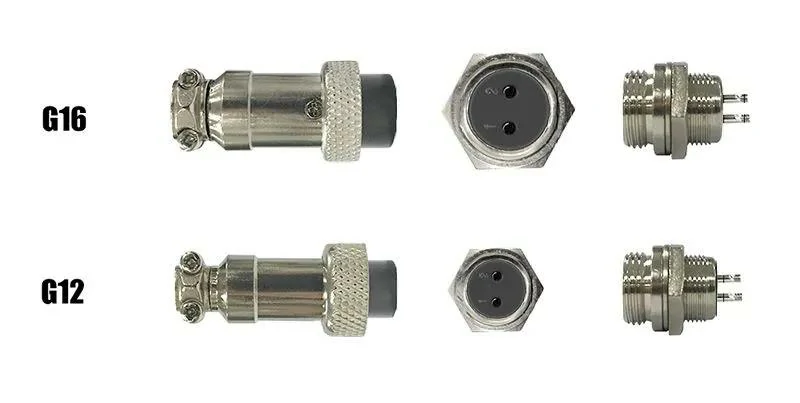

Comparison of GX12 and GX16 aviation-style connectors, including cable-mounted plugs, front contact arrangements, and panel-mounted sockets. The image helps equipment designers compare connector size and panel space requirements.
GX12 connectors are not limited to one specific machine type.
The same connector family can appear in different equipment depending on the wiring requirement.
Common examples include:
Sensor equipment
Sensors often require compact signal connections.
The connector needs to occupy little space while allowing technicians to remove the sensor during replacement or calibration.
Control modules
Small controllers may require several detachable interfaces.
A circular connector helps keep wiring organized compared with loose terminal connections.
Measurement equipment
Portable testing devices frequently need connectors that can withstand repeated connection cycles.
The locking mechanism of GX12 provides additional mechanical security compared with non-locking interfaces.
For broader connector selection information, readers can continue to:

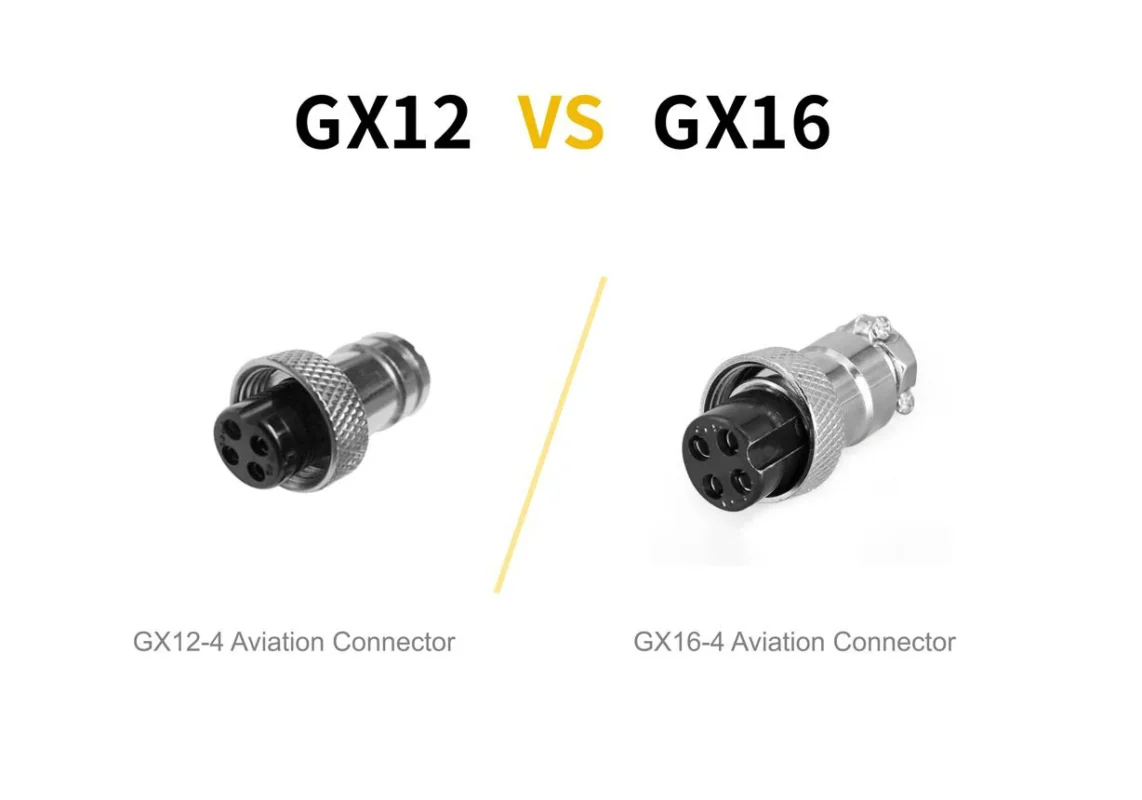

How Does GX12 Compare With GX16 Connector Selection?
GX12 and GX16 are often compared because they are both popular members of the GX series.
However, choosing between them is not only a matter of diameter.
The actual decision usually depends on the equipment structure.
A small sensor box may benefit from GX12 because every millimeter inside the enclosure matters..
When Should You Choose GX12 Instead of GX16?

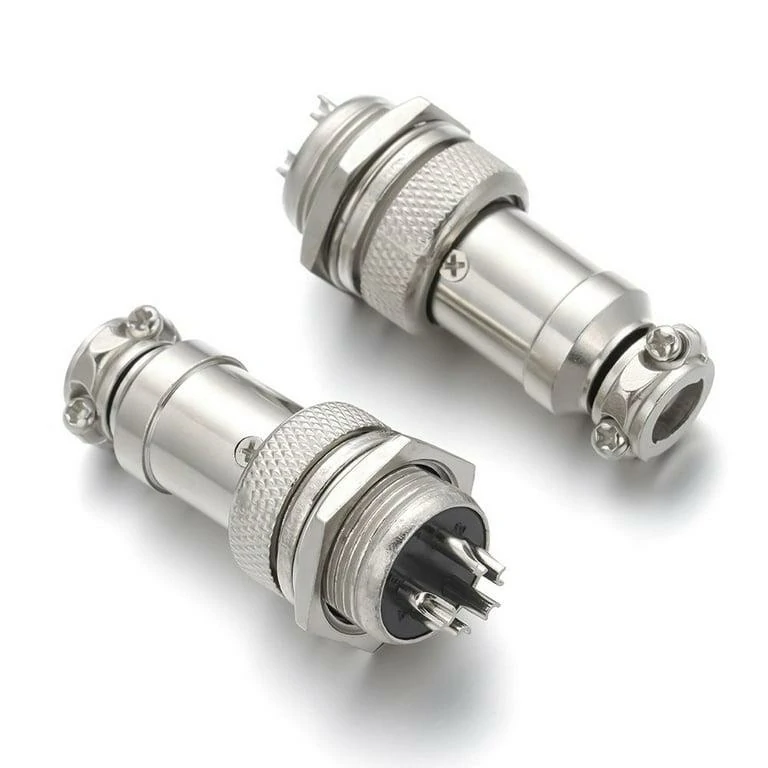

GX12 circular connector set with a metal cable plug and panel mount receptacle. The threaded locking structure helps maintain a stable connection in sensors, control equipment, and compact industrial devices.
GX12 is usually suitable when the priority is compact installation.
GX16 becomes more suitable when the equipment requires additional mechanical support or more installation space.
How Do GX12 Connector Pin Counts Affect Connector Selection?

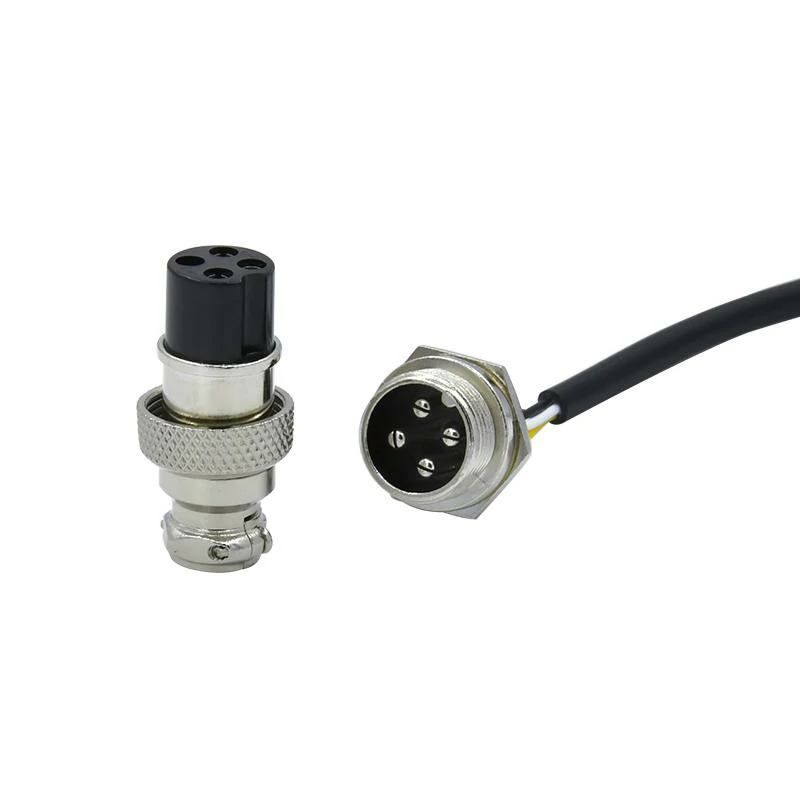

GX12 4-pin connector assembly showing the matching female plug and male panel socket. This configuration is commonly used for sensor power, control signals, and removable industrial cable connections.
When a GX12 connector is selected for a new device, the number of pins is usually one of the first technical details engineers need to confirm.
However, choosing the pin number is not simply about selecting more contacts for future expansion.
Too few pins may force the equipment designer to change the wiring later. Too many pins may increase cost and make the connector larger than necessary.
The correct approach is to match the connector pin configuration with the actual electrical function of the equipment.

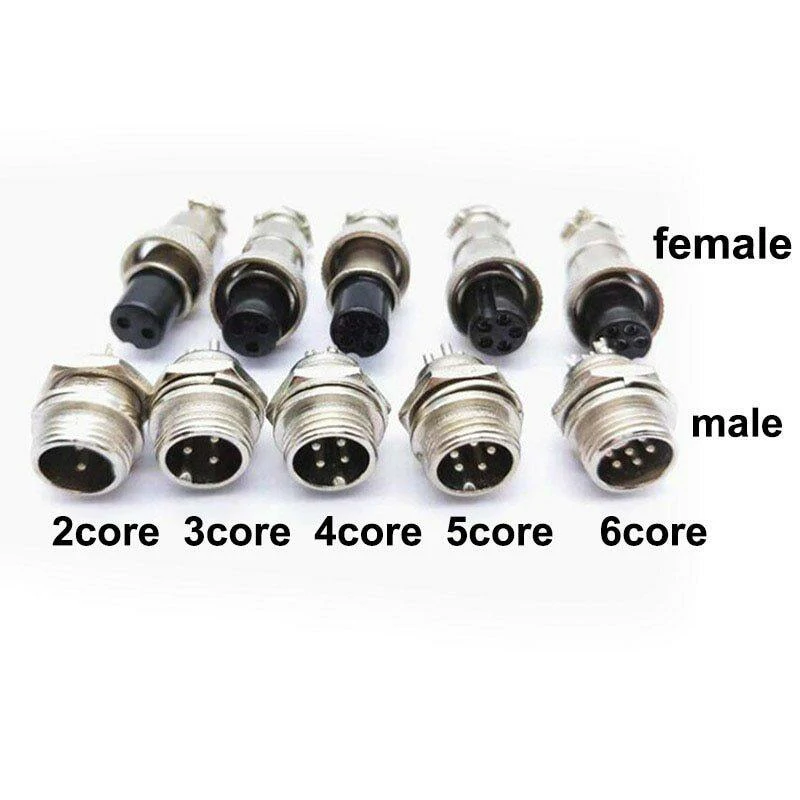

A GX12 connector can be supplied with different contact arrangements, including common configurations such as:
- 2 pin
- 3 pin
- 4 pin
- 5 pin
- 6 pin
Different pin counts are normally selected according to whether the connector is carrying power, control signals, sensor signals, or a combination of functions.
How Should Engineers Choose Between Different GX12 Pin Configurations?

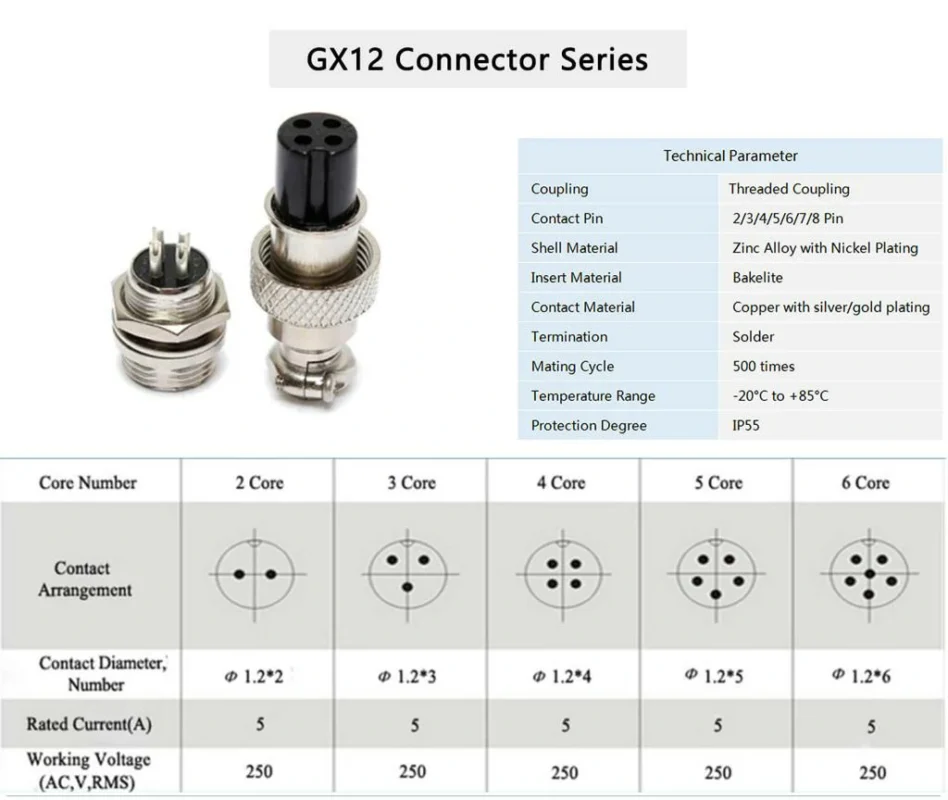

Overview of common GX12 connector pin configurations from 2 to 6 contacts. Different pin counts can support power wiring, sensor signals, control circuits, and combined electrical functions.
A simple power connection usually requires fewer contacts.
For example, a small DC motor or basic power supply connection may only need two contacts.
A sensor system may require additional pins because it needs:
- Power input
- Signal output
- Ground connection
In automation equipment, engineers often need to consider whether the connector will transmit only one type of signal or several signals together.
This is where selecting the correct gx12 connector pinout becomes important.
Before production, the pin arrangement should be confirmed together with the equipment circuit diagram.
What Is the Difference Between Common GX12 Pin Configurations?
GX12 Pin Count Application Matrix
| Pin Count | Typical Function | Common Application |
| 2 Pin | Power connection | DC power input, simple motor connection |
| 3 Pin | Power + signal | Basic sensor applications |
| 4 Pin | Multi-function connection | Sensors, control signals |
| 5 Pin | Combined signal wiring | Automation modules |
| 6 Pin | Multiple control functions | Complex equipment interfaces |
The table above is only a general reference.
The same pin count can be used differently depending on the equipment design.
For example, a 4-pin GX12 connector may be used for:
- Sensor power and output
- Communication signal
- Control circuit
Therefore, the pin number alone does not define the connector application.
The wiring assignment must always be confirmed before assembly.
Why Should GX12 Pinout Be Confirmed Before Cable Assembly?
In many OEM projects, the connector supplier produces cable assemblies according to customer drawings.
If the pin definition is unclear, two connectors may physically fit together while the internal wiring is completely different.
This situation is especially important when replacing existing equipment cables.
A GX12 connector plug from one supplier may not have the same wiring sequence as another supplier unless the pin assignment is clearly defined.
A simple drawing or wiring table can prevent this problem.
What Information Should Be Included in a GX12 Wiring Drawing?
A practical GX12 wiring document normally includes:
| Item | Example Information |
| Connector model | GX12 series |
| Pin number | Pin 1 / Pin 2 / Pin 3 |
| Wire color | Red / Black / White |
| Signal definition | VCC / GND / Signal |
| Cable length | Required length |
| Connector side | Plug or socket |
For custom cable assemblies, this information helps avoid communication problems between equipment designers and manufacturers.

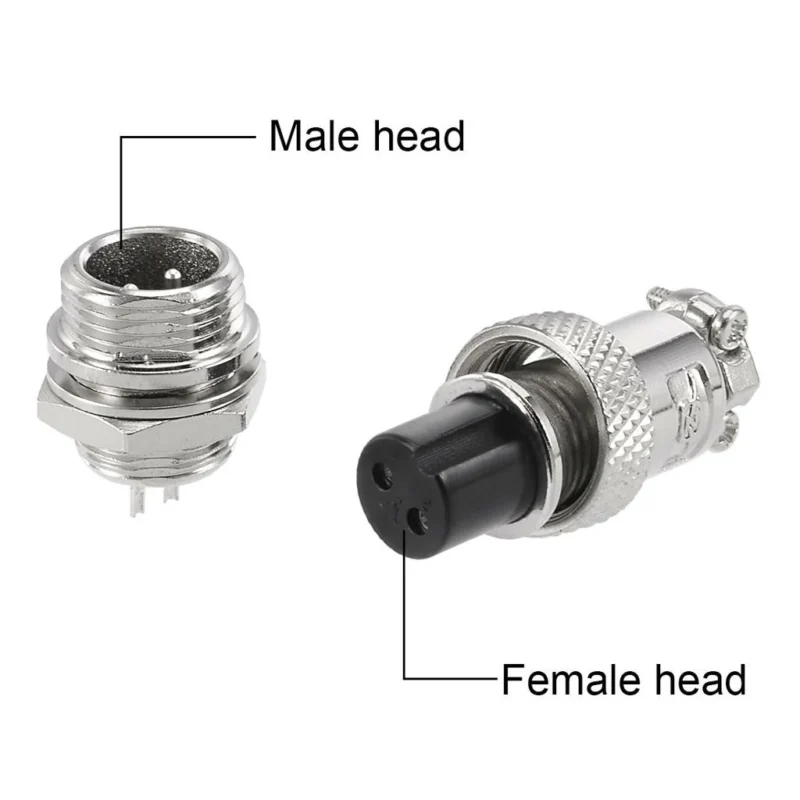

How Do GX12 Connector Plug and Socket Interfaces Work?
The GX12 connection system normally includes two matching parts:
- Connector plug
- Connector socket
The plug is commonly installed on the cable side, while the socket is usually installed on the equipment side.
This design allows the equipment module to be disconnected without removing the entire cable.
How Can Buyers Avoid GX12 Plug and Socket Matching Problems?
Before ordering, buyers should confirm:
- Plug or socket requirement
- Male or female contact style
- Mounting method
- Pin number
- Cable direction
A common ordering mistake is describing only:
“GX12 connector”
without specifying the complete configuration.
For example:
GX12 4-pin plug
and
GX12 4-pin socket
are different products and cannot replace each other.
GX12 Plug and Socket Selection Checklist
| Check Item | Confirm Before Purchase |
| Connector Type | Plug / Socket |
| Contact Style | Male / Female |
| Pin Number | 2-6 pin |
| Installation Method | Panel mount / Cable mount |
| Cable Direction | Straight / Right angle |
| Application | Power / Signal / Control |

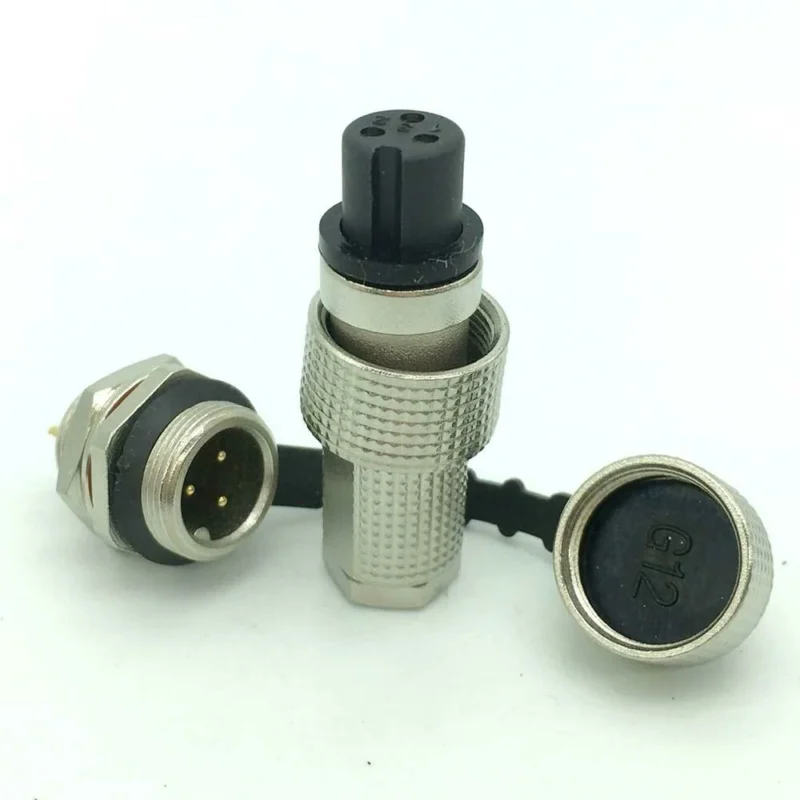

When Should You Choose a GX12 Aviation Connector?
The term gx12 aviation connector is commonly used in industrial markets to describe GX12 circular connectors with aviation-style locking structures.
Although the name includes “aviation”, these connectors are not limited to aircraft applications.
In many industrial environments, the term refers to a compact circular connector design with:
- Thread locking
- Removable connection
- Multiple pin options
- Compact installation
Common applications include:
- Industrial control equipment
- Testing instruments
- Sensors
- Communication devices
- Automation systems
Why Do Industrial Users Prefer GX12 Aviation Connector Designs?
The main reason is convenience during equipment operation.
A fixed cable connection may be acceptable during initial assembly, but maintenance becomes more difficult.
With a GX12 aviation connector structure, technicians can:
- Replace modules faster
- Disconnect equipment safely
- Reduce rewiring work
This is especially useful for equipment manufacturers producing multiple models with similar electrical interfaces.
For more information about aviation-style circular connectors:
What Should Be Considered When Designing GX12 Connector Wiring Systems?
A connector is only one part of the complete connection system.
During design, engineers should also consider:
- Cable flexibility
- Installation environment
- Operating temperature
- Mechanical movement
- Future maintenance requirements
A properly selected GX12 connector should work together with the cable and equipment structure.
For example, a connector designed for a compact sensor may not be suitable for a high-current motor application.
The final selection should always consider the complete electrical and mechanical condition.
Checking GX12 Connector Specifications Before Moving Into Production
A connector usually looks like a small component in a complete machine.
However, during mass production, this small part can influence assembly efficiency, maintenance time, and even the final user experience.
A GX12 connector selected during the prototype stage may work correctly in a laboratory environment. When the equipment moves into continuous operation, different conditions appear:
- Longer working hours
- Higher temperature inside the enclosure
- More frequent plugging and unplugging
- Different cable bending conditions
These changes are the reason why connector specifications need to be confirmed before production.
For a gx12 connector, the two specifications that are often discussed first are voltage and current capability.
But in actual projects, these values are only one part of the decision.
The cable structure, contact quality, and application environment also need to match.
How Should GX12 Voltage and Current Requirements Be Confirmed?
In many projects, customers provide a connector request together with a product drawing.
The information may include:
- Connector size
- Pin number
- Cable length
- Installation position
However, electrical details are sometimes missing.
For example:
A customer may request a 4-pin GX12 connector.
This does not immediately tell the supplier whether the connector is used for:
- Four signal lines
- Power plus signal
- Motor control
- Sensor connection
The same pin quantity can represent completely different applications.
Before confirming the final model, the supplier normally needs to understand the actual circuit requirement.
What Should Be Checked for GX12 Connector Voltage Rating?
The gx12 connector voltage rating should match the equipment working condition.
Important information includes:
- Normal operating voltage
- Maximum voltage fluctuation
- Insulation requirement
- Installation environment
A connector installed inside a protected electronic box may have different requirements from one installed in outdoor equipment.
The application environment affects the final selection.
Why Does GX12 Connector Current Rating Need Careful Evaluation?
Current is related to more than the connector itself.
A connector carrying power for several hours continuously experiences different conditions compared with a connector only transmitting a short signal.
The design team normally considers:
- Contact structure
- Cable specification
- Heat generation
- Continuous operating time
A suitable connector should work comfortably within the required range rather than operate close to its limit.
GX12 Electrical Confirmation Sheet
| Item | Customer Should Provide |
| Working Voltage | Actual equipment voltage |
| Working Current | Normal / maximum current |
| Pin Usage | Power, signal, ground |
| Cable Specification | Wire size and cable type |
| Operating Environment | Indoor / outdoor / temperature |
| Working Mode | Continuous or intermittent |
How Do GX12 Connectors Work in Real Industrial Applications?
The application environment often determines the connector choice.
A designer working on a compact instrument and a manufacturer building automation equipment may both select GX12 connectors, but the reasons can be different.
One may need to save installation space.
The other may need a reliable connector that can be disconnected during maintenance.
Why Are GX12 Connectors Used With Sensors?
Sensor systems are one of the common applications.
During equipment operation, sensors may need replacement because of:
- Calibration
- Maintenance
- Equipment upgrades
If the sensor cable is permanently connected, replacement becomes time-consuming.
A GX12 connector creates a removable connection point between the sensor and the main system.
This approach is common in:
- Detection equipment
- Measurement devices
- Monitoring systems
How Do GX12 Connectors Help Small Automation Equipment?
Small automation equipment often has limited panel space.
The designer needs to arrange several connection points without making the enclosure larger.
A compact industrial connector such as GX12 can help organize:
- External sensor cables
- Control wiring
- Communication connections
For equipment manufacturers producing multiple models, using a standard connector family also makes spare parts management easier.
Related reading:
Internal Link Anchor:
industrial connector selection guide
Why Are GX12 Aviation Connector Designs Popular in Industry?
The name gx12 aviation connector is widely used in the connector market.
Although the word “aviation” appears in the product name, these connectors are not limited to aircraft systems.
In industrial applications, customers usually choose them because of the connection structure:
- Circular housing
- Screw locking
- Detachable interface
- Multiple pin options
These characteristics make them suitable for equipment requiring repeated connection and disconnection.
What Should Be Checked Before Accepting a GX12 Connector Shipment?
For industrial buyers, receiving connectors is usually not the final step.
The connector still needs to enter the customer’s assembly process.
A small difference in:
- Pin arrangement
- Thread matching
- Cable processing
- Connector orientation
may affect production efficiency.
Before shipment acceptance, customers normally check whether the delivered products match the approved sample.
Which GX12 Electrical Tests Are Commonly Required?
Depending on the application, testing may include:
- Continuity test
- Contact resistance measurement
- Insulation test
- Withstand voltage test
For customers using GX12 connectors in production equipment, these checks help reduce unexpected assembly problems.
GX12 Incoming Inspection Checklist
| Inspection Content | Result |
| Model Confirmation | □ |
| Pin Configuration | □ |
| Connector Matching | □ |
| Appearance | □ |
| Cable Length | □ |
| Wiring Sequence | □ |
| Electrical Test | □ |
| Packaging | □ |
What Information Should Be Prepared for GX12 Custom Orders?
Many connector projects become slower because the initial requirement is incomplete.
A supplier receiving only:
“Need GX12 connector quotation”
still needs more information before recommending a solution.
For custom GX12 orders, customers usually provide:
- Connector model
- Number of pins
- Plug or socket requirement
- Cable type
- Cable length
- Quantity
- Application details
FAQ
Can GX12 connector be replaced with another model?
Please check the mounting size and contact arrangement first. A connector with the same appearance may not have the same wiring.
Is the GX12 connector plug available separately?
Yes. Plug and socket can be supplied separately or as a complete set according to the equipment requirement.
How can I confirm the GX12 connector pinout?
The pin arrangement should be checked from the drawing or sample. Different wiring definitions may exist even with the same pin number.
Can GX12 aviation connector be used in automation equipment?
Yes. Many compact machines and control devices use this type of circular connector where a removable connection is needed.
