A connector failure does not always look like a connector problem.
In an industrial machine, a shutdown may come from a loose terminal, a damaged cable, an incorrect pin connection, or a connector that cannot handle the working environment. Because connectors are usually hidden inside the equipment structure, small design mistakes may only appear after weeks or months of operation.
This is one reason why the circular connector is still widely used in industrial applications.
The circular design has been developed around practical requirements. It provides a compact connection interface while allowing different numbers of contacts inside the same connector family. Depending on the design, one connector can carry power, control signals, sensor signals, or multiple circuits at the same time.
Today, circular connectors can be found in:
- Automation machines
- Industrial controllers
- Measuring equipment
- Small production devices
- Motor and sensor systems
For equipment manufacturers, the connector is not an isolated component. It works together with the cable, mounting panel, electrical circuit, and maintenance method of the machine.
How Should You Select a Circular Connector for Industrial Equipment?

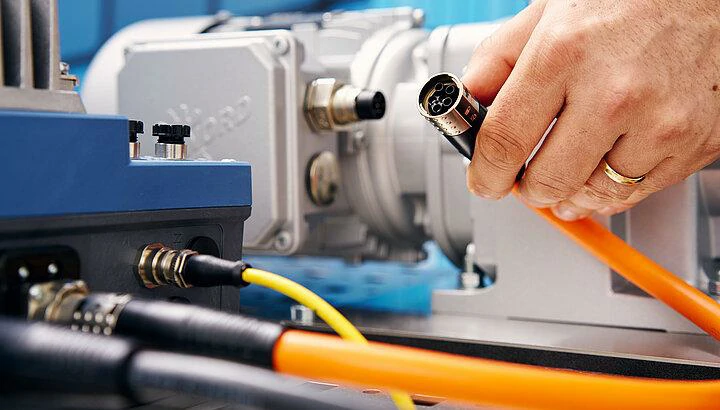

An industrial circular connector being connected to automation machinery. Circular connectors are widely used in motors, sensors, controllers, production equipment, and industrial systems requiring quick replacement and secure cable connections.
A connector model number alone does not tell the whole story.
Two connectors may have the same outer diameter but completely different internal designs. One may be designed for simple power transmission, while another may be used for signal control.
Before confirming a circular connector, the actual connection requirement needs to be clear.
Pin Count Is Usually the First Specification to Confirm
The number of contacts inside a connector directly affects how the equipment can be wired.
Common circular connector configurations include:
| Pin Number | Common Use |
| 2 Pin | Basic power connection |
| 3 Pin | Power or simple control |
| 4 Pin | Sensor and signal connection |
| 5–6 Pin | Combined signal applications |
| 7–10 Pin | Multiple control circuits |
A frequent mistake in replacement projects is assuming that connectors with the same appearance have the same pin assignment.
The outside shape may look identical, but the internal wiring arrangement can be different.
Before replacing an existing connector, always confirm:
- Pin position
- Contact arrangement
- Male/female structure
- Cable connection method
Mechanical Size Can Affect the Entire Equipment Layout
Electrical specifications are only part of connector selection.
During equipment assembly, the connector also needs to match the physical structure.
These details are especially important for compact industrial machines.
A connector that works well on a test bench may become difficult to install after it is integrated into the final equipment.
Cable Compatibility Should Be Checked Together With the Connector
A circular connector and its cable should be considered as one assembly.
The cable affects:
- Installation flexibility
- Current carrying capability
- Mechanical stress
- Long-term reliability
For example, a moving machine requires a cable structure that can withstand repeated movement. A fixed control box may focus more on stable installation and protection.
Similar principles are also used when designing an RF cable assembly, where connector selection and cable performance must be matched to achieve reliable transmission.
How Do Aviation Connectors Fit Into Circular Connector Applications?
In many industrial markets, the term aviation connector refers to circular connectors with a threaded locking structure.
Although the name comes from aerospace-related applications, these connectors are now widely used in industrial equipment.
What Should Be Confirmed Before Purchasing an Aviation Connector?

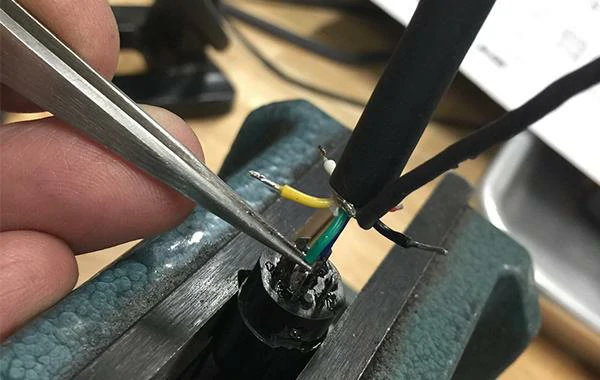

Close-up view of a multi-pin circular connector being soldered during an industrial cable assembly process. Correct wire positioning, solder quality, insulation, and cable strain relief help reduce loose connections and wiring failures.
Before placing an order, several details should be provided.
Connector Size
Different circular connector series may look similar but have different mounting dimensions.
Confirm:
- Outer diameter
- Mounting hole size
- Connector length

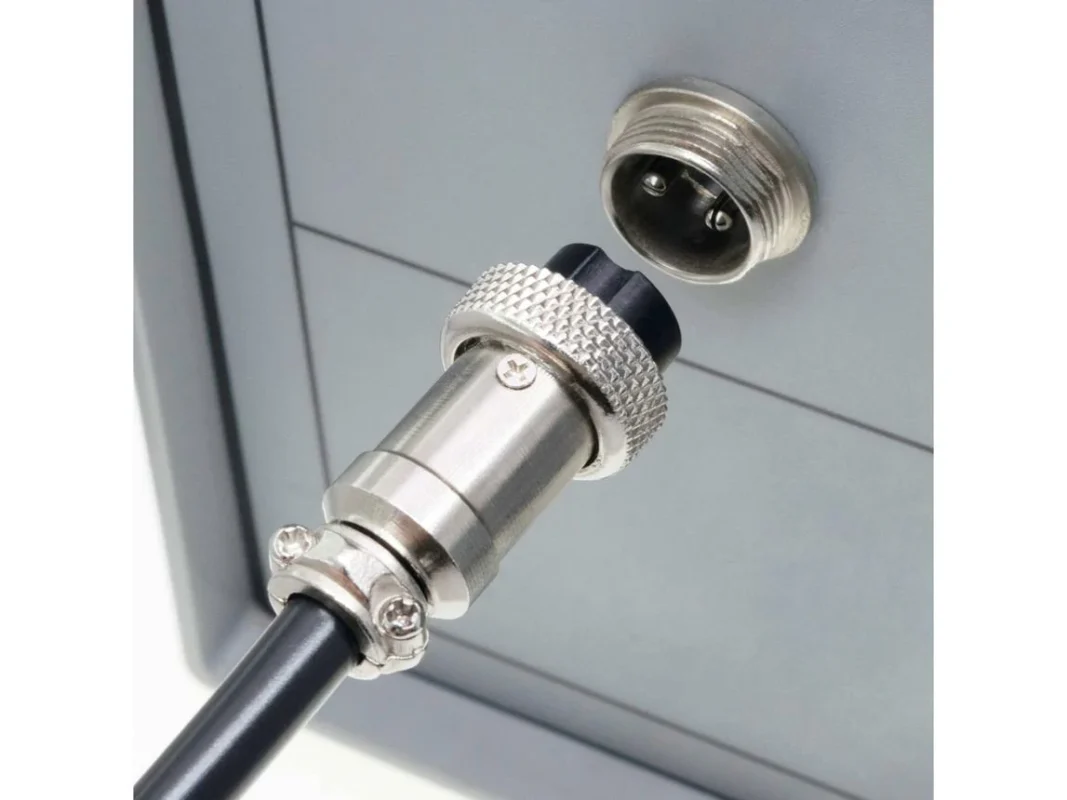

GX16 Connector Guide for Industrial Equipment Selection
GX16 connectors are often seen in equipment where space is limited but a detachable connection is still required.
A fixed cable can work well during the first assembly stage. The problem usually appears later. When a machine needs repair, a sensor needs replacement, or a control module needs to be moved, cutting and reconnecting wires becomes time-consuming.
This is one of the reasons GX16 connectors remain popular in small industrial equipment.
The connector provides a simple solution:
A cable can be removed without changing the internal wiring of the machine.
A replacement part can be installed without rebuilding the whole connection system.
For many equipment manufacturers, this small advantage saves considerable time during maintenance.
Why Do Equipment Designers Choose GX16 Connector?
In compact equipment design, installation space is often the first limitation.
A connector may need to fit behind a panel, inside a small enclosure, or beside other electrical components. Large connectors can provide more functions, but they may increase the size of the entire product.
GX16 connectors are commonly selected because the overall structure is relatively compact.
However, the connector size should not be the only consideration.
The electrical requirement must also be checked.
A small connector carrying excessive current may create reliability problems even if the mechanical installation is correct.
How Should GX16 Pin Number Be Confirmed Before Purchase?
The pin number is one of the details that should be confirmed early.
A common situation in the connector market is that customers provide only a picture.
The connector looks similar, the diameter appears correct, and the mounting thread seems identical.
But the internal wiring may not match.
For GX16 connectors, buyers should confirm:
- Number of contacts
- Contact arrangement
- Male or female type
- Cable installation method
This is especially important for replacement orders.
A machine that has been running for several years may use a connector that is no longer easy to identify. In this situation, checking the actual wiring is safer than selecting only by appearance.

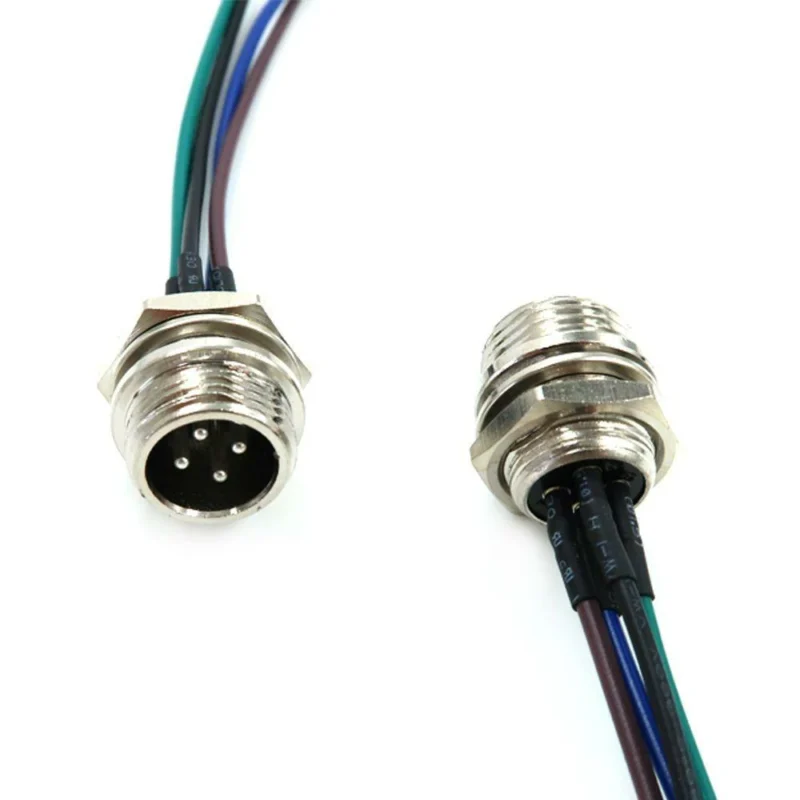

GX16 Pin Count Reference
| Model | Common Usage |
| GX16-2 | Simple power connection |
| GX16-3 | Power and basic control |
| GX16-4 | Sensors and signal lines |
| GX16-5/GX16-6 | Combined control wiring |
| GX16-7/GX16-8 | Multi-circuit equipment |
| GX16-9/GX16-10 | Complex signal systems |
The correct pin count depends on the circuit design.
A higher pin count does not automatically mean better performance. Extra contacts may increase wiring difficulty and production time.
What Problems Can Appear With GX16 Connector Pinout?
The gx16 connector pinout is often the part that causes unexpected problems.
Two connectors may share the same external size but have different internal layouts.
During installation, several mistakes can happen:
- Viewing the pin side from the wrong direction
- Mixing front view and rear view numbering
- Connecting wires according to color only
- Ignoring the original equipment diagram
For small devices, a wrong connection may only stop one function.
For industrial equipment, it may affect the entire control system.
Before assembly, it is better to prepare a simple pin definition:
| Pin Number | Function |
| Pin 1 | Power / Signal definition |
| Pin 2 | Power / Signal definition |
| Pin 3 | Ground or control |
| Other pins | Confirm according to application |
The exact definition should always follow the equipment circuit design.
Why Does GX16 Connector Wiring Need Careful Assembly?
The gx16 connector wiring process is usually completed by soldering.
Compared with crimp terminals, solder termination is simple and suitable for many small-batch applications..
Insufficient Solder
A weak solder joint may become unstable after vibration.
Incorrect Wire Arrangement
Even when the connector is assembled correctly, the equipment may fail if the wire sequence is wrong.
During production, many manufacturers mark the cable side before soldering to reduce human error.
For customized cable products, the same principle applies. Whether it is a GX16 cable or an RF cable assembly, the connector termination process is an important part of product reliability.
When Is GX16 Waterproof Connector Required?
Not every application needs waterproof protection.
A connector installed inside a control cabinet usually faces very different conditions compared with equipment installed outdoors.
A gx16 waterproof connector is generally considered when the equipment may encounter:
- Water splash
- Humidity
- Dust
- Outdoor installation
- Frequent cleaning
The waterproof structure usually involves additional sealing around the connector body and cable entry.
However, waterproof design also requires matching the cable size.
If the cable diameter does not match the sealing structure, the protection level may not achieve the expected result.
What Should Be Checked Before Selecting a Waterproof GX16 Connector?
Before confirming a waterproof GX16 connector, the following information should be clear:
| Item | Confirmation |
| Working location | Indoor, outdoor, or exposed environment |
| Cable diameter | Match sealing requirement |
| Connection frequency | Consider connector durability |
| Temperature condition | Confirm material suitability |
| Installation method | Panel or cable connection |
A waterproof connector is not selected only because it has a sealed appearance.
The actual working environment determines whether the design is suitable.
GX16 Connector in Industrial Connector Applications
GX16 belongs to the wider industrial connector category.
Different equipment may require different connector structures.
For example:
- Compact control equipment may prefer GX16 because of installation space.
- Outdoor equipment may require stronger sealing.
Circular Connector Selection Mistakes That Often Appear in Industrial Projects
Many connector issues are not caused by the connector itself.
During actual projects, problems often happen because the original requirement was incomplete.
A customer may confirm the connector size but forget to confirm the pin arrangement.
A machine builder may confirm the electrical function but ignore the cable bending space.
A replacement order may look identical from the outside but fail after installation because the internal wiring is different.
These situations are common in industrial equipment.
A circular connector is a small component, but it connects several important parts together. Any mismatch between connector, cable, and equipment design may affect the final operation.
For this reason, connector selection should be considered during equipment development rather than after the machine has already been completed.
Why Do Connector Specifications Need Confirmation Before Production?
In standard products, ordering can be simple.
For example:
A customer knows the exact model, quantity, and application.
But industrial projects are often different.
The same connector series may have different versions:
- Different pin numbers
- Different cable sizes
- Different mounting methods
- Different environmental requirements
A request such as:
“Need GX16 connector with cable”
does not contain enough information for production.
These details affect both quotation and production.
Circular Connector Order Confirmation Sheet
| Required Information | Example |
| Connector series | GX16 / aviation connector |
| Contact quantity | 2 pin, 4 pin, 6 pin, etc. |
| Connector direction | Male / female |
| Cable requirement | Length, diameter, specification |
| Installation method | Panel mount or cable mount |
| Working condition | Indoor, outdoor, vibration |
| Additional requirement | Waterproof, testing, labeling |
For OEM customers, preparing these details before inquiry usually saves several rounds of technical communication.
How Should Replacement Projects Check Existing Connectors?
Replacement projects are different from new equipment design.
The machine already exists.
The connector location is fixed.
The cable route is already arranged.
At this stage, choosing a connector only by appearance can create problems.
Before replacement, it is better to check:
- Original connector model
- Pin arrangement
- Contact direction
- Cable connection method
- Mechanical dimensions
Photos are helpful, but they are not always enough.
A connector with the same shell size may have a completely different internal definition.
This is especially important for gx16 connector pinout confirmation.
Why Does GX16 Connector Wiring Need More Attention During Assembly?
Poor solder quality
A weak solder joint may create unstable contact after vibration or long-term operation.
Insufficient cable protection
The cable side experiences mechanical force during installation and use.
For this reason, production teams usually check the cable fixing position and solder condition before shipment.
The same idea applies to other customized cable products. In an RF cable assembly, the connection point is also one of the areas that directly affects product reliability.
When Is a Waterproof GX16 Connector a Better Choice?
A waterproof connector is not automatically better for every application.
The selection depends on where the equipment will work.
Indoor control equipment may only require a standard connector.
In these situations, a gx16 waterproof connector can provide additional protection.
However, waterproof performance depends on the whole structure:
- Connector sealing
- Cable diameter matching
- Installation method
- Equipment design
A waterproof connector with an unsuitable cable size may still create sealing problems.
What Should Be Checked During Industrial Connector Inspection?
For industrial customers, quality inspection is usually not limited to appearance.
A connector should be checked from several aspects.
Mechanical Check
Confirm:
- Connector matching
- Locking operation
- Housing condition
Electrical Check
Confirm:
- Contact condition
- Electrical continuity
- Insulation performance
Assembly Check
Confirm:
- Cable connection
- Wire sequence
- Solder quality
Industrial Connector Inspection Record
| Inspection Item | Result |
| Product model | Confirmed |
| Pin arrangement | Checked |
| Housing appearance | Passed |
| Mechanical connection | Passed |
| Electrical continuity | Tested |
| Cable assembly | Verified |
| Packaging condition | Confirmed |
This type of record is commonly used during supplier evaluation and incoming quality inspection.
Where Are Circular Connectors Used in Industrial Equipment?
Different industries use circular connectors for different reasons.
In automation equipment, the main requirement is usually quick replacement.
In testing equipment, the focus is often stable connection during repeated operation.
In compact devices, installation space becomes the main consideration.
In outdoor systems, environmental protection becomes more important.
The connector selection changes with the equipment.
There is no single connector that fits every application.
How Can Buyers Reduce Connector Selection Errors?
Most problems can be avoided before production starts.
A practical approach is:
First, confirm the equipment requirement.
Then confirm the connector structure.
Finally, confirm cable and environmental conditions.
For custom projects, providing a drawing or sample is often more effective than describing the product only by name.
This allows the supplier to check:
- Mechanical compatibility
- Wiring requirement
- Assembly method
before production begins.
FAQ
What is the main advantage of a circular connector?
A circular connector provides a detachable connection with compact structure and stable mechanical locking.
Are aviation connectors only used in aircraft?
No. Aviation-style connectors are widely used in industrial equipment, automation systems, and testing devices.
How do I confirm GX16 connector wiring?
The safest method is checking the wiring diagram, pin definition, or original equipment connection.
Can GX16 connectors be used outdoors?
Yes, when the connector protection design matches the environmental requirement.
